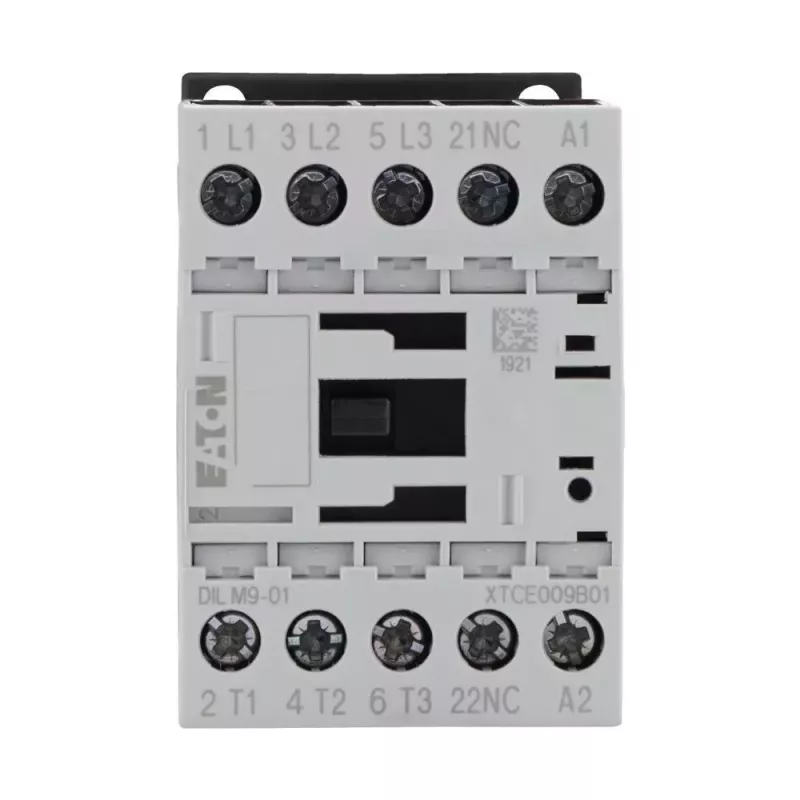

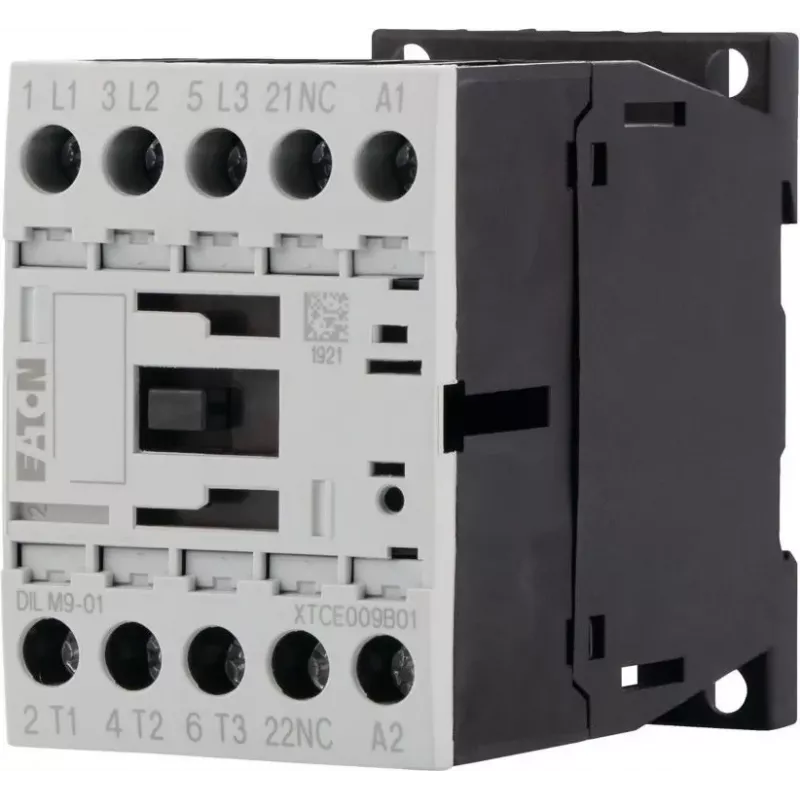

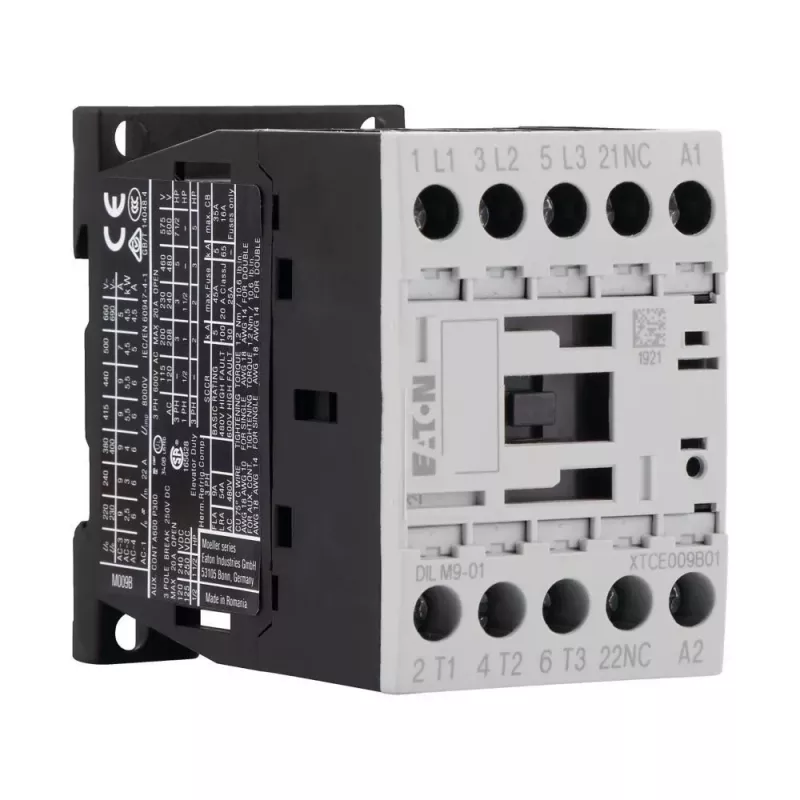

Eaton DILM9-01 relais, 3-polig, 9 A, 24 V AC spoel 276729

The Eaton DILM9-01 is a 3-pole contactor for motor control and resistive loads, offering reliable switching with a 24 V AC coil at 50/60 Hz. Its compact design and screw terminals make it suitable for industrial applications.

Advantages

High mechanical and electrical durability, wide operating temperature range, and compliance with international standards ensure dependable performance.

Suitable for

• Motor control up to 9 A (AC-3, 400 V)
• Resistive loads up to 22 A (AC-1, 400 V)
• Industrial automation and control panels

Key specifications

• Rated operational current: 9 A (AC-3, 400 V)
• Coil voltage: 24 V AC, 50/60 Hz
• Auxiliary contacts: 1 NC
• Mounting: DIN rail or screw
• Degree of protection: IP20

Recommendations

For reliable switching in motor control circuits, pair with appropriate overload relays and short-circuit protection devices.
