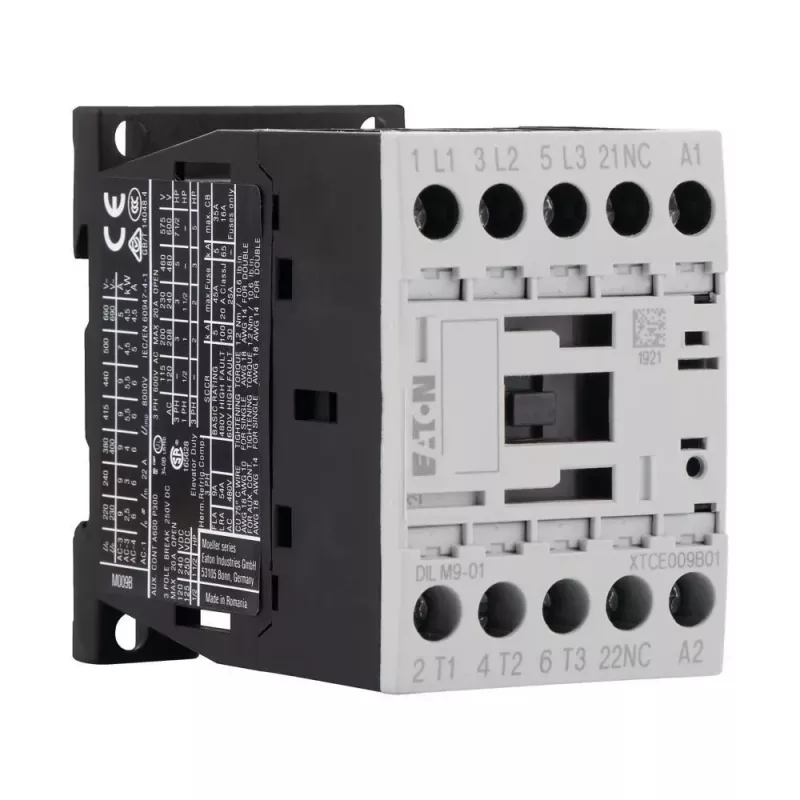

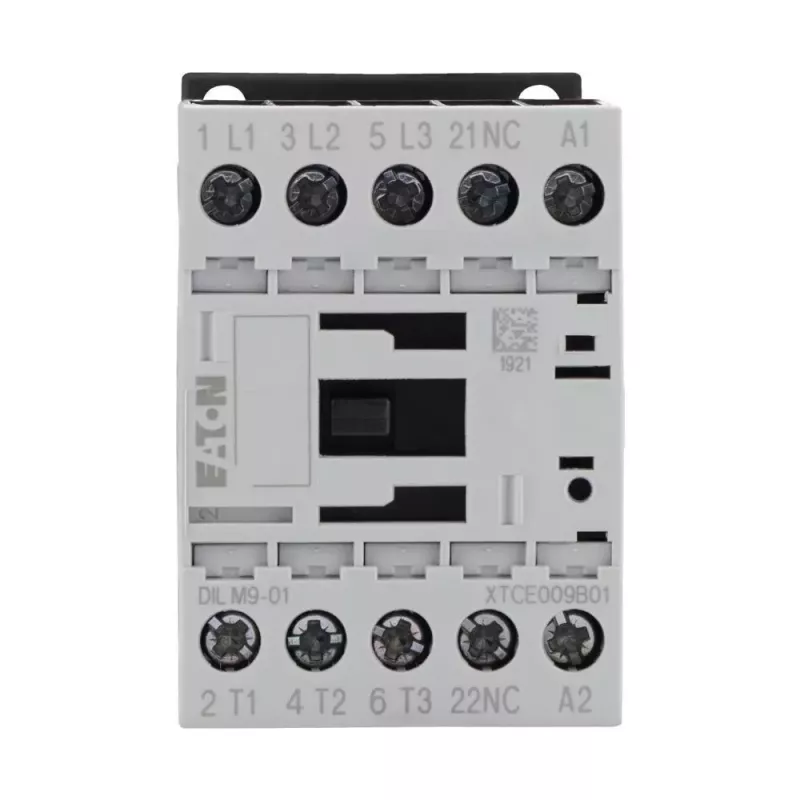

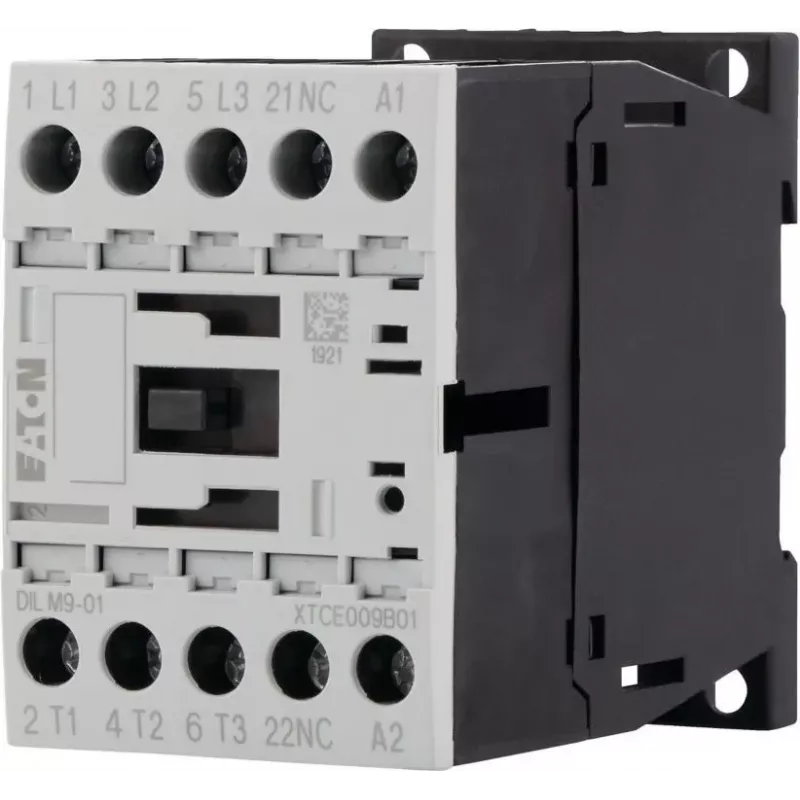

Eaton DILM9-01 vermogenscontactor, 3-polig, 9 A, 4 kW, 230 V AC spoel 276733

Power contactor for switching 3-phase AC motors up to 4 kW at 400 V. The DILM9-01 delivers reliable control with a 230 V AC coil and one normally closed auxiliary contact, making it a compact solution for industrial motor starting.

Advantages

Rated for 9 A (AC-3) and 22 A (AC-1), this contactor handles frequent switching with a mechanical life of 10 million operations. Screw terminals and DIN rail mounting simplify installation in control panels.

Suitable for

• Motor starting and stopping in industrial machinery
• Heating and lighting load control
• HVAC systems and pump control

Key specifications

• 3-pole, 1 NC auxiliary contact
• Coil: 230 V AC, 50/60 Hz
• Rated operational current: 9 A (AC-3, 400 V)
• Rated operational power: 4 kW (AC-3, 400 V)
• Rated insulation voltage: 690 V
• Mounting: DIN rail or screw

Recommendations

For reliable motor control in compact spaces, the DILM9-01 offers proven performance with easy wiring and long service life.
