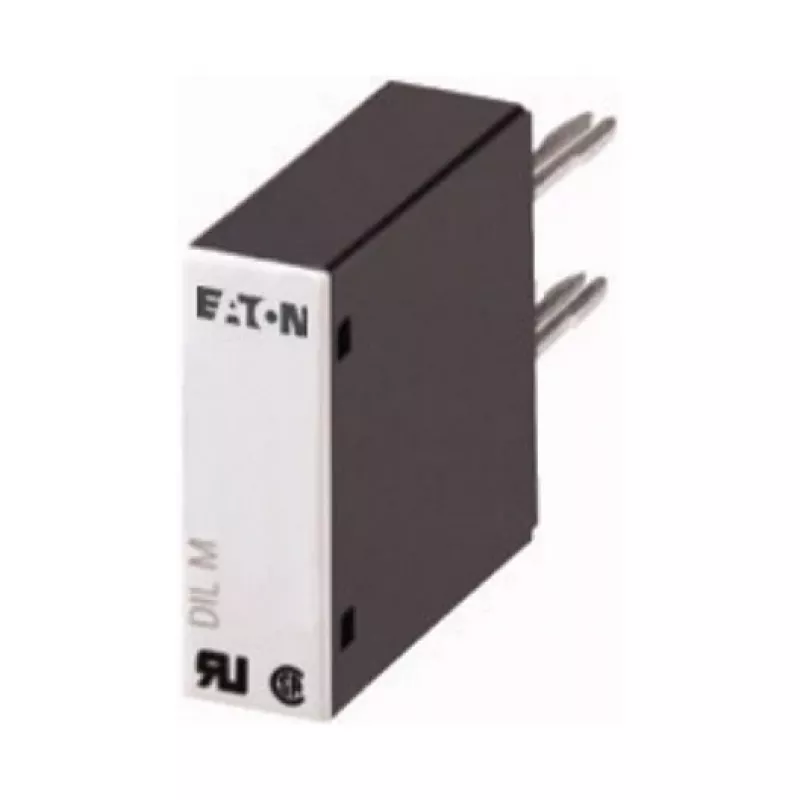

EATON DILM95-XSPR240 RC suppressor 110-240V AC/DC voor DILM40-95 contactors

In industrial control panels where contactors switch inductive loads like motors or solenoids, voltage spikes and electromagnetic interference can disrupt sensitive electronics and accelerate contact wear. The EATON DILM95-XSPR240 RC suppressor module plugs directly onto Eaton DILM40 to DILM95 contactors, providing a resistor-capacitor network that absorbs and dampens these transients. This ensures cleaner switching, reduces EMI emissions, and extends the life of both the contactor coil and nearby control equipment. Designed for AC or DC coil voltages from 110 to 240 V, it is a compact, maintenance-free solution for reliable motor control and automation systems.

Key specifications

• Suppressor type: RC element (resistor-capacitor network)
• Voltage range: 110–240 V AC / 110–240 V DC
• Compatible contactors: Eaton DILM40, DILM50, DILM65, DILM72, DILM80, DILM95
• Mounting: Direct plug-in onto contactor coil terminals
• Function: Surge suppression and interference suppression
• Protection: Overvoltage protection
• Operating temperature: -25 °C to +60 °C
• Standards: IEC/EN 60947
• Application: Industrial control, motor control
• Product series: DILM-XSPR

Why choose it

The DILM95-XSPR240 is engineered specifically for Eaton DILM contactors, guaranteeing a perfect mechanical and electrical fit. Its RC network effectively clamps voltage spikes and filters high-frequency noise, which reduces arcing and electromagnetic interference. This not only improves the reliability of your control system but also helps meet EMC requirements. The module is easy to install—simply plug it onto the contactor—and requires no additional wiring or configuration.

Ideal use cases

• Motor control circuits with frequent switching
• Industrial automation and PLC systems
• HVAC and pumping applications
• Any application using Eaton DILM40–DILM95 contactors with 110–240 V coils

Good to know

This suppressor is a genuine Eaton accessory, ensuring compatibility and performance. It is designed for use in industrial environments with ambient temperatures from -25 °C to +60 °C. The module is compact and does not require additional space beyond the contactor footprint. For optimal surge suppression, install one module per contactor coil. Refer to the Eaton catalog for detailed technical data and installation instructions.
