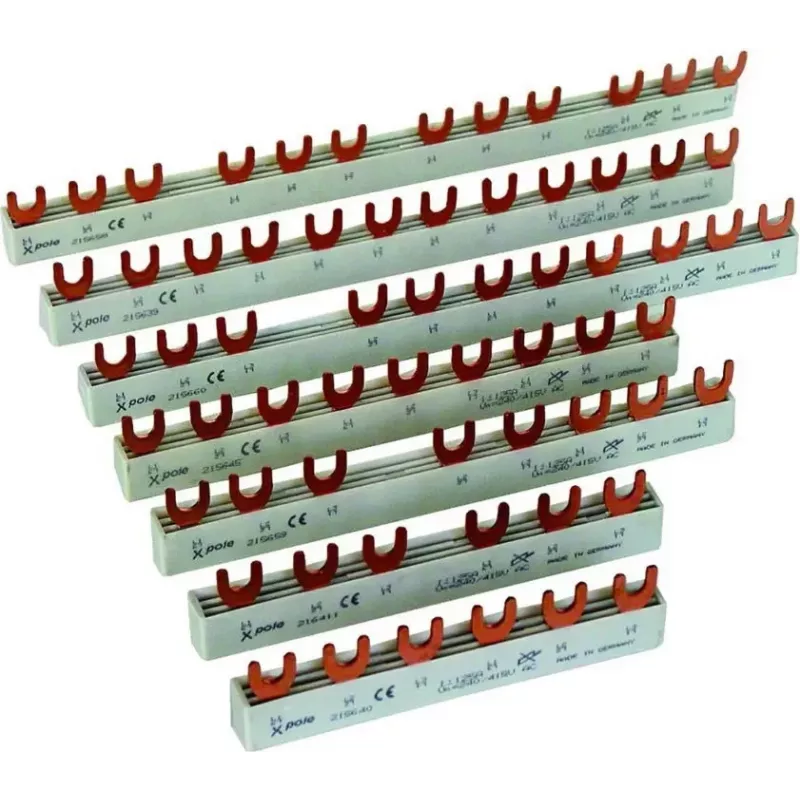

Eaton EVG-16/3PHAS/6MODUL 3-fasen verzamelrail 16 A 6 modules pen-type 291470

The Eaton EVG-16/3PHAS/6MODUL is a 3-phase busbar engineered for compact power distribution in modular installations. Its pin-type connection and fully insulated design simplify linking multiple DIN rail devices while reducing wiring time and error risk.

Highlights

• 3-phase, 3-pole configuration for balanced distribution
• Rated current 16 A, rated voltage 400 V AC
• 10 mm² copper conductors for reliable conductivity
• Fully insulated for safe handling
• 6-module width (105 mm pitch) fits standard distribution boards

In daily use

Installers benefit from the busbar's compatibility with Eaton xPole series and similar modular devices. The pin-type connection allows quick, secure attachment without additional tools, while the grey insulation provides clear phase identification and protection against accidental contact.

Full specifications

• Product type: Phase busbar
• Connection type: Pin type
• Number of phases: 3
• Number of poles: 3
• Number of modules: 6
• Rated current: 16 A
• Rated voltage: 400 V AC
• Conductor cross-section: 10 mm²
• Module pitch: 17.5 mm
• Insulation: Fully insulated
• Conductor material: Copper
• Mounting type: DIN rail mounted devices
• Compatibility: Eaton xPole series and similar modular devices
• Colour: Grey

Final note

A dependable choice for tidy, efficient power distribution in residential and commercial electrical panels.
