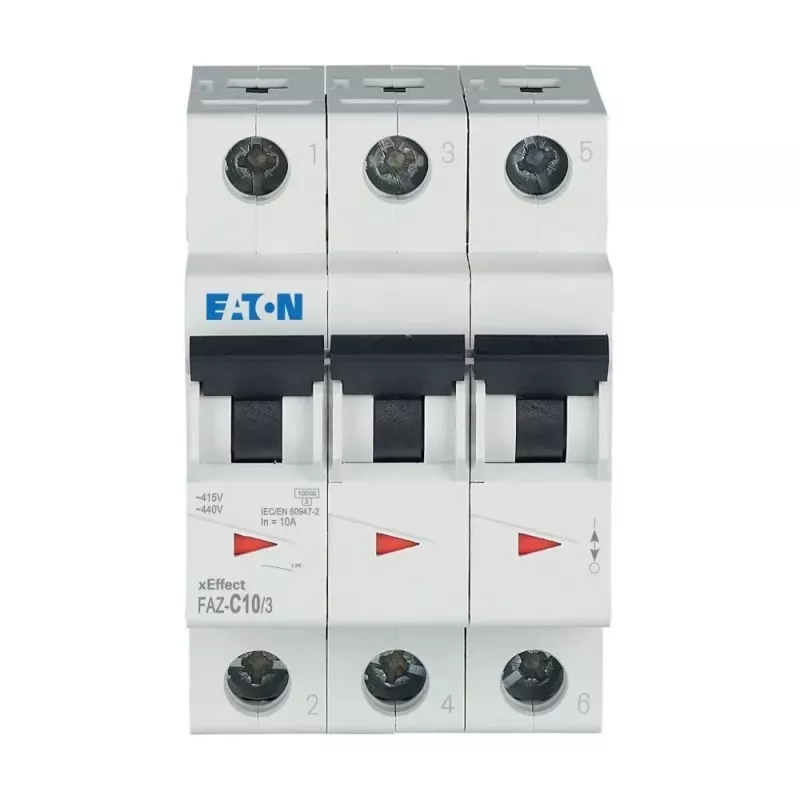

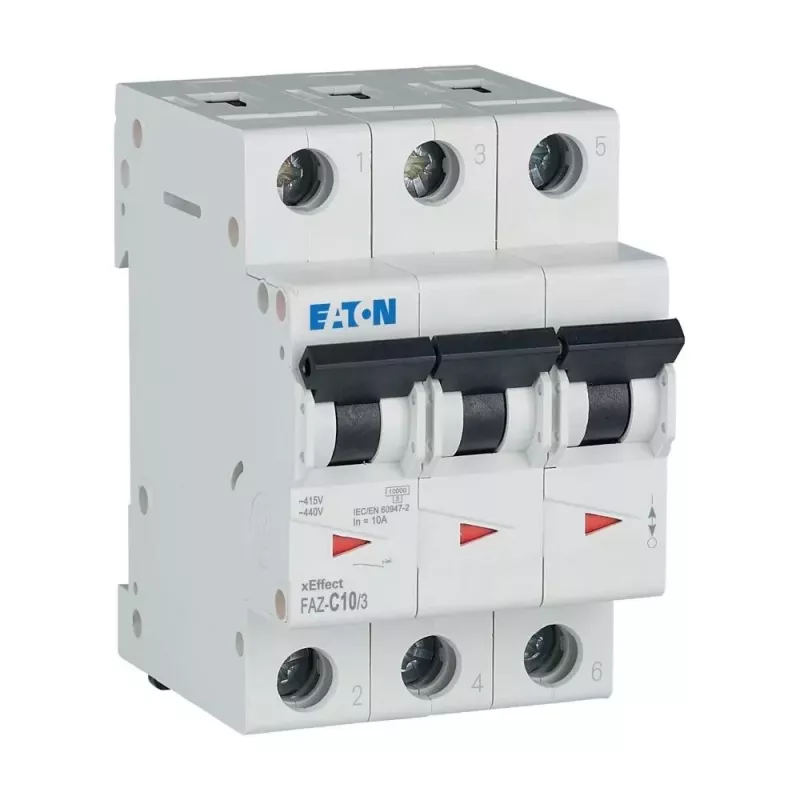

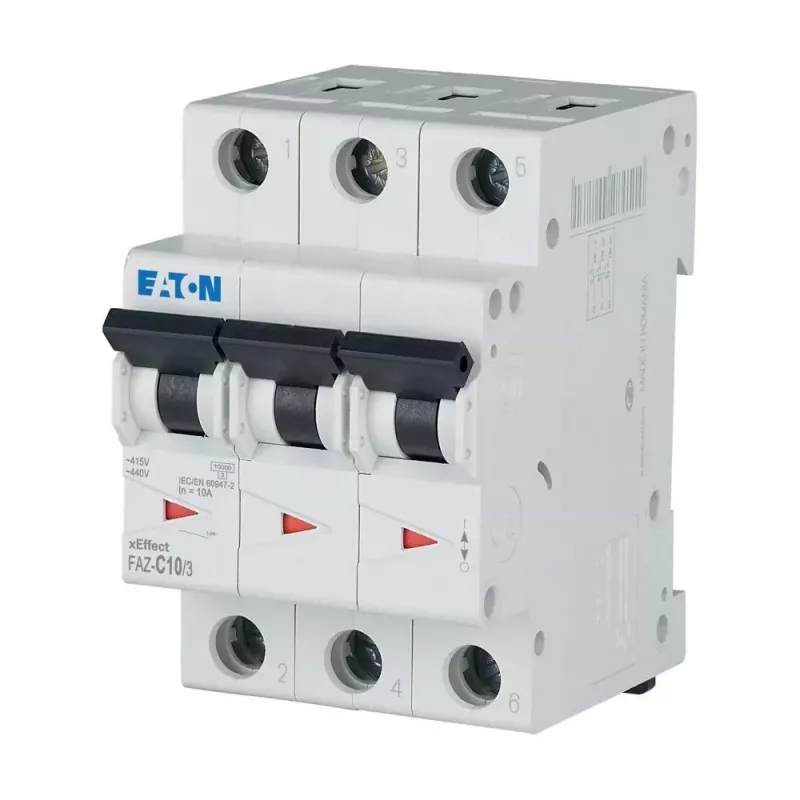

Eaton FAZ-C10/3 installatieautomaat type C 10 A 3-polig 278869

Electricians and panel builders use the Eaton FAZ-C10/3 miniature circuit breaker to protect three-phase circuits in industrial control panels and building installations. This 3-pole MCB with Type C tripping characteristic is rated for 10 A and 230/400 V AC, providing reliable overcurrent and short-circuit protection.

Key specifications

• Number of poles: 3
• Tripping characteristic: Type C
• Rated current: 10 A
• Rated voltage: 230/400 V AC
• Rated short-circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal type: screw terminals
• Terminal capacity: 1-25 mm²
• Degree of protection: IP20
• Ambient operating temperature: -25 to +75 °C
• Electrical life: >10,000 operations
• Mechanical life: >20,000 operations

Why choose it

The FAZ-C10/3 offers dependable protection for motors, transformers, and other inductive loads thanks to its Type C characteristic, which tolerates moderate inrush currents while tripping quickly on short circuits. Its compact DIN rail mounting and screw terminals simplify installation in distribution boards.

Ideal use cases

• Protecting three-phase motors and control circuits
• Branch circuit protection in industrial panels
• Building electrical installations requiring 10 A MCBs

Good to know

The breaker features a red/green contact position indicator for easy status identification. It complies with IEC/EN 60898-1 and is suitable for use in overvoltage category III and pollution degree 2 environments.
