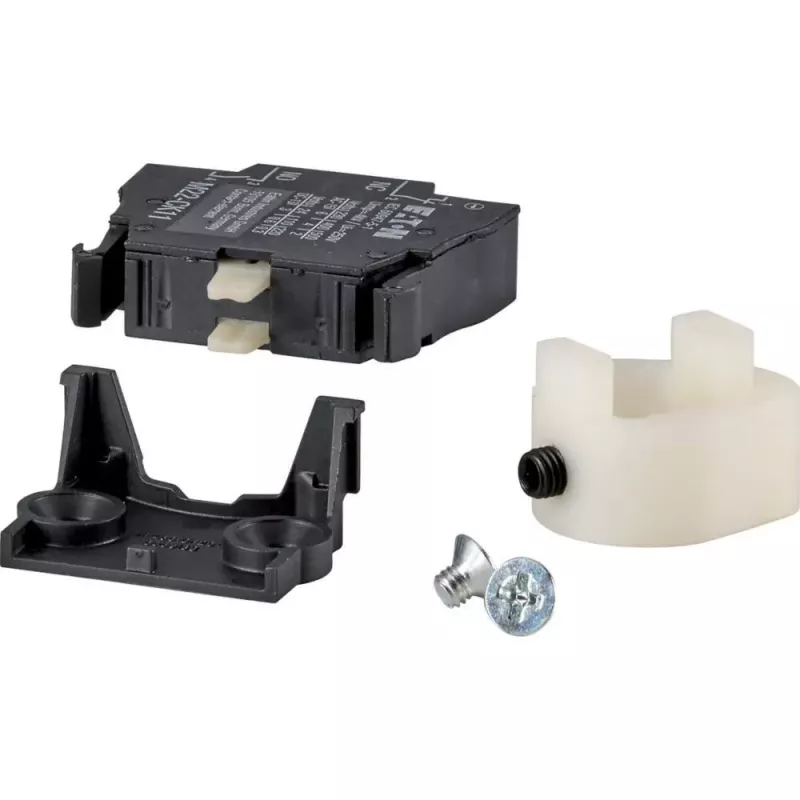

Eaton hulpcontact 1NO+1NC voor DILM contactoren, frontmontage, schroefklemmen 6101137

Control engineers and panel builders often need to expand the signalling capability of Eaton DILM contactors and DILMP motor-protective circuit-breakers. The Eaton 6101137 auxiliary contact block provides one normally open and one normally closed instantaneous contact, allowing reliable status feedback and interlocking in industrial control circuits.

Key specifications

• Contact configuration: 1 NO + 1 NC
• Mounting: front mounting
• Compatibility: Eaton DILM7 to DILM38 contactors, DILMP motor-protective circuit-breakers
• Number of poles: 2-pole
• Terminal type: screw terminals
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 10 A
• Rated operational current (AC-15, 400 V): 6 A
• Rated operational current (DC-13, 220 V): 1 A
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947-5-1
• Type of auxiliary contact: instantaneous
• Product series: DILM

Why choose it

This auxiliary contact is engineered for seamless integration with Eaton's DILM range, ensuring mechanical compatibility and reliable electrical performance. Its screw terminals provide secure wiring in demanding industrial environments.

Ideal use cases

• Status indication for contactor switching states
• Control circuit interlocking
• Motor control centres
• Industrial automation panels

Good to know

The contact block mounts directly on the front of compatible devices without additional accessories. It operates within a wide temperature range, making it suitable for various industrial settings.
