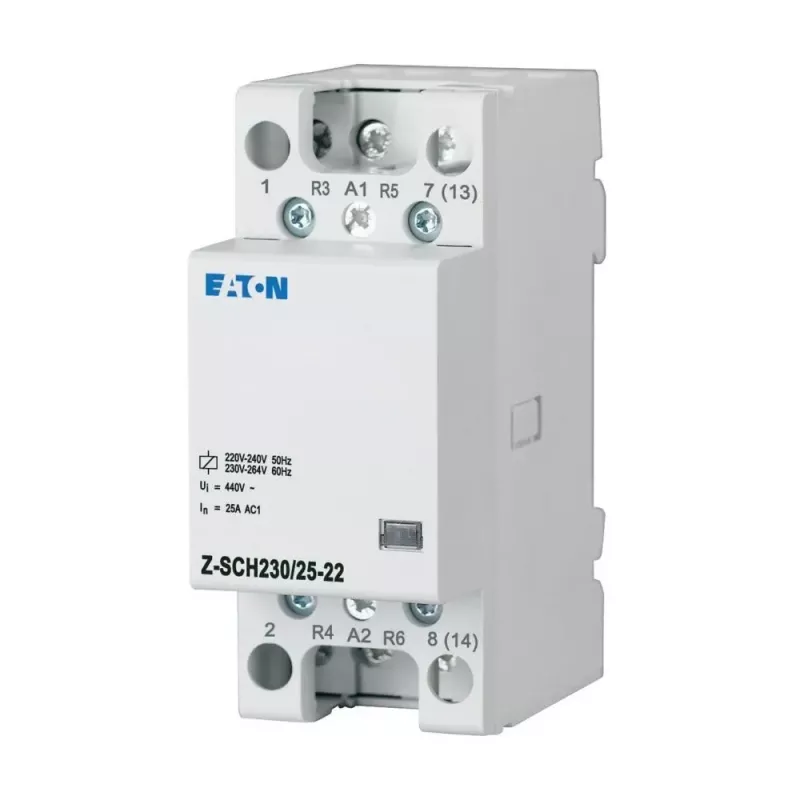

Eaton installatiecontactor FUG Z-SCH230/25-22 230V AC 25A 2NO 2NC DIN-rail 248849

Switching electrical loads in residential and commercial installations demands a contactor that combines compact size with dependable performance. The Eaton FUG Z-SCH230/25-22 installation contactor provides a 230 V AC coil and a 25 A rated operational current, making it suitable for controlling lighting, heating, and motor circuits where space on the DIN rail is limited.

Who is it for

Electricians and panel builders who need a modular contactor for distribution boards and control cabinets. Its 2 TE width fits standard 35 mm DIN rails, and the screw terminals allow secure wiring with common tools.

Main features

• 230 V AC coil voltage for direct control from standard mains circuits
• 25 A rated operational current (AC-1) for switching resistive and slightly inductive loads
• 2 normally open (NO) and 2 normally closed (NC) contacts for flexible circuit design
• Compact 2 TE (35 mm) DIN rail housing saves space in distribution boards
• Screw terminals provide reliable, maintenance-free connections

Specifications

• Coil voltage: 230 V AC
• Rated operational current (AC-1): 25 A
• Number of poles: 4 (2 NO + 2 NC)
• Rated insulation voltage (Ui): 440 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Mounting type: DIN rail
• Modular spacing: 2 TE (35 mm)
• Degree of protection: IP20 (terminals), IP40 (device)
• Ambient operating temperature: -25 to +50 °C
• Connection type: Screw terminals
• Frequency: 50/60 Hz
• Electrical life (AC-1): 100,000 operations
• Mechanical life: 1,000,000 operations
• Power consumption (pull-in): 10 VA
• Power consumption (holding): 3.5 VA

Tips

When selecting a contactor, verify that the coil voltage matches the control circuit and that the contact rating exceeds the load current. For inductive loads, consider the AC-3 rating or use a contactor with a higher current rating.
