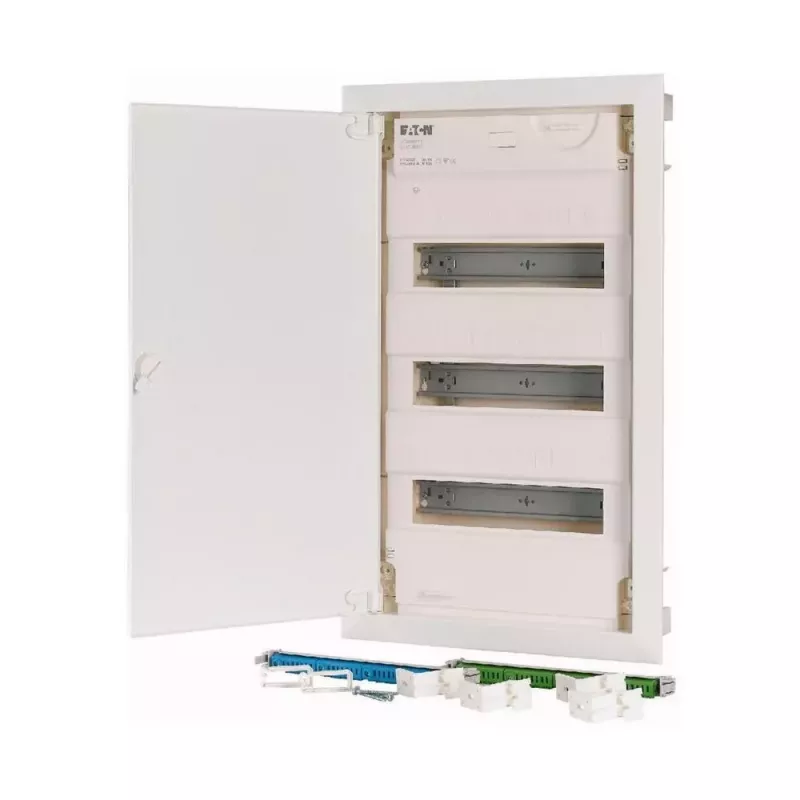

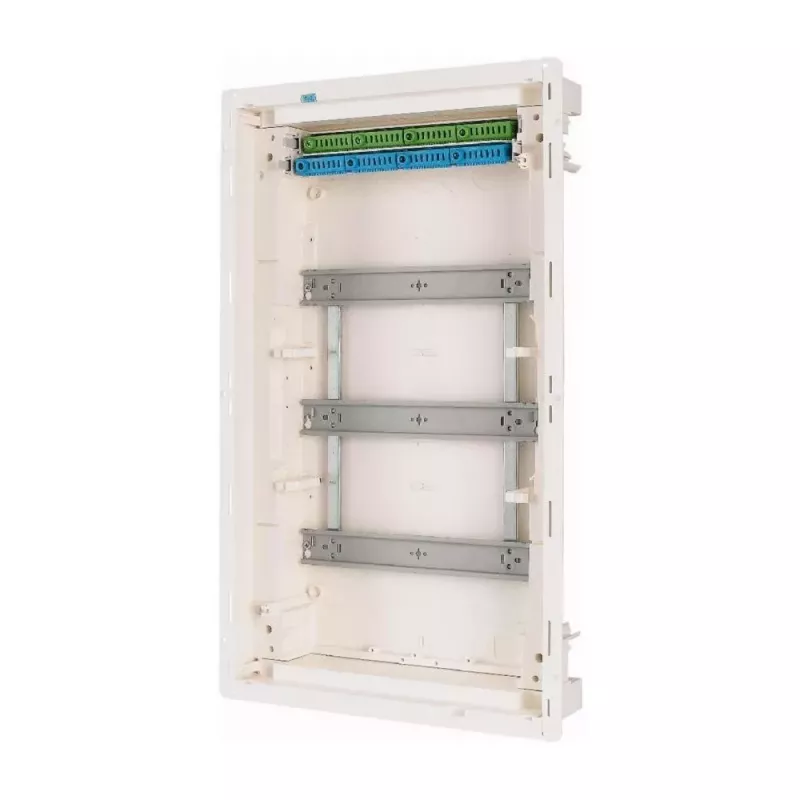

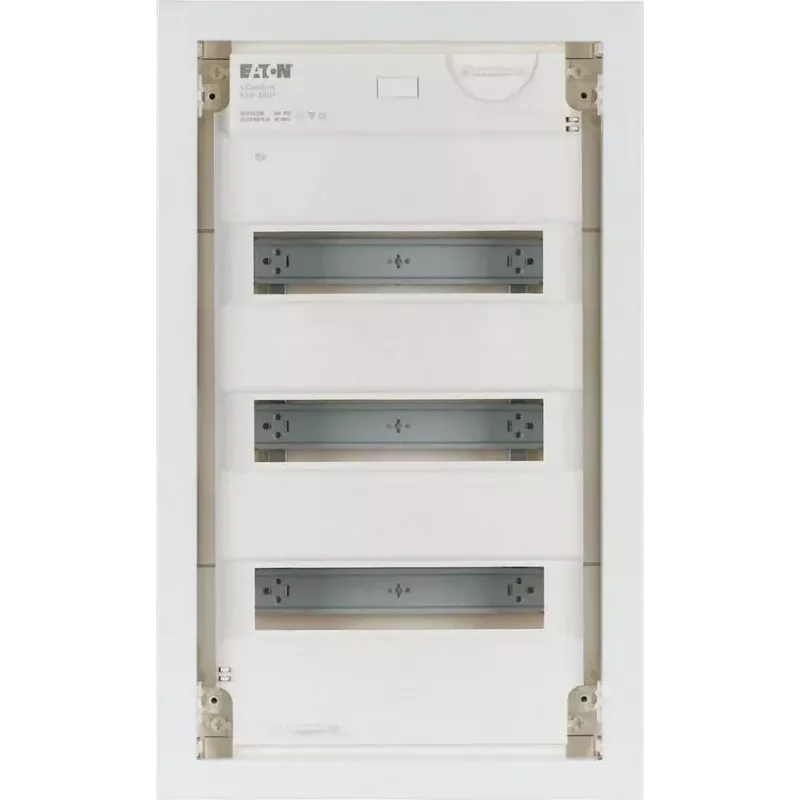

Eaton KLV-36UPP-F inbouw-verdeelkast, 36 module-eenheden, 3 rijen, transparante getinte deur, wit 178802

This flush-mounted distribution board provides a 36-module capacity across three rows, enclosed in a white polystyrene housing with a transparent tinted door for quick visual checks of installed devices.

Advantages

The board offers flexible cable entry from top, bottom, sides, or rear, simplifying installation in various wall cavities. Finger-safe N/PE terminals and included DIN rails support safe, organized wiring.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Flush-mounted wall applications

Key specifications

• Mounting type: flush-mounted
• Number of rows: 3
• Module units: 36 (12 per row)
• Door type: transparent, tinted
• Enclosure material: plastic (polystyrene)
• Colour: white (RAL 9016)
• Protection class: IP30
• Electrical protection class: Class II
• Rated operational voltage: 400 V AC
• Rated current: up to 63 A
• Glow-wire test: 850 °C
• Standards: DIN VDE 0603-1, DIN 43871
• Cable entry: top, bottom, side, rear
• N/PE terminals: included (finger-safe)
• DIN rail: included (3x)

Recommendations

Ideal for electricians seeking a reliable, standard-compliant flush-mounted distribution board for residential or small commercial projects.
