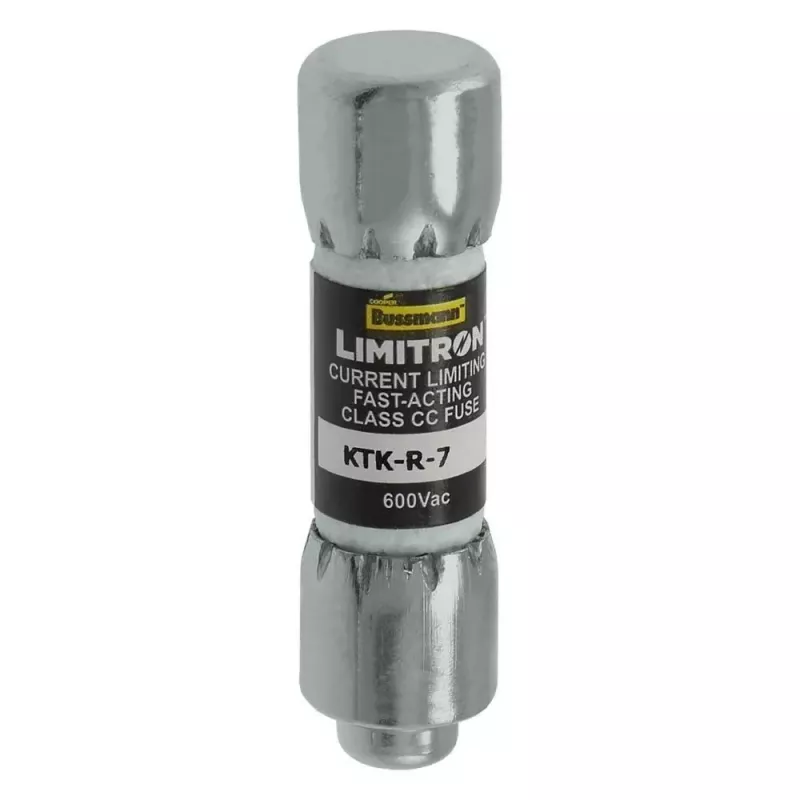

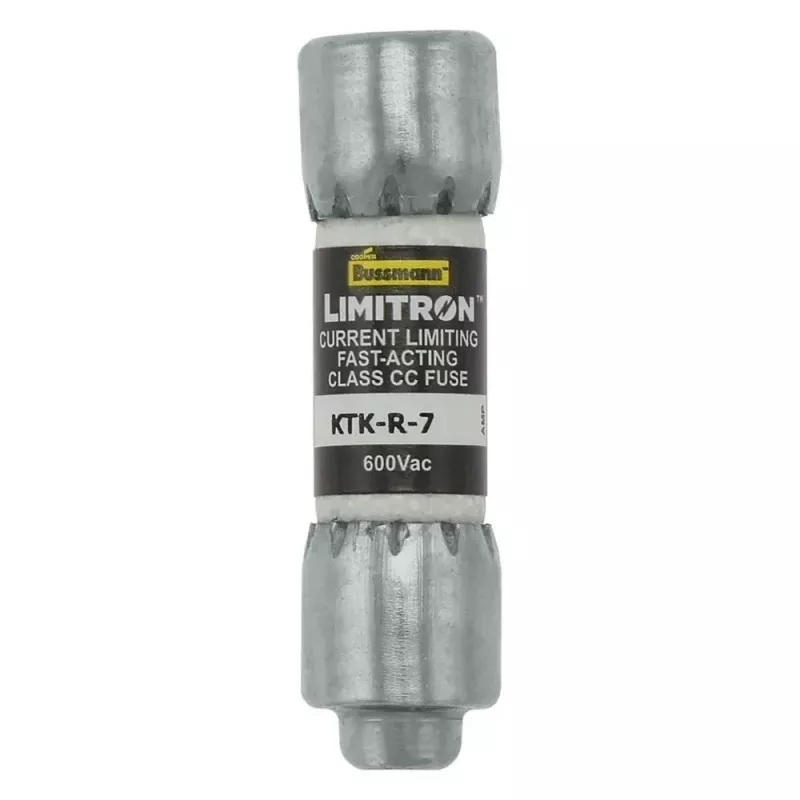

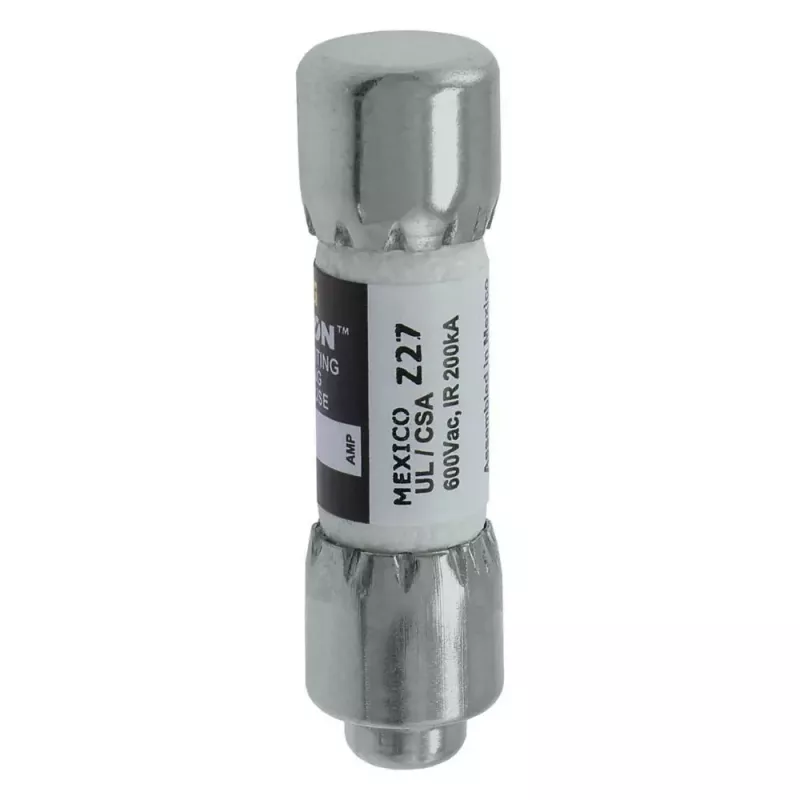

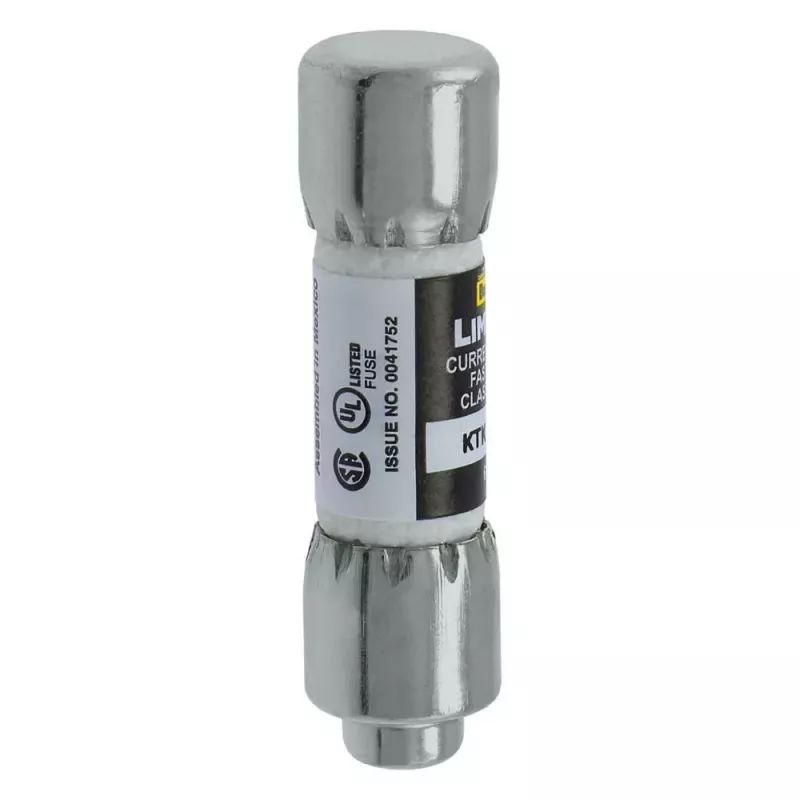

Eaton KTK-R-7 Class CC snelle zekering, 7 A, 600 V AC, 200 kA uitschakelvermogen, 10-pack

With a 200 kA interrupting rating, the Eaton KTK-R-7 Class CC fuse delivers robust protection for branch circuits, control circuits, lighting, and transformers. This fast-acting fuse is rated for 7 A at 600 V AC, ensuring reliable interruption of overcurrents in demanding applications.

Overview

The Eaton KTK-R-7 is a single-pole, fast-acting Class CC fuse designed for use in fuse holders or clips. Its melamine body and nickel-plated brass end caps provide durability and reliable electrical contact. The fuse meets UL Listed and CSA Certified standards, making it suitable for a wide range of industrial and commercial installations.

What stands out

• High interrupting rating of 200 kA for superior short-circuit protection
• Fast-acting response to quickly isolate faults
• Compact 13/32" x 1-1/2" size fits standard Class CC fuse holders
• UL Listed and CSA Certified for safety compliance
• Pack of 10 fuses for convenient replacement stock

Technical details

• Current rating: 7 A
• Voltage rating: 600 V AC
• Interrupting rating: 200 kA
• Speed: Fast-acting
• Number of poles: 1
• Body material: Melamine
• End cap material: Nickel-plated brass
• Mounting type: Holder/clip
• Diameter: 10.3 mm (13/32 inch)
• Length: 38.1 mm (1-1/2 inch)
• Standards met: UL Listed, CSA Certified
• Application: Branch circuit protection, control circuits, lighting, transformers
• Pack quantity: 10 pieces

Our verdict

The Eaton KTK-R-7 is a reliable choice for protecting critical circuits, offering high interrupting capacity and fast response in a standard package.
