Eaton LS-02 LS-Titan eindschakelaar, kunststof, geel, IP66/IP67, 1NO+1NC, stoter, M20 266107

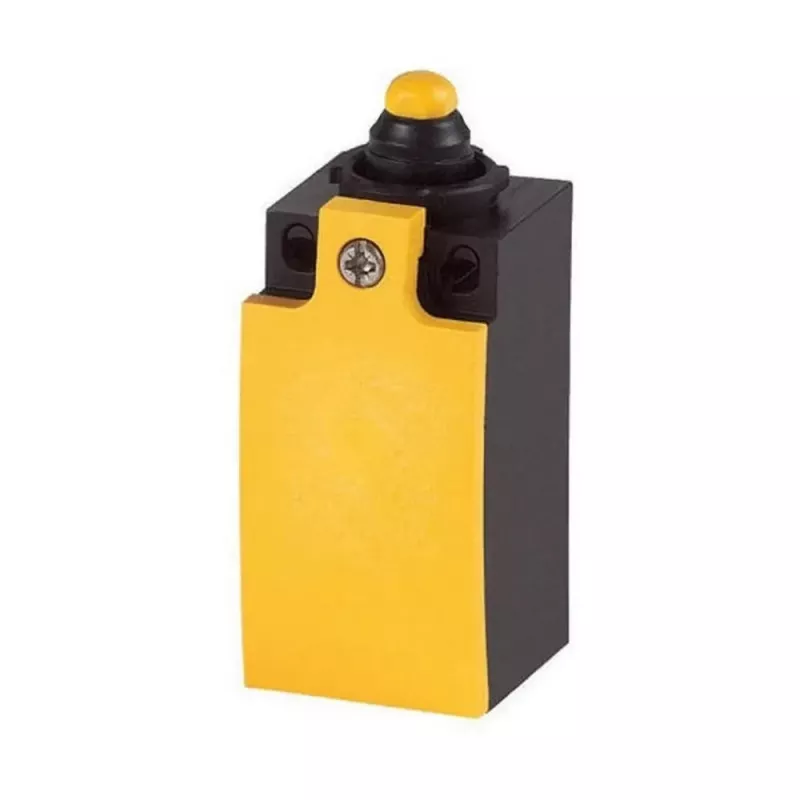

The Eaton LS-02 stands out in the LS-Titan series with its bright yellow plastic housing, offering high visibility in industrial environments. This limit switch is engineered for reliable position sensing with a plunger actuator and snap-action switching, ensuring precise operation even in demanding conditions.

Highlights

• Robust plastic housing in yellow for easy identification
• Degree of protection IP66 and IP67, suitable for harsh environments
• Snap-action switching principle for crisp, repeatable actuation
• 1 normally open and 1 normally closed contact for flexible circuit design
• Wide operating temperature range from -25 °C to 70 °C
• Long mechanical life of 10 million operations

In daily use

The LS-02 is mounted via two M4 screws and connected through an M20 x 1.5 cable entry. Its screw terminals make wiring straightforward. The plunger actuator responds to linear motion, making it ideal for end-of-travel detection, door position monitoring, and similar applications where a compact, durable switch is needed.

Full specifications

• Product type: Limit switch
• Series: LS-Titan
• Model designation: LS-02/11S
• Housing material: Plastic
• Housing colour: Yellow
• Actuator type: Plunger
• Contact configuration: 1 NO, 1 NC
• Switching principle: Snap-action
• Connection type: Screw terminal
• Degree of protection: IP66, IP67
• Operating temperature: -25 °C to 70 °C
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Mechanical life: 10,000,000 operations
• Electrical life: 1,000,000 operations
• Mounting type: Base mounting (2 x M4)
• Cable entry: M20 x 1.5

Final note

With its high IP rating and durable construction, the Eaton LS-02 is a dependable choice for position sensing in challenging industrial settings.
