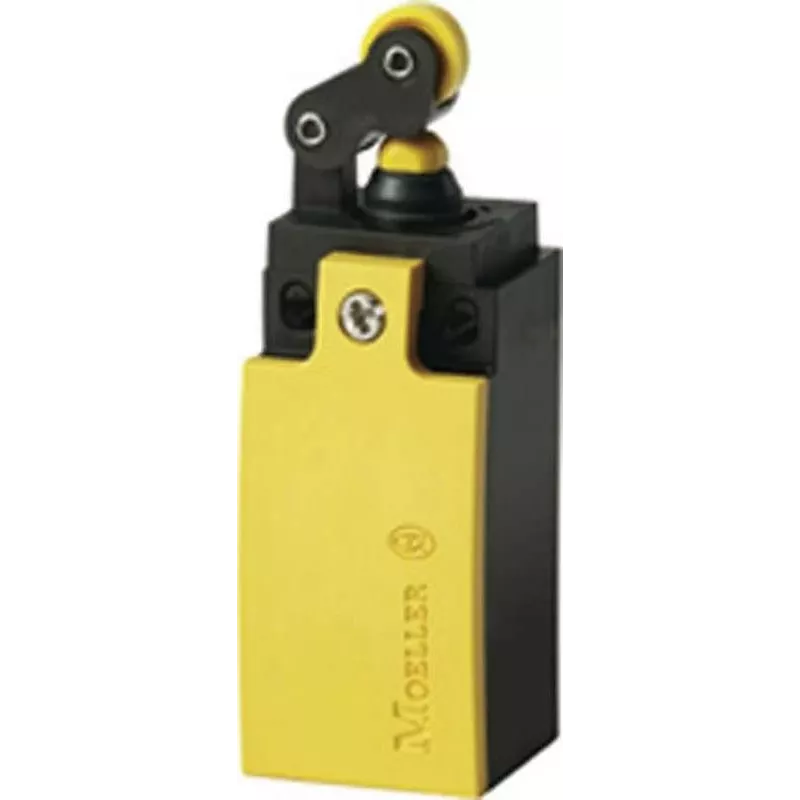

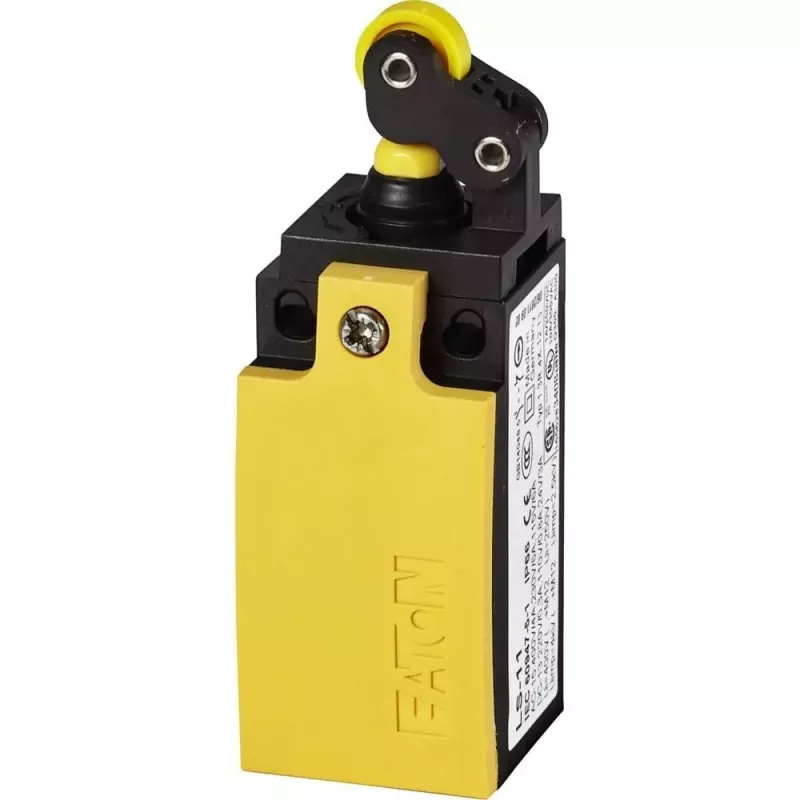

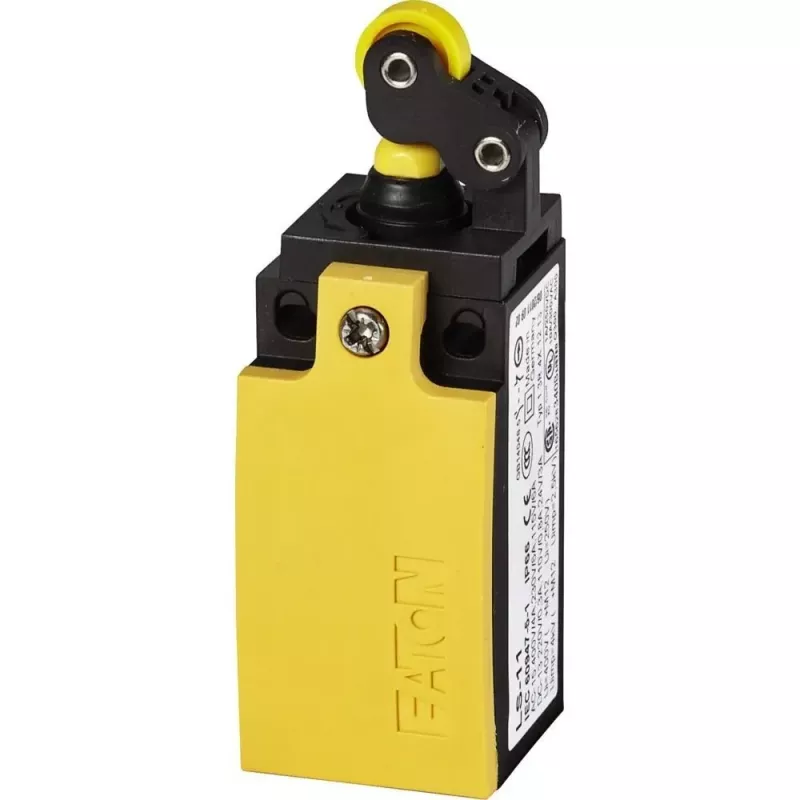

Eaton LS-S11/LS eindschakelaar, rolhevel, momentcontact, 1NO+1NC, 400VAC 4A, IP67 106787

The Eaton LS-S11/LS is a robust limit switch with roller lever actuator, designed for reliable position detection in industrial applications. Its momentary snap-action contacts (1NO+1NC) and IP67 sealed housing ensure dependable operation even in harsh environments.

Advantages

High mechanical life exceeding 10 million operations, wide operating temperature range from -25 to +70°C, and a compact, glass-fiber reinforced thermoplastic housing. The roller lever can be adjusted in 4 directions for flexible mounting.

Suitable for

• Machine tools and conveyor systems
• Automated production lines
• Material handling equipment
• Outdoor or washdown environments requiring IP67 protection

Key specifications

• Actuator: Roller lever, adjustable in 4 directions
• Switching function: Momentary (snap-action)
• Contacts: 1 Normally Open + 1 Normally Closed
• Rated operational current: 4 A at 240 V AC-15, 3 A at 400 V AC-15
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Conventional thermal current: 10 A
• Ingress protection: IP67
• Housing material: Glass-fiber reinforced thermoplastic
• Cable entry: 1 x M20 x 1.5
• Connection: Screw terminals
• Operating temperature: -25 to +70 °C
• Mechanical life: > 10 million operations
• Electrical life: > 1 million operations
• Standards: IEC/EN 60947-5-1
• Mounting: Surface mount

Recommendations

For reliable end-position sensing in demanding industrial environments, the Eaton LS-S11/LS offers proven performance and easy installation.
