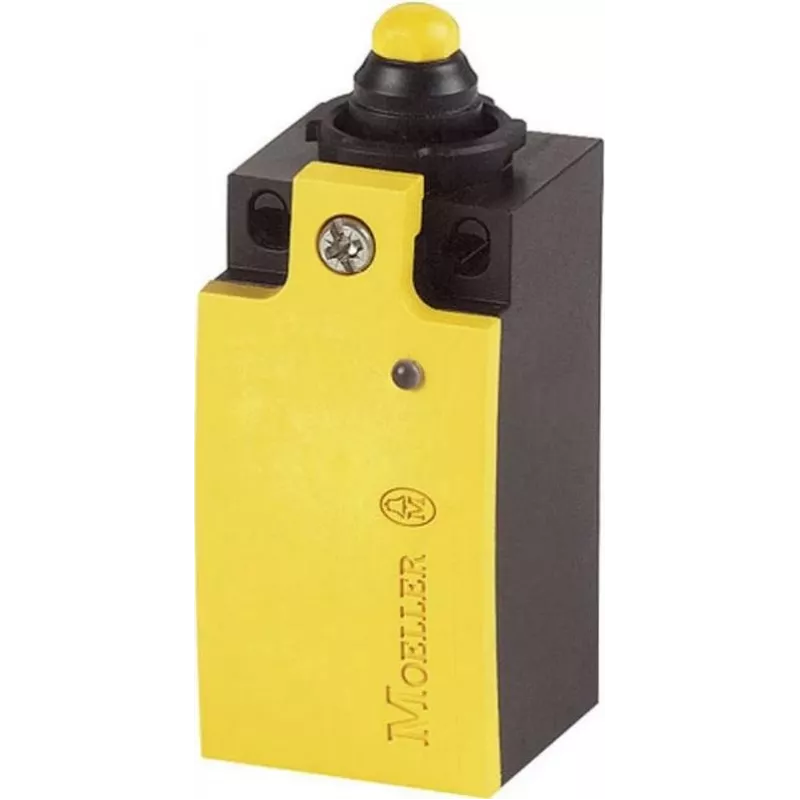

Eaton LS-S11DA eindschakelaar, stoterbediening, 1NO+1NC, 400 V AC, 4 A, IP67 106795

Limit switch with plunger actuator and snap-action contacts, rated for 400 V AC and 4 A. The LS-S11DA provides reliable position detection in industrial environments with its IP67 sealed thermoplastic housing and momentary plunger operation.

Advantages

High mechanical lifespan of 10 million operations and electrical lifespan of 1 million operations ensure long-term reliability. The IP67 rating protects against dust and temporary immersion, making it suitable for harsh conditions.

Suitable for

• Machine tools and conveyor systems
• Automated production lines
• Material handling equipment
• Packaging machinery

Key specifications

• Actuator: Plunger, momentary (spring return)
• Contact configuration: 1 NO + 1 NC
• Rated operational voltage: 400 V AC
• Rated operational current: 4 A (AC-15)
• Degree of protection: IP67
• Housing material: Thermoplastic
• Connection: Screw terminals
• Operating temperature: -25 to +70 °C
• Mechanical lifespan: 10,000,000 operations
• Electrical lifespan: 1,000,000 operations
• Mounting: Base/panel mount
• Cable entry: 1 x M20 x 1.5

Recommendations

For applications requiring precise end-of-travel detection with a robust sealed switch, the LS-S11DA offers dependable performance and easy installation.
