Eaton LS-Titan eindschakelaar-basislichaam 2NC LS-S02-ZB (106874)

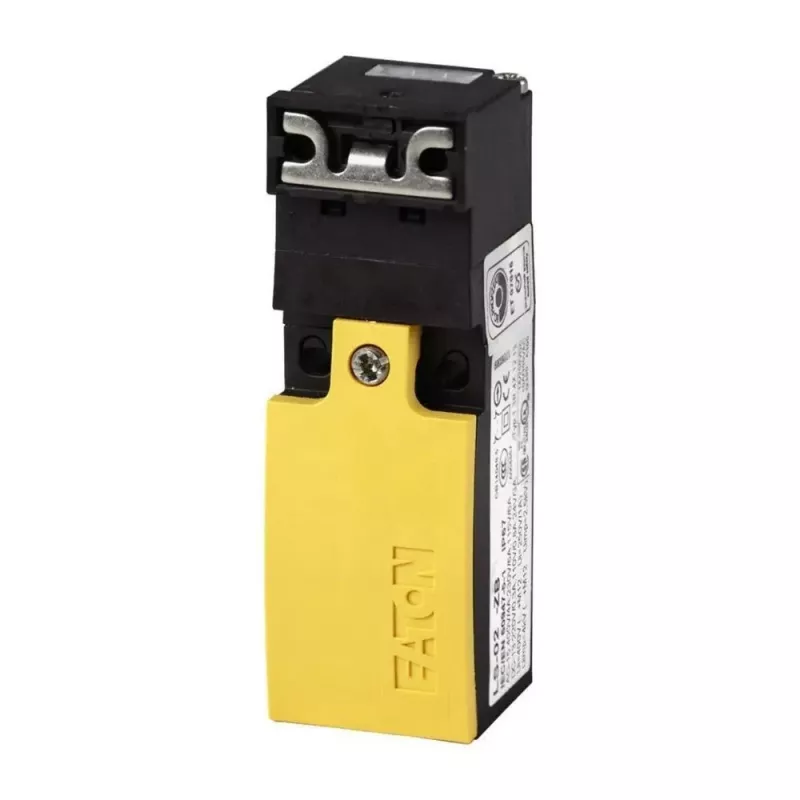

In industrial automation, a reliable limit switch body is essential for position detection in machines and conveyor systems. The Eaton LS-S02-ZB is a basic switch body from the LS-Titan series, designed for use with a separate actuator head (sold separately) to suit various applications.

Key specifications

• Contact configuration: 2 Normally Closed (NC)
• Switching principle: Snap-action
• Housing material: Die-cast metal
• Connection type: Screw terminals
• Rated operational current: 6 A (AC-15, 230V); 3 A (DC-13, 24V)
• Rated insulation voltage: 500 V AC
• Degree of protection: IP66, IP67 (when correctly installed with actuator)
• Ambient operating temperature: -25 to +70 °C
• Mechanical life: > 10 x 10^6 operations
• Electrical life: > 1 x 10^6 operations
• Cable entry: 1 x M20 x 1.5
• Mounting: Base mounting (2 x M4 screws)
• Contact material: Silver alloy
• Short-circuit protection: Fuse 10 A gG/gL
• Terminal capacity: 1 x (0.5 - 2.5) mm² or 2 x (0.5 - 1.5) mm²

Why choose it

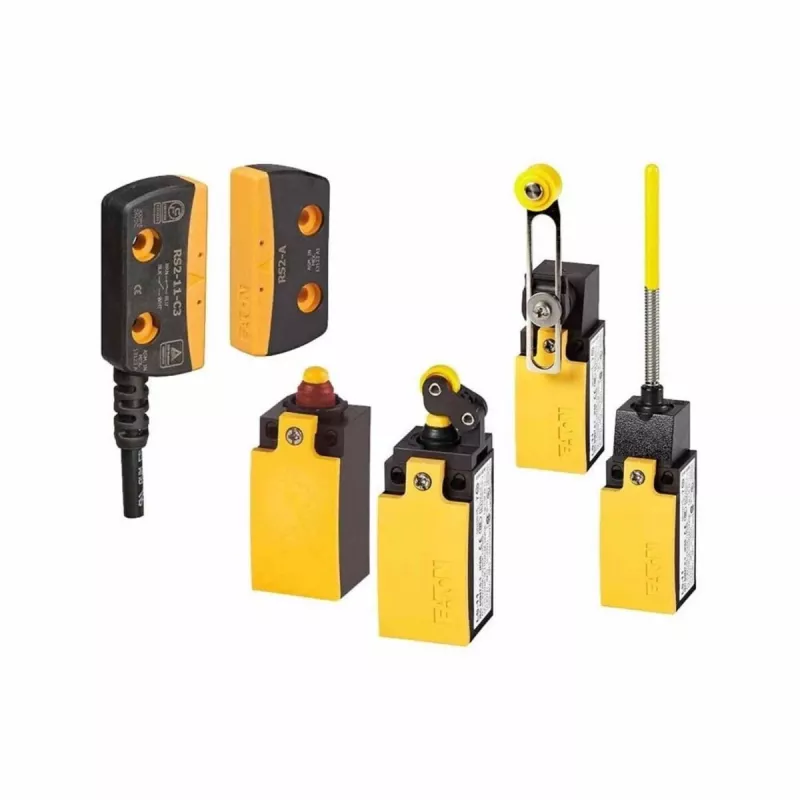

The LS-Titan series is engineered for demanding industrial environments, offering robust die-cast metal housing and high mechanical and electrical endurance. Its modular design allows flexible configuration with different actuator heads.

Ideal use cases

• Position sensing on machine tools
• Conveyor system end stops
• Automated production lines
• Material handling equipment

Good to know

The switch body is supplied without an actuator head; select a compatible LS-Titan actuator head to complete the assembly. Screw terminals accommodate solid or stranded conductors up to 2.5 mm².
