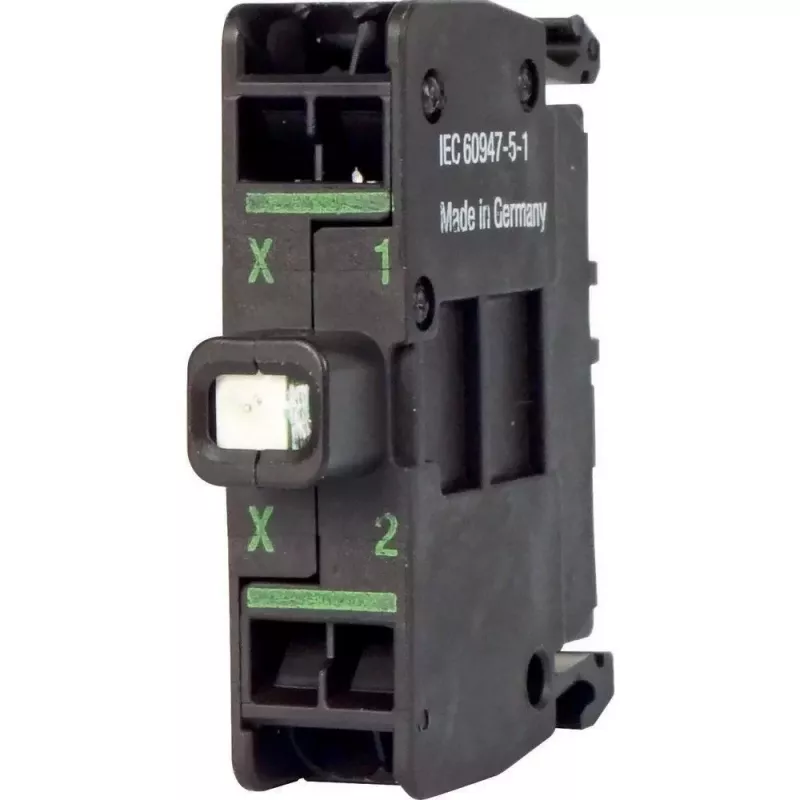

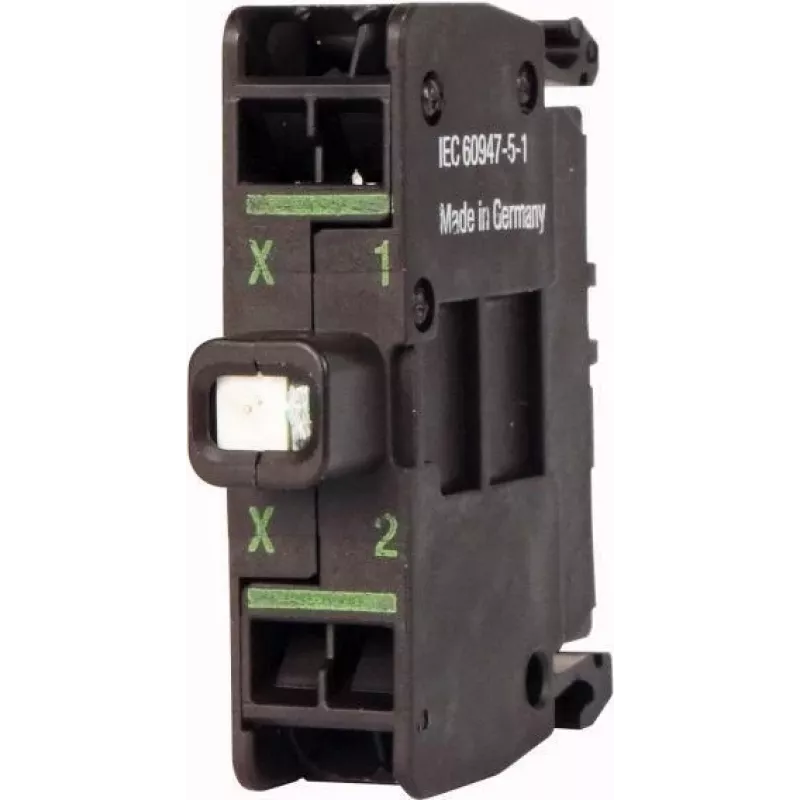

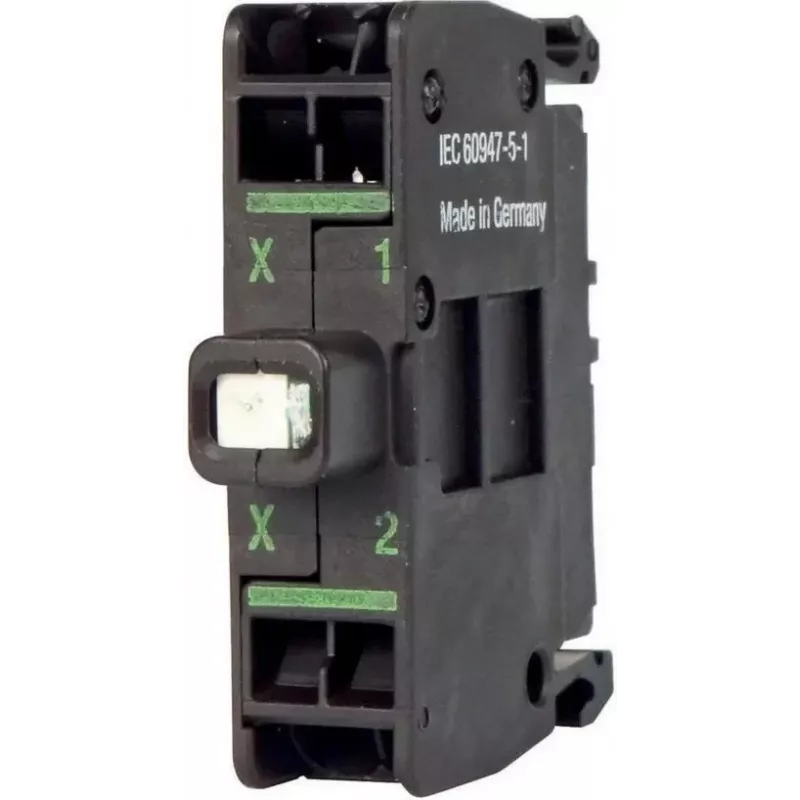

Eaton M22-CLEDC-W LED-element wit 12-30V AC/DC veerklem 216572

Panel builders and machine operators use the Eaton M22-CLEDC-W LED element to add white status indication to M22 series control devices. It mounts directly into pushbuttons, selector switches, and pilot lights, providing clear visual feedback in industrial control panels and operator stations.

Key specifications

• Light colour: White
• Operating voltage: 12-30 V AC/DC
• Connection: Spring-cage terminal
• Lamp type: LED
• Compatible with Eaton M22 control devices

Why choose it

The LED element offers long service life and low energy consumption. Spring-cage terminals allow quick, tool-free wiring, reducing installation time. Its compact design fits standard 22 mm mounting holes.

Ideal use cases

• Indicating machine status in control panels
• Signalling operational states in automation systems
• Replacing incandescent lamps in existing M22 installations

Good to know

The element is designed for rear panel mounting and is compatible with the Eaton M22 modular system. It operates reliably across a wide temperature range, making it suitable for demanding industrial environments.
