Eaton M22-D-G-K10-BVP drukknop, groen, kunststof frontring, 1NO 110934

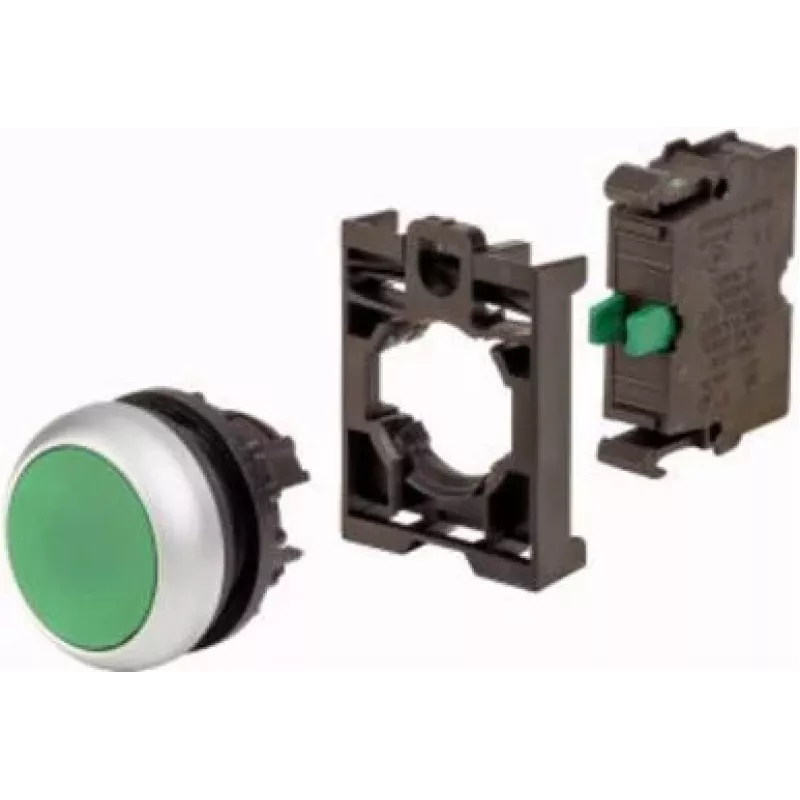

Industrial control panels and machine interfaces often require a reliable, easy-to-operate pushbutton that can withstand frequent use and harsh environments. The Eaton M22-D-G-K10-BVP is a green momentary pushbutton switch with a plastic front ring, designed for 22.5 mm panel mounting. It features a single normally open (NO) snap-action contact, making it suitable for start commands, jog functions, or signal initiation in automated equipment.

Key specifications

• Actuator type: Momentary (non-latching)
• Actuator colour: Green
• Front ring material: Plastic
• Mounting diameter: 22.5 mm
• Contact configuration: 1 Normally Open (NO)
• Contact type: Snap-action
• Rated operational voltage: 500 V AC / 250 V DC
• Rated operational current (AC-15): 6 A @ 230 V
• Rated operational current (DC-13): 3 A @ 24 V
• Connection type: Screw terminals
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 5,000,000 operations
• Electrical life: > 500,000 operations
• Series: Eaton M22

Why choose it

The M22 series is known for its modular design and robust construction. This pushbutton offers a high mechanical life and a wide operating temperature range, ensuring dependable performance in demanding industrial settings. The green actuator provides clear visual indication for start or enable functions.

Ideal use cases

• Control panels for conveyors and packaging machines
• Machine tool start/stop stations
• Process control interfaces
• Automation systems requiring a momentary NO contact

Good to know

The pushbutton is non-illuminated and uses screw terminals for secure wiring. It is part of the Eaton M22 modular range, allowing combination with contact blocks and other accessories.
