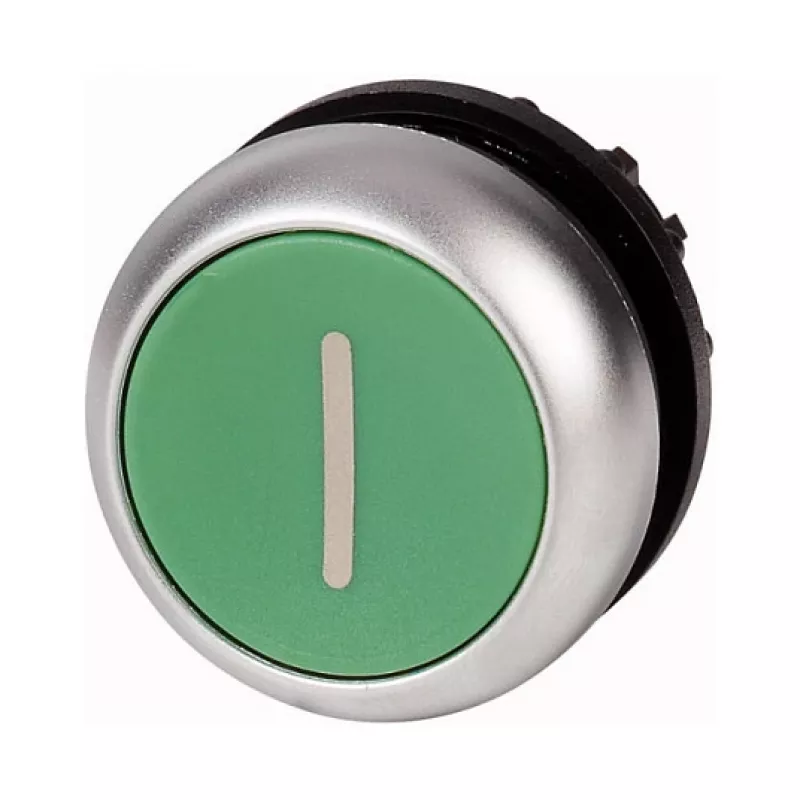

Eaton M22-D-G-X1 vlakke drukknop-bediening, groen, momentaan (216607)

The Eaton M22-D-G-X1 is a flush-mounted pushbutton actuator head engineered for precise control in demanding industrial environments. Part of the respected M22 range, this momentary green actuator delivers reliable, tactile feedback with every press, making it an ideal interface for machinery and control panels.

Advantages

This actuator head combines rugged construction with exceptional environmental sealing. Rated IP66, IP67, and IP69K, it withstands dust, water jets, and high-pressure washdowns, while NEMA 4X and 13 ratings offer protection against corrosion and oil. Its plastic construction ensures lightweight durability, and the mechanical life exceeds 5,000,000 operations, guaranteeing long-term performance. The flat profile prevents accidental actuation and is easy to clean.

Suitable for

• Industrial machinery and process control systems
• Control panels requiring a flush, momentary pushbutton
• Applications demanding high ingress protection (IP66/67/69K)
• Harsh environments with exposure to moisture, dust, or chemical detergents

Key specifications

• Product type: Pushbutton actuator head (non-illuminated)
• Actuator type: Flat, momentary action
• Colour: Green
• Mounting diameter: 22.5 mm
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Protection rating: IP66, IP67, IP69K, NEMA 4X/13
• Mechanical life: >5,000,000 operations
• Compatibility: Eaton M22 contact blocks and mounting adapters
• Standards: IEC/EN 60947, VDE 0660, UL, CSA, CCC, RoHS

Recommendations

Pair the M22-D-G-X1 with a compatible Eaton M22 contact block and mounting adapter to complete a robust control unit. Ensure the panel cut-out is 22.5 mm and properly sealed to maintain the stated ingress protection rating.
