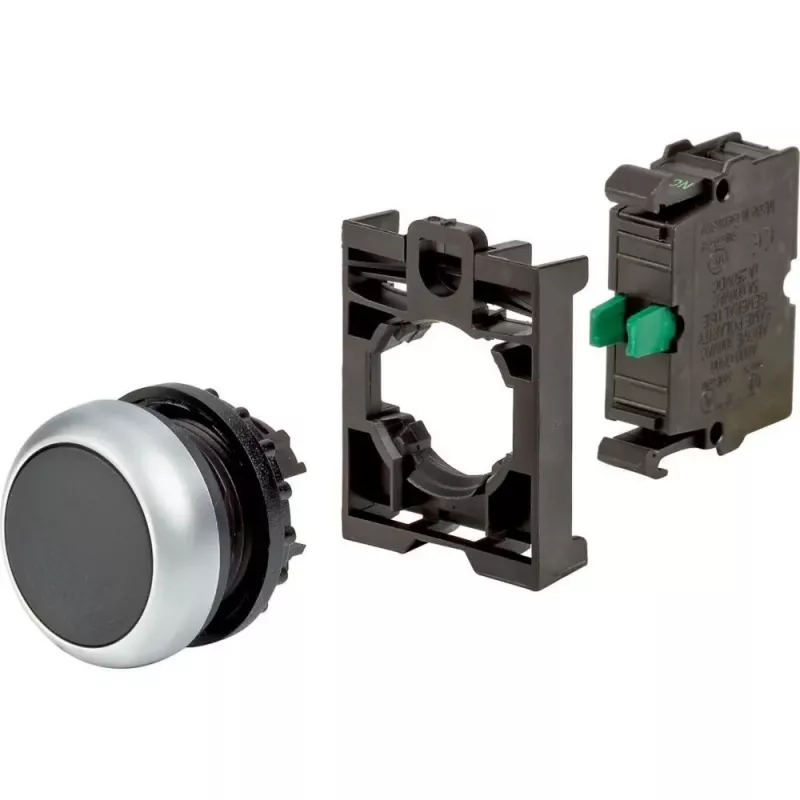

Eaton M22-D-S-K10-BVP drukknop, verzonken, zwart, kunststof frontring, 1NO 110933

Industrial control panels often need a reliable, compact pushbutton that can withstand harsh environments while providing a clear tactile response. The Eaton M22-D-S-K10-BVP addresses this need with a flush-mount momentary pushbutton designed for 22.5 mm panel cutouts.

Who is it for

This pushbutton is intended for machine builders, panel builders, and maintenance technicians who require a robust, non-illuminated control element for start, stop, or jog functions in industrial machinery and control systems.

Main features

• Flush actuator style with black colour for a clean, professional appearance.
• Plastic front ring provides durability and corrosion resistance.
• Momentary (spring return) operation with 1 normally open (NO) contact.
• Screw terminals for secure wiring.
• High front protection: IP66, IP67, IP69K, suitable for washdown environments.
• Mechanical durability exceeding 5 million operations.
• Wide operating temperature range from -25 to +70 °C.

Specifications

• Component type: Pushbutton
• Actuator style: Flush
• Operating mode: Momentary (spring return)
• Actuator colour: Black
• Bezel material: Plastic
• Panel cutout diameter: 22.5 mm
• Contact arrangement: 1 Normally Open (NO)
• Illumination: Non-illuminated
• Terminal type: Screw terminals
• Max. rated operational voltage: 500V AC / 250V DC
• Max. rated operational current: 6A (AC-15, 230V) / 3A (DC-13, 220V)
• Mechanical durability: >5,000,000 operations
• Operating temperature range: -25 to +70 °C
• Number of positions: 2 (ON/OFF)

Tips

For optimal performance, ensure the panel cutout is exactly 22.5 mm and use a tightening torque appropriate for the plastic front ring. Pair with Eaton M22 contact blocks for modular configurations.
