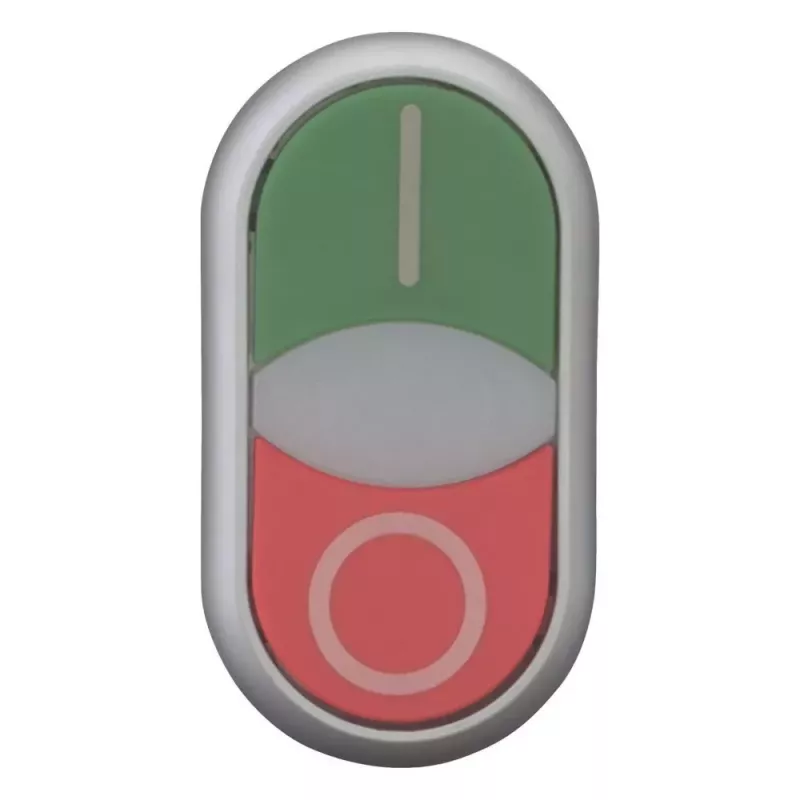

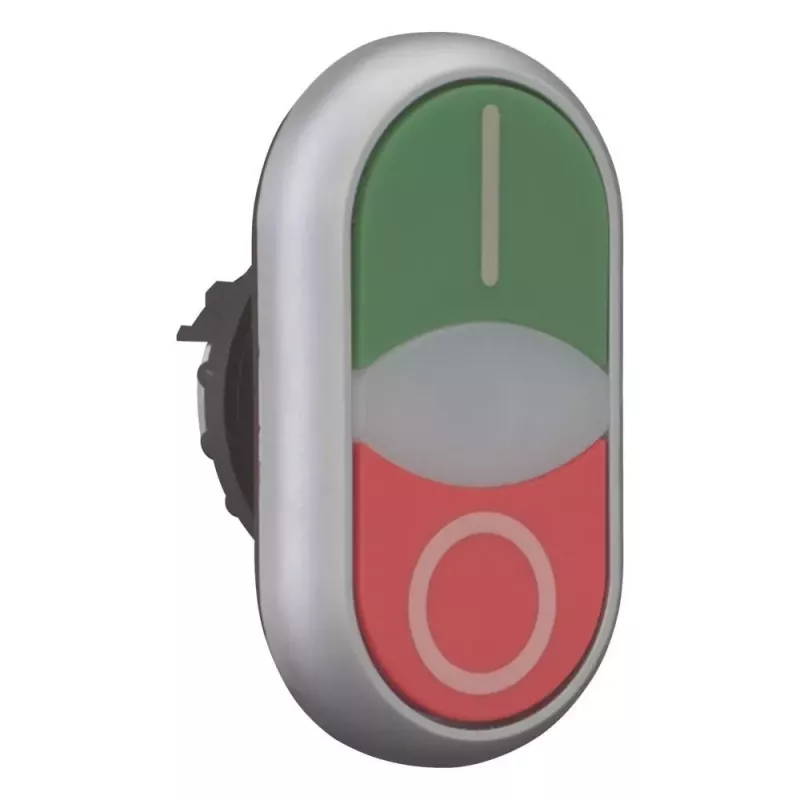

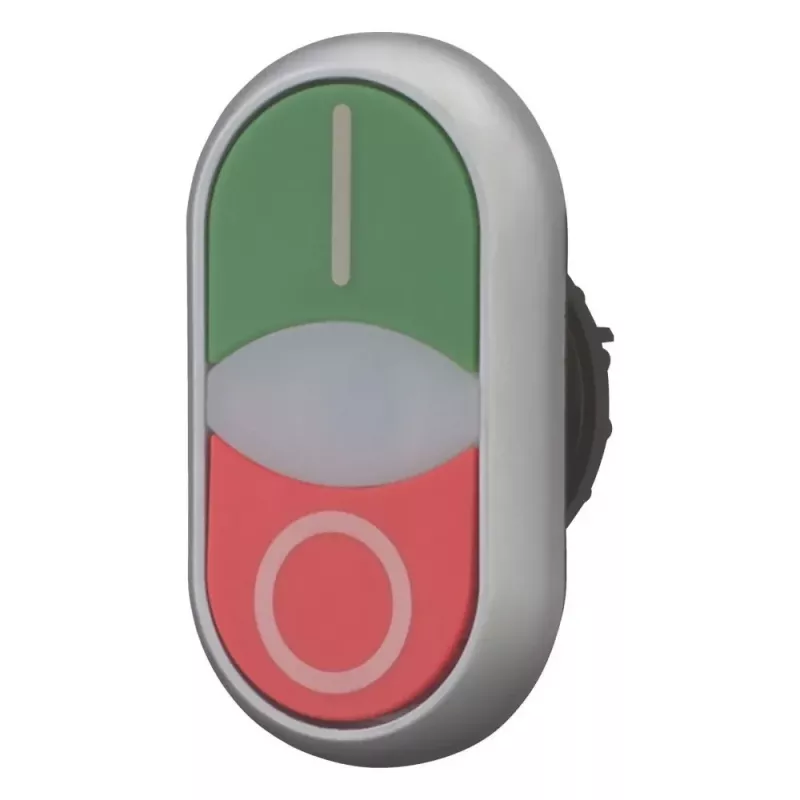

Eaton M22-DDLF-GR-X1 dubbele drukknop-bediening, vlak, verlicht, groen/rood 284814

In industrial control panels, operators need reliable and clearly identifiable pushbuttons to initiate commands. The Eaton M22-DDLF-GR-X1 double pushbutton actuator provides a compact solution for applications requiring two functions in one 22.5 mm mounting hole. Its flat design prevents accidental operation, while the green and red color coding enables intuitive start/stop or open/close control.

Who is it for

This actuator is intended for panel builders, machine manufacturers, and maintenance technicians who integrate control elements into industrial equipment, control cabinets, or operator stations. It suits environments where space is limited and clear visual indication is required.

Main features

• Double pushbutton actuator with green and red flat buttons
• Illumination capability (requires separate LED elements, not included)
• Momentary operation with spring return
• Fits standard 22.5 mm panel cut-outs
• High protection ratings: IP66, IP67, IP69K
• Long mechanical life: over 5 million operations
• Compatible with Eaton M22 contact blocks and LED elements

Specifications

• Series: Eaton M22
• Actuator design: Flat
• Actuator color: Green / Red
• Operation type: Momentary (spring return)
• Mounting hole diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• NEMA protection rating: NEMA 4X, 13
• Ambient operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical life: > 5 million operations
• Contact block compatibility: Eaton M22 series (e.g., M22-K10, M22-K01)
• LED element compatibility: Eaton M22 series (e.g., M22-LED-G, M22-LED-R)
• Material (front ring): Plastic
• Standards: IEC/EN 60947-5-1
• Approvals: CE, UL, CSA, CCC, EAC, DNV GL

Tips

For illuminated operation, order the appropriate M22 LED elements separately. Ensure the panel thickness is compatible with the actuator's mounting depth. Use only Eaton M22 contact blocks to maintain proper fit and electrical ratings.
