Eaton M22-DDLF-WS-X1 dubbele drukknop, vlak, verlicht, wit/zwart, 1NO+1NC, schroefaansluiting 284816

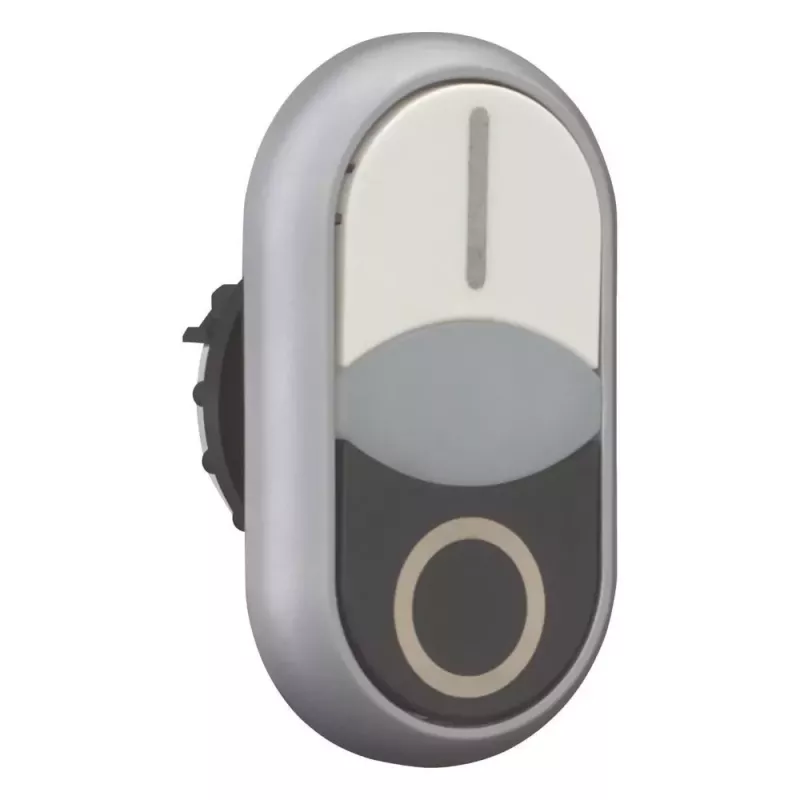

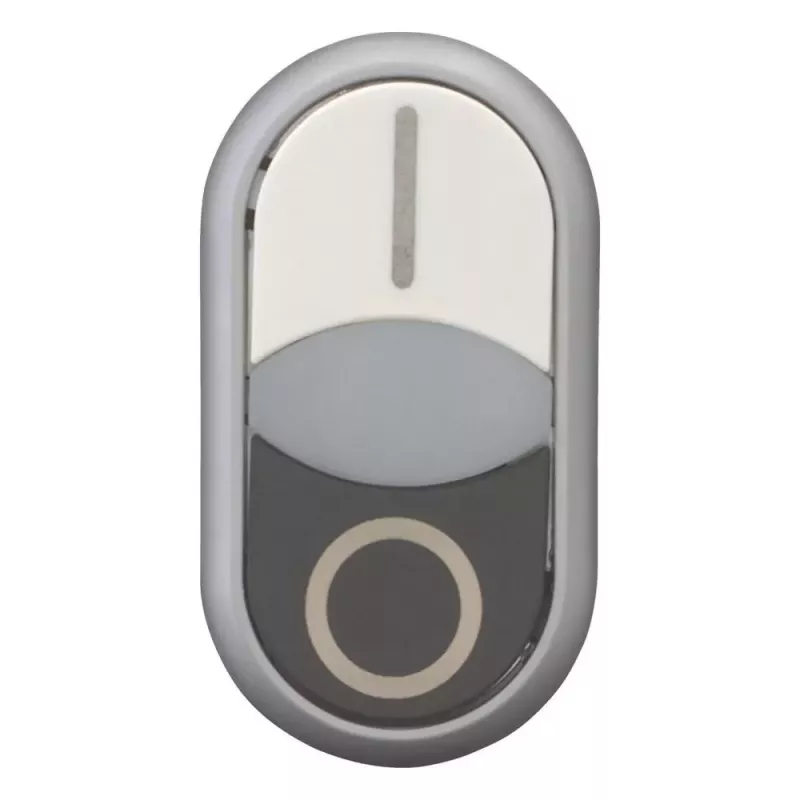

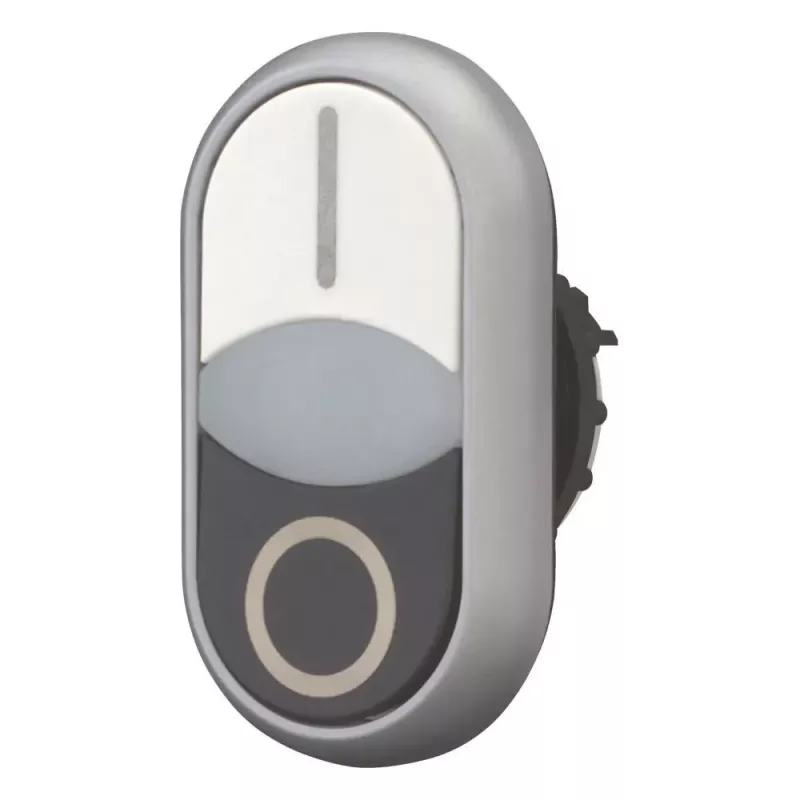

Control two functions from one compact device with the Eaton M22-DDLF-WS-X1 double push-button. Designed for industrial control panels and machinery, this flat illuminated actuator features a white 'I' and black 'O' legend, making it ideal for start/stop or on/off operations. The unit is part of the Eaton M22 series, known for reliable switching in demanding environments.

Key specifications

• Product type: Double push-button
• Actuator type: Flat
• Illumination: Illuminated (lamp not included, requires M22-LED-...)
• Actuator colour: White ('I') / Black ('O')
• Legend: 'I' / 'O'
• Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Connection type: Screw connection
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20
• Operating temperature: -25 to +70 °C
• Rated operational voltage (Ue): 500 V AC / 250 V DC
• Rated operational current (Ie): 6 A (AC-15, 230V)
• Terminal capacity: 1 x (0.5 - 2.5) mm² or 2 x (0.5 - 1.5) mm²
• Series: Eaton M22
• Mechanical life: > 5 million operations
• Housing material: Plastic

Why choose it

The M22-DDLF-WS-X1 offers a space-saving double push-button design with clear visual indication. Its robust construction and high protection ratings ensure reliable performance in harsh industrial environments. The screw terminals provide secure wiring, and the modular design allows easy integration with Eaton M22 accessories.

Ideal use cases

• Industrial control panels
• Machine start/stop controls
• Conveyor systems
• Packaging machinery
• HVAC control systems

Good to know

The illumination lamp is not included; a separate M22-LED element is required for illuminated operation. The push-button is compatible with standard 22.5 mm panel cutouts and can be combined with other M22 contact blocks and accessories.
