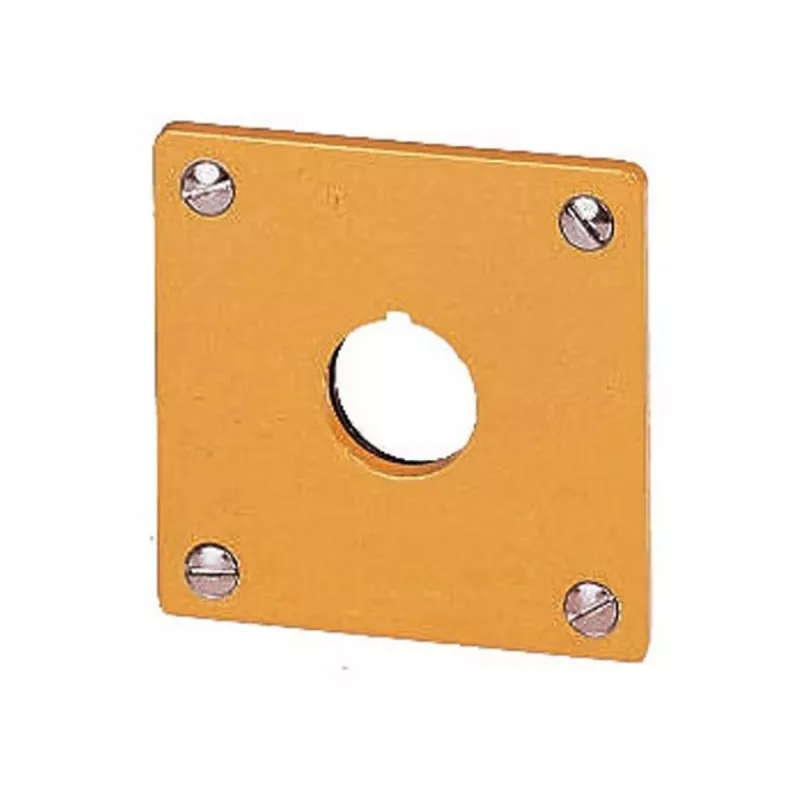

Eaton M22-EY1 montageplaat, geel, aluminium, IP65, 72 x 72 mm 216542

Control panel builders often need a reliable way to mount 22.5 mm control circuit devices onto flat surfaces while maintaining a clean, professional appearance. The Eaton M22-EY1 mounting plate solves this by providing a robust aluminium plate with a yellow finish, designed for front mounting of compatible M22 series devices.

Main features

• Made from aluminium for durability and corrosion resistance
• Yellow colour for high visibility or colour-coding in panels
• IP65 protection rating ensures dust-tight and jet-proof performance
• Square shape with 72 mm length and width, suitable for standard cut-outs
• Compatible with Eaton M22 control circuit devices

Specifications

• Product type: Mounting plate
• Series: M22
• Material: Aluminium
• Colour: Yellow
• Protection rating: IP65
• Mounting type: Front mounting
• Compatible device cut-out diameter: 22.5 mm
• Overall length: 72 mm
• Overall width: 72 mm
• Overall thickness: 1.5 mm
• Shape: Square
• Number of mounting positions: 1

Tips

When installing, ensure the mounting surface is clean and flat to maintain the IP65 seal. Use appropriate screws (not included) to secure the plate and the device.
