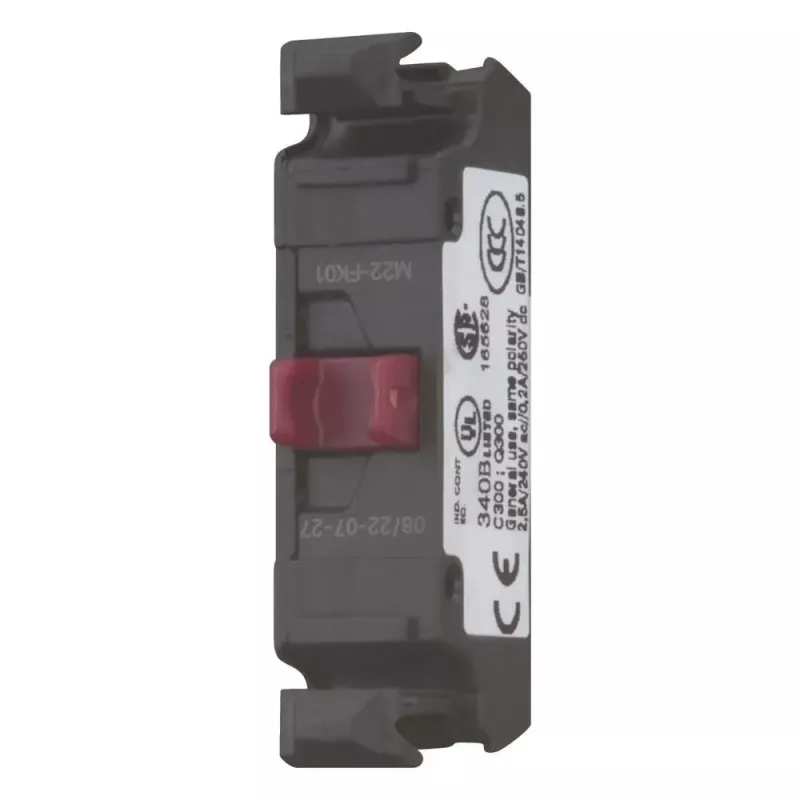

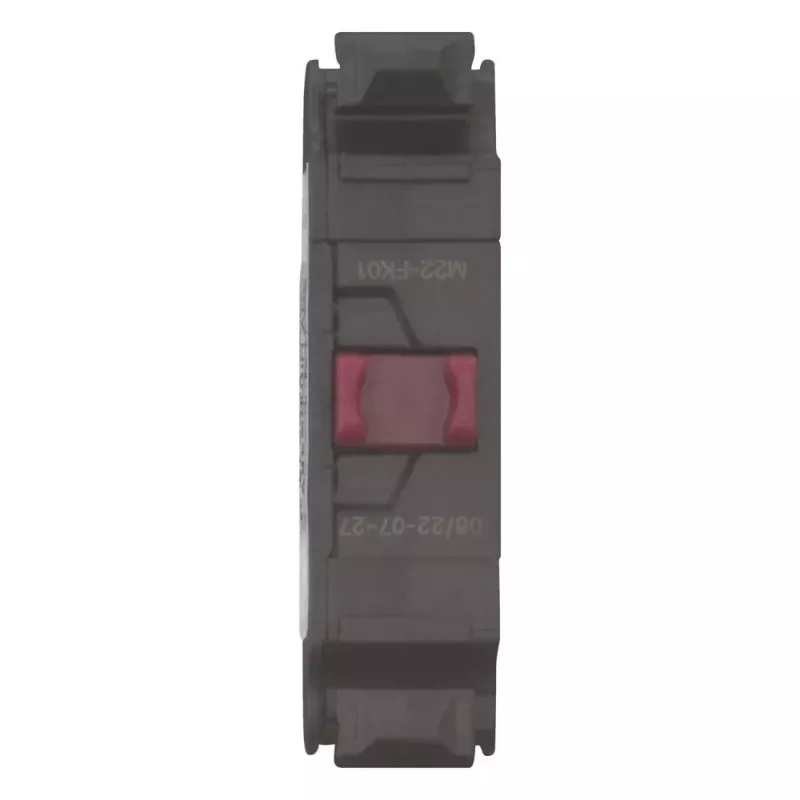

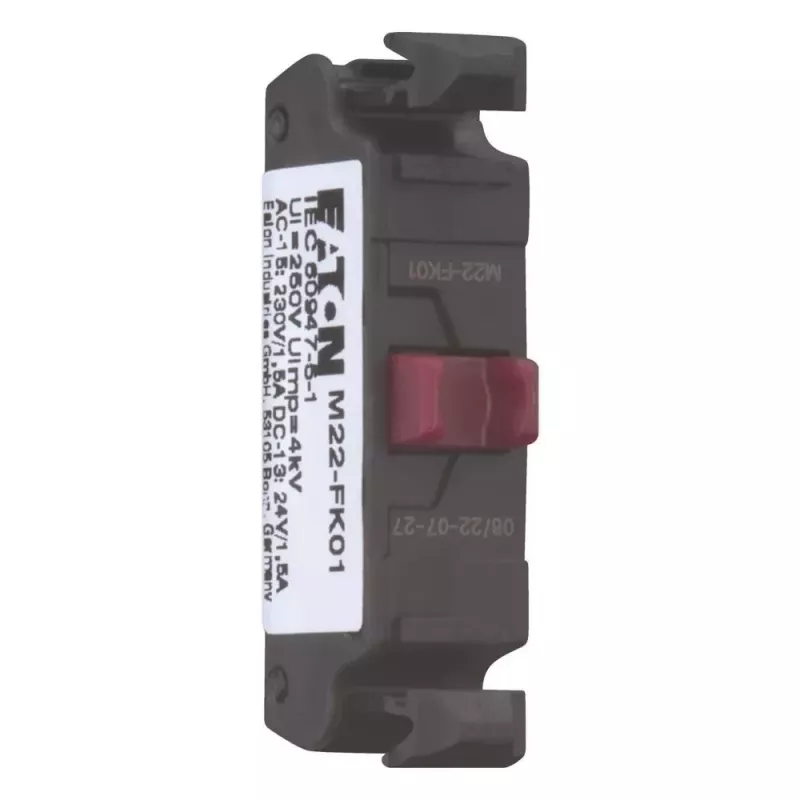

Eaton M22-FK01 vlak achter contactelement, 1 NC, schroefklemmen, frontmontage 180791

In control panel assembly, every contact element must fit reliably and switch consistently for the life of the machine. The Eaton M22-FK01 flat rear contact element provides a normally closed (NC) contact for M22 series control devices, ensuring your pushbuttons and pilot lights perform exactly when needed.

Who is it for

Panel builders and maintenance technicians who use Eaton M22 modular control devices and need a dependable NC contact block with a flat rear profile for tight spaces and front mounting.

Main features

• Normally closed (NC) contact function for control circuits
• Flat rear design for compact installations
• Snap-on front mounting for quick assembly without tools
• Screw terminals accept solid or stranded conductors from 0.5 to 2.5 mm²
• Rated insulation voltage 500 V AC, impulse withstand 6 kV
• Operational current 6 A at AC-15 230 V, 3 A at DC-13 24 V
• Thermoplastic housing for durability in industrial environments

Specifications

• Contact type: Normally closed (NC)
• Number of contacts: 1
• Series: M22
• Mounting type: Front mounting, snap-on
• Terminal type: Screw terminals
• Rated insulation voltage (Ui): 500 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230V): 6 A
• Rated operational current (DC-13, 24V): 3 A
• Connection capacity: 0.5 - 2.5 mm²
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 5 x 10^6 operations
• Electrical life: > 0.5 x 10^6 operations
• Housing material: Thermoplastic

Tips

Pair this contact element with Eaton M22 pushbuttons or selector switches. For multiple circuits, stack additional contact elements on the same actuator. Ensure wiring is properly torqued to maintain reliable connections.
