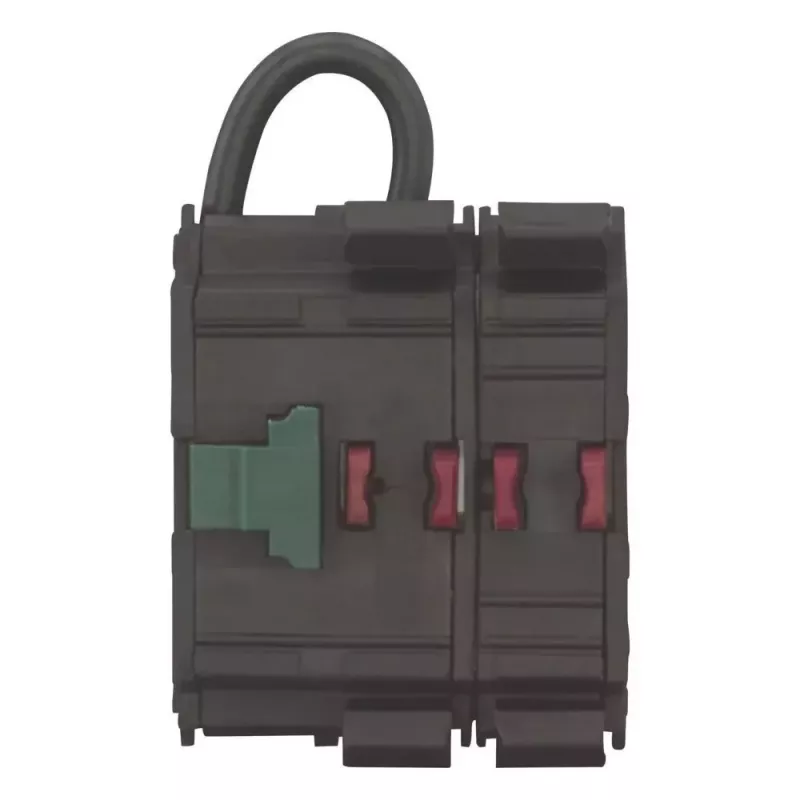

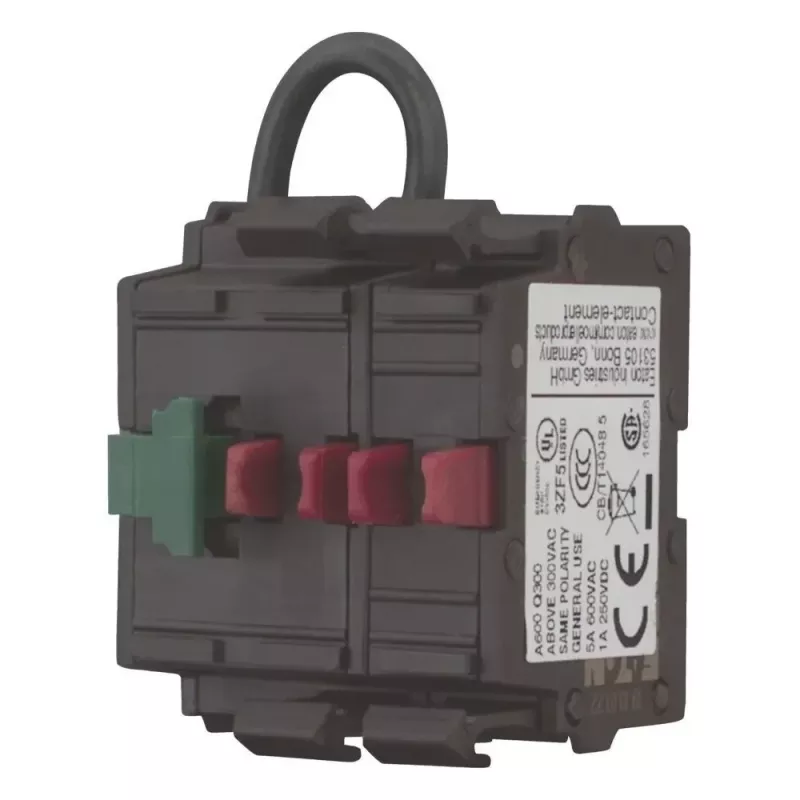

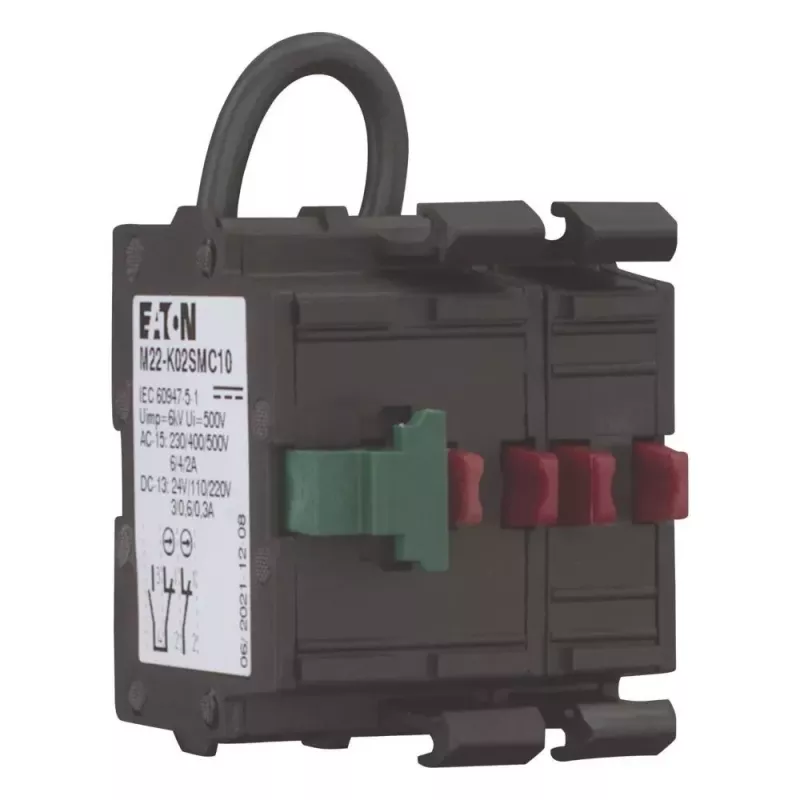

Eaton M22-K02SMC10 vermogensrelais, 2 NC, frontmontage, schroefklemmen, zwart 121474

The Eaton M22-K02SMC10 is a power relay from the M22 series, featuring 2 normally closed contacts and a rated operational current of 6 A at AC-15 (230 V). Its front mounting design and screw terminals allow straightforward integration into control circuits.

Advantages

With a mechanical life of 10 million operations and an electrical life of 5 million operations, this relay offers long-term reliability in switching applications. The black housing is designed for use with Eaton M22 front-mounting accessories.

Suitable for

• Industrial control panels and automation systems
• Switching of AC and DC loads up to the rated currents
• Applications requiring 2 NC contacts with front mounting

Key specifications

• Contact configuration: 2 NC
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (DC-13, 24 V): 3 A
• Rated insulation voltage: 500 V AC
• Rated impulse withstand voltage: 6 kV
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Electrical life: 5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Wire cross-section (solid): 0.5 - 2.5 mm²
• Wire cross-section (flexible with ferrule): 0.5 - 2.5 mm²
• Short-circuit protective device: 10 A gG/gL fuse
• Pollution degree: 3

Recommendations

For reliable switching in industrial environments, pair this relay with Eaton M22 contact blocks and enclosures. Ensure proper wiring according to the specified cross-sections and use a suitable fuse for short-circuit protection.
