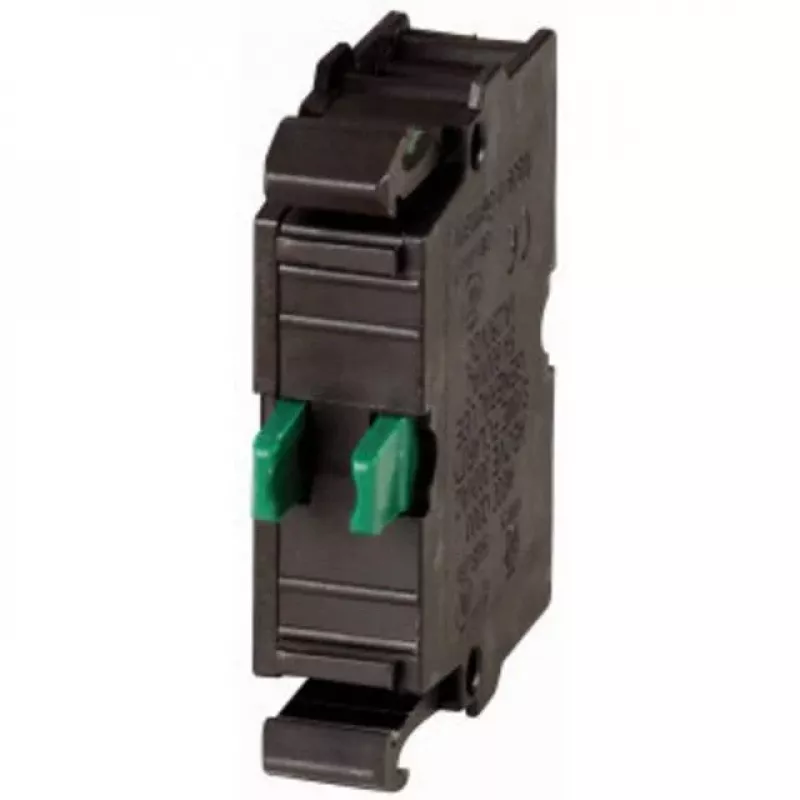

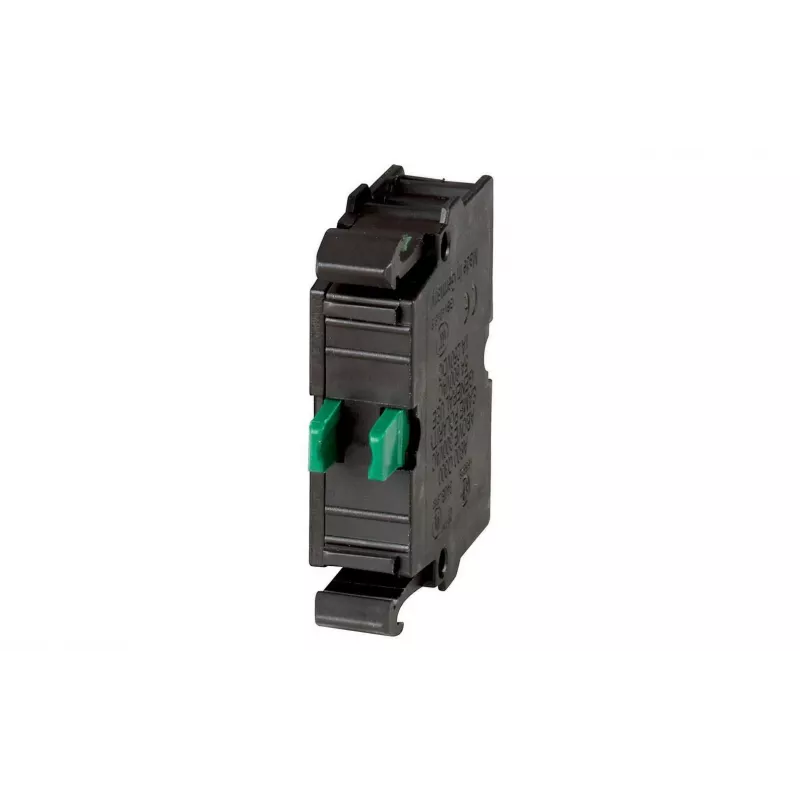

Eaton M22-K10 contactelement 1NO frontmontage schroefaansluiting

Panel builders and machine OEMs rely on the Eaton M22-K10 contact element to deliver dependable switching in control circuits for pushbuttons, selector switches, and key switches. This front-mounting unit provides one normally open (NO) contact with screw terminals, ensuring a secure connection for solid or stranded conductors from 0.5 to 2.5 mm². It is engineered for high-cycle industrial applications where uptime is critical.

Key specifications

• Contact configuration: 1 Normally Open (NO)
• Mounting type: Front mounting
• Connection type: Screw terminal
• Rated operational current: 6 A at AC-15, 230 V; 3 A at DC-13, 24 V
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20 (terminals)
• Operating temperature range: -25 °C to +70 °C
• Mechanical durability: > 5 million operations
• Electrical durability: > 0.5 million operations (AC-15, 230 V, 6 A)
• Terminal capacity: 1 x 0.5–2.5 mm² or 2 x 0.5–1.5 mm² (solid or stranded)
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200

Why choose it

The M22-K10 is built for longevity and ease of installation. Its screw terminals accept a wide range of wire sizes, and the front-mounting design allows quick replacement without removing the actuator. With high mechanical and electrical durability, it reduces maintenance downtime in high-cycle applications. The compact form factor fits seamlessly into standard 22 mm control devices, ensuring compatibility across the M22 ecosystem.

Ideal use cases

• Industrial control panels for machine tools
• Conveyor systems and material handling equipment
• Packaging machinery and process automation
• HVAC and building automation control circuits

Good to know

The contact element is part of the Eaton M22 modular system, allowing flexible combination with a wide range of actuators and accessories. It meets international safety standards and is suitable for use in demanding environments. For detailed installation instructions, refer to the manufacturer's documentation.
