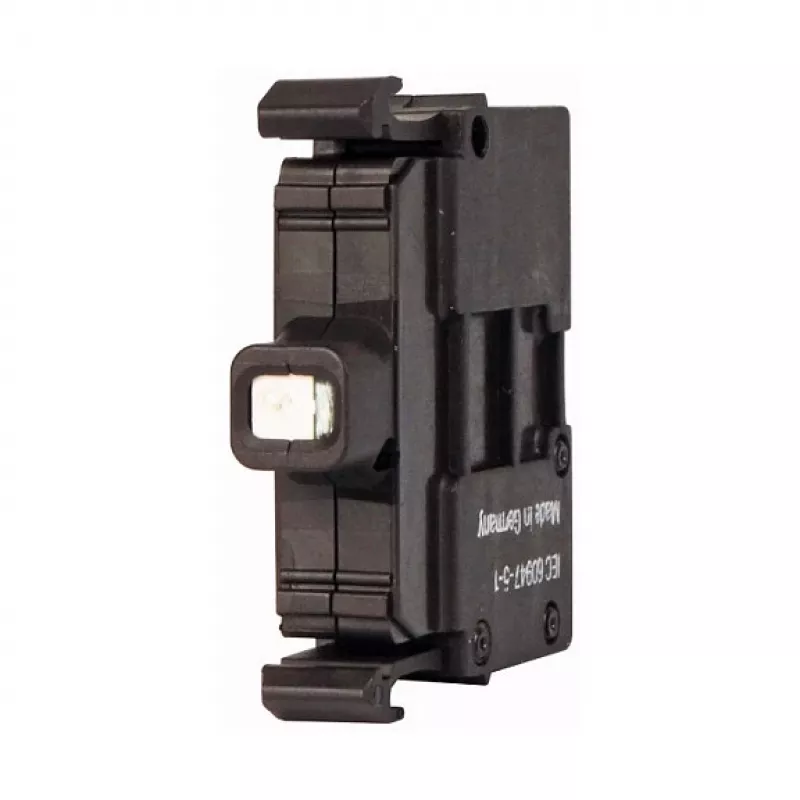

Eaton M22-LED230-W LED-element 230V AC wit licht schroefaansluiting zwart voor M22-serie (216563)

Panel builders integrating status indication into control cabinets need a reliable, long-lasting light source that wires directly into 230 V AC without extra transformers. The Eaton M22-LED230-W LED element fits that role precisely. It produces a clear white signal behind any standard M22 operator, and its screw terminals accept solid or ferruled conductors for fast, secure connections. With a rated lifespan beyond 100,000 hours, this LED element keeps maintenance calls to a minimum in demanding industrial environments.

Key specifications

• Product Type: LED Element
• Series: M22
• Light Colour: White
• Operating Voltage: 230 V AC
• Current Consumption: 5 mA
• Power Consumption: < 0.5 W
• Connection Type: Screw Terminals
• Terminal Capacity (Solid): 0.5 - 2.5 mm²
• Terminal Capacity (Flexible with Ferrule): 0.5 - 1.5 mm²
• Degree of Protection: IP20
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Lifespan: >100,000 hours
• Certifications: CE, UL, CSA
• Mounting Type: Rear mounting for M22 control devices
• Compatibility: Eaton M22 series pushbuttons and indicator lights

Why choose it

The M22-LED230-W is built for reliability. With a rated lifespan exceeding 100,000 hours, it reduces maintenance frequency and downtime. The screw terminal connection allows fast and secure wiring, while the compact design fits behind standard M22 operators without additional clearance. Its robust construction and compliance with international certifications ensure dependable performance across various industrial applications.

Ideal use cases

• Status indication in control cabinets and panels
• Signal lighting for machinery and process equipment
• Replacement LED element for existing M22 pilot lights
• New installations requiring direct 230 V AC connection without transformers

Good to know

The M22-LED230-W is part of Eaton's modular M22 series, allowing easy integration with pushbuttons, selector switches, and other operators. Its rear mounting design ensures a clean front panel appearance. The LED element is suitable for use in industrial environments with operating temperatures from -25°C to +70°C. For optimal performance, use conductors within the specified terminal capacity and ensure proper ferrules for flexible wires.
