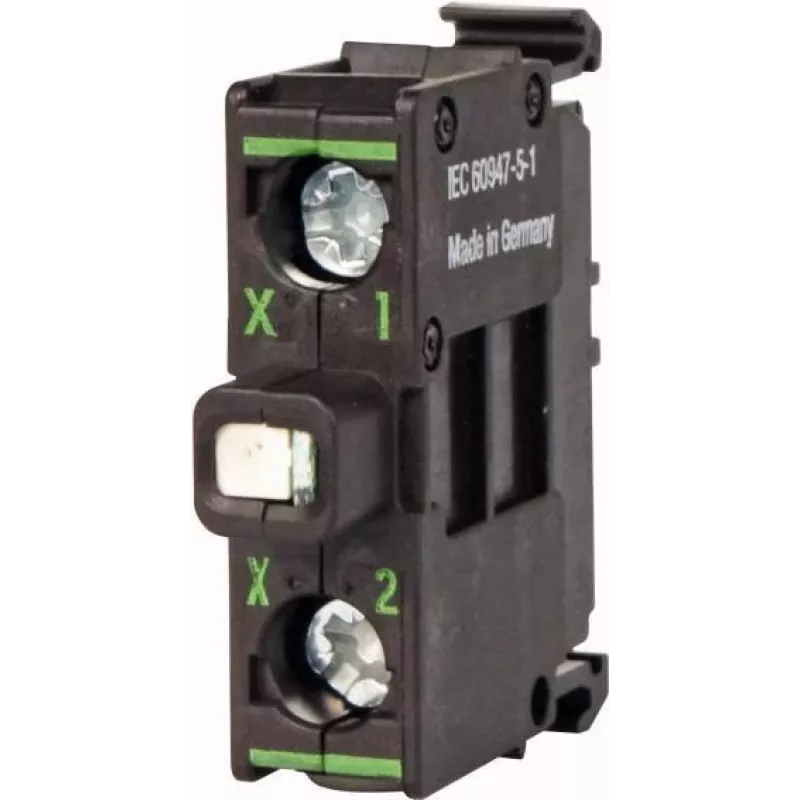

Eaton M22-LEDC230-R LED-signaallicht-element, rood, 230V AC, schroefklemmen

With an operating voltage of 230 V AC and a red LED light source, the Eaton M22-LEDC230-R delivers reliable visual status indication for industrial control panels. Its screw terminal connection and compatibility with 22.5 mm panel cutouts make it a straightforward choice for M22 series control devices.

Overview

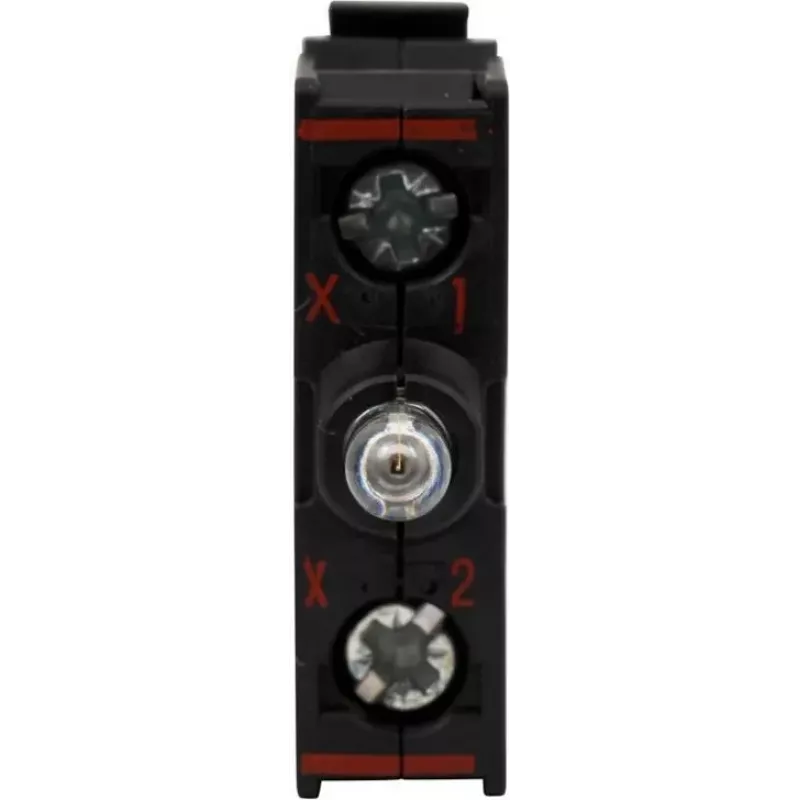

The Eaton M22-LEDC230-R is an LED indicator light element designed for rear panel mounting. It operates at 230 V AC (50/60 Hz) and features a red LED with a rated lifetime exceeding 100,000 hours. The housing is made of thermoplastic, and the terminal side has an IP20 rating. It carries CE, UL, and CSA certifications.

What stands out

• Long-life red LED for clear status indication
• Screw terminals for secure wiring
• Fits standard 22.5 mm panel cutouts
• Wide operating temperature range from -25 to +70 °C

Technical details

• Light source: LED
• Light colour: Red
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Connection: Screw terminals
• Mounting: Rear of panel
• Panel cutout diameter: 22.5 mm
• Housing material: Thermoplastic
• IP rating (terminal side): IP20
• Operating temperature: -25 to +70 °C
• Certifications: CE, UL, CSA

Our verdict

A dependable indicator element for Eaton M22 series panels, offering long LED life and simple screw-terminal installation.
