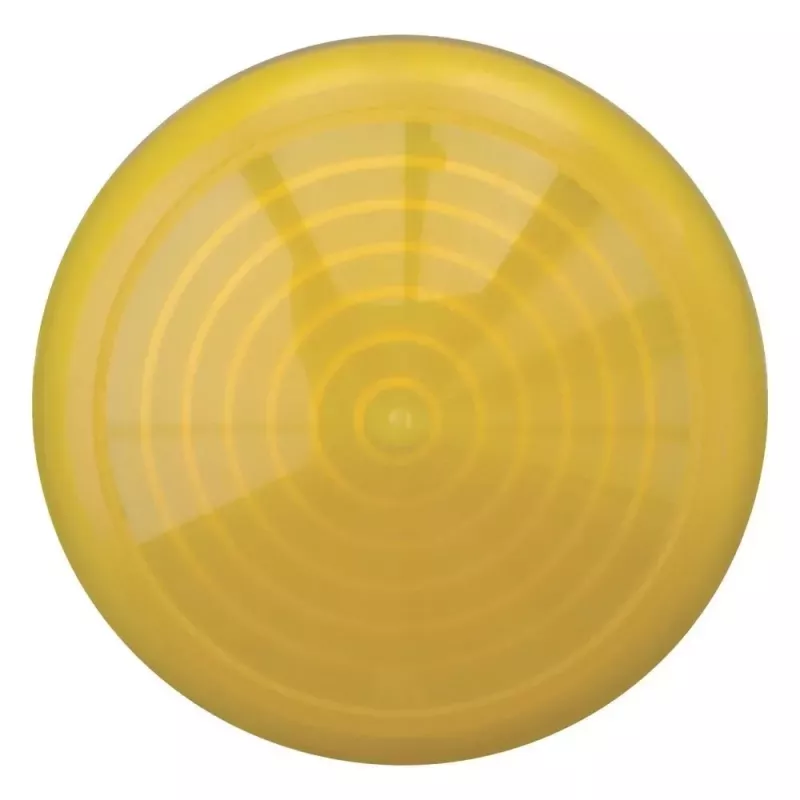

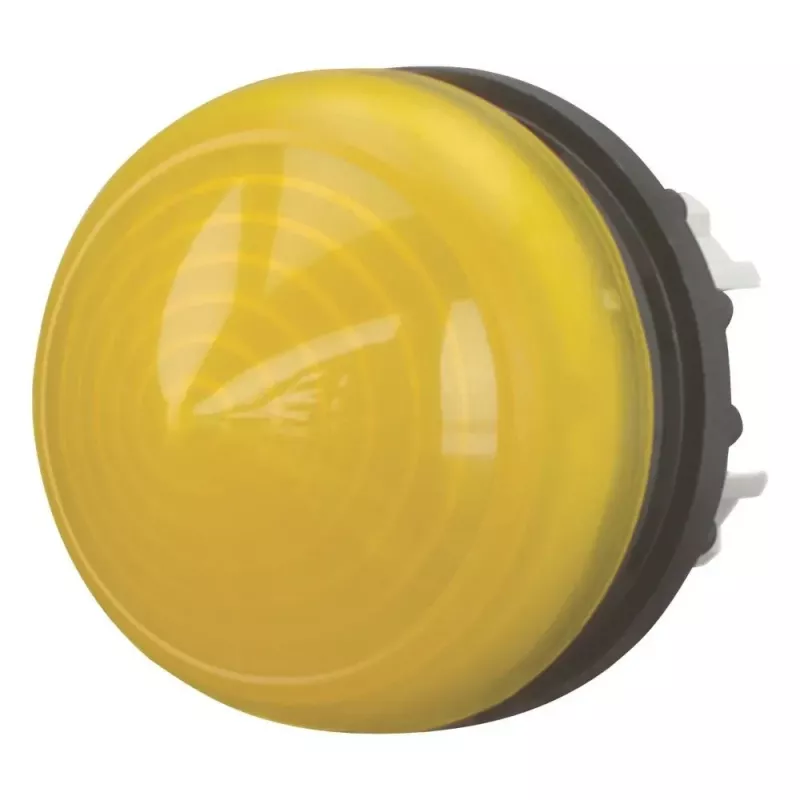

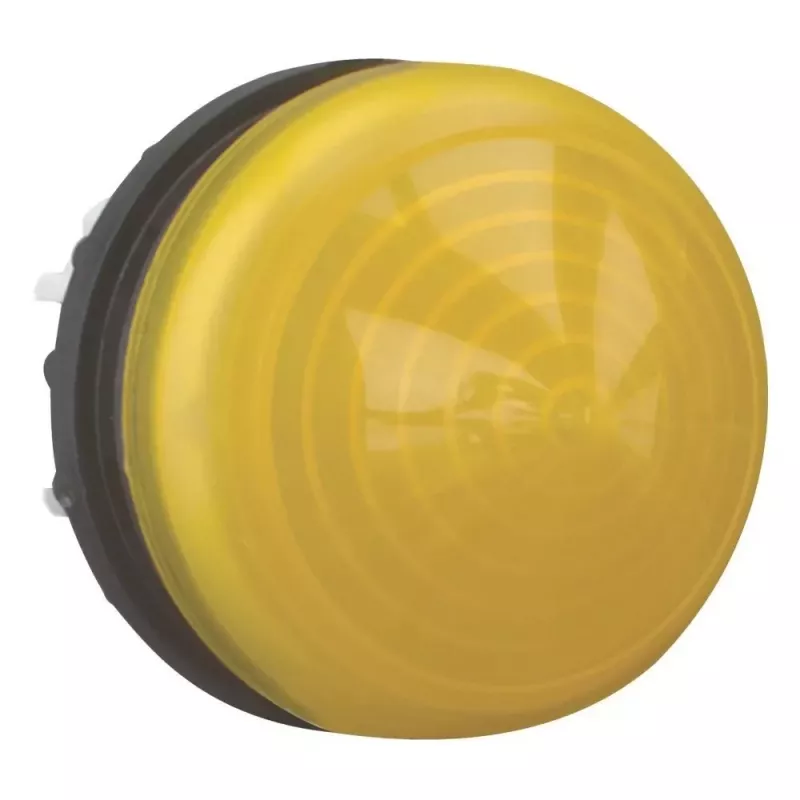

Eaton M22-LH-Y signaallamp 250 V geel 216781

Industrial control panels and machinery often require clear visual status indication. The Eaton M22-LH-Y alarm light indicator provides a bright yellow LED signal for immediate recognition of operational states or alarms in automation systems.

Key specifications

• Product Type: Indicator Light
• Light Source: LED
• Lens Colour: Yellow
• Rated Operational Voltage: 250 V AC/DC
• Mounting Diameter: 22.5 mm
• Series: Eaton RMQ-Titan (M22)
• Bezel Material: Plastic
• Front Element Design: Flush / Flat
• Protection Degree (Front): IP66, IP67, IP69K
• Ambient Operating Temperature: -25 to +70 °C
• Life Expectancy (LED): >100,000 hours

Why choose it

This indicator light is part of the RMQ-Titan series, known for robust construction and reliable performance in demanding industrial environments. The high ingress protection ratings ensure resistance to dust and water, making it suitable for washdown applications. The long-life LED reduces maintenance frequency.

Ideal use cases

• Industrial control panels
• Machinery status indication
• Automation systems
• Warning and alarm signalling

Good to know

The M22-LH-Y requires a separate lamp holder and contact block (sold separately) for complete installation. It is designed for 22.5 mm mounting holes and offers a flush front design for a clean panel appearance.
