Eaton M22-XAK1 noodstop-schild, geel, 90 mm, IP66 216465

With an IP66 ingress protection rating, this Eaton legend plate withstands harsh industrial environments while providing clear emergency stop identification.

Overview

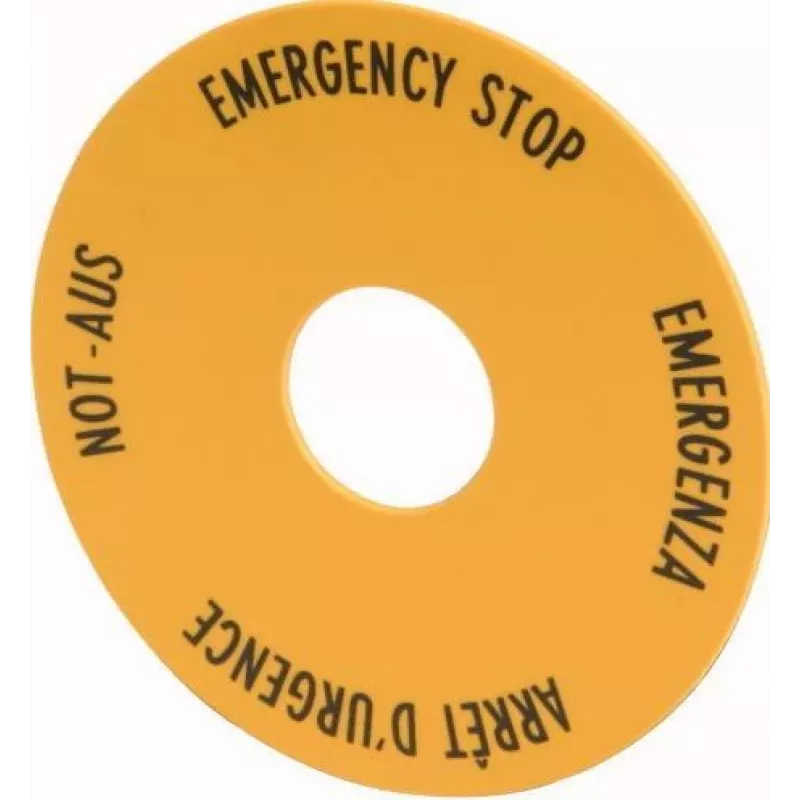

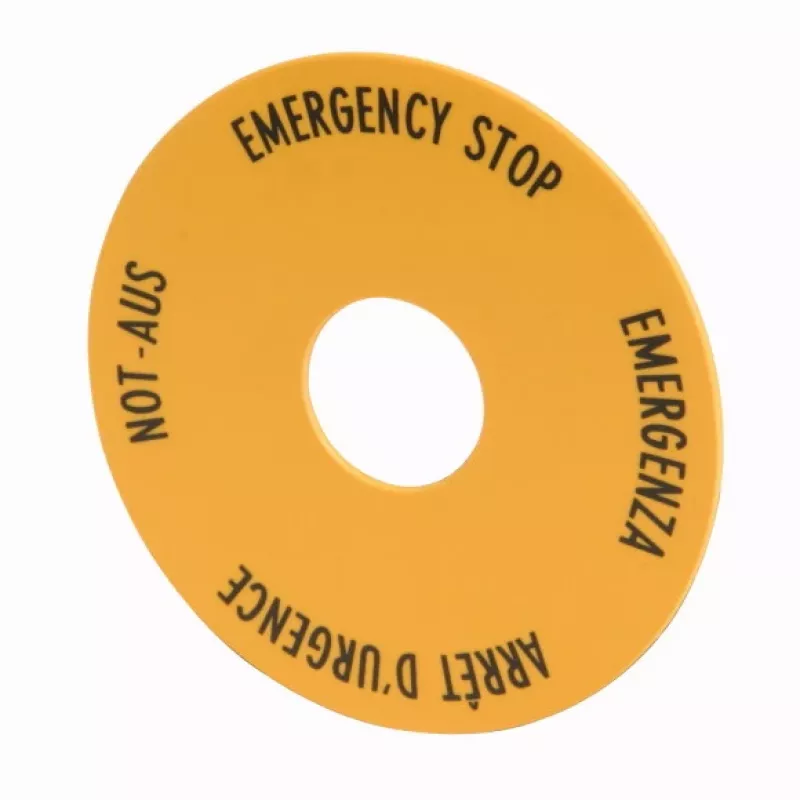

The Eaton M22-XAK1 is a round legend plate designed for emergency stop pushbuttons in the M22 series. It features a yellow plate with black inscription, displaying "NOT-AUS / EMERGENCY STOP" in German and English. The plate has an outer diameter of 90 mm and a mounting hole diameter of 22.5 mm, suitable for front panel mounting.

What stands out

• High-visibility yellow colour with black text for quick recognition
• IP66 rating protects against dust and powerful water jets
• Designed for use with sealing shrouds (e.g., Eaton M22-XGPV)
• Compatible with Eaton M22 series emergency stop pushbuttons

Technical details

• Product type: Legend Plate
• Application: Emergency Stop Pushbutton Identification
• Series: Eaton M22
• Plate colour: Yellow
• Inscription colour: Black
• Inscription text: NOT-AUS / EMERGENCY STOP
• Outer diameter: 90 mm
• Mounting hole diameter: 22.5 mm
• Ingress protection: IP66
• Material: High-grade plastic
• Mounting type: Front panel mounting
• Shape: Round
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Compliance standards: IEC/EN 60947-5-1
• Languages on plate: German, English

Our verdict

A reliable and durable legend plate that ensures clear emergency stop identification in demanding environments.
