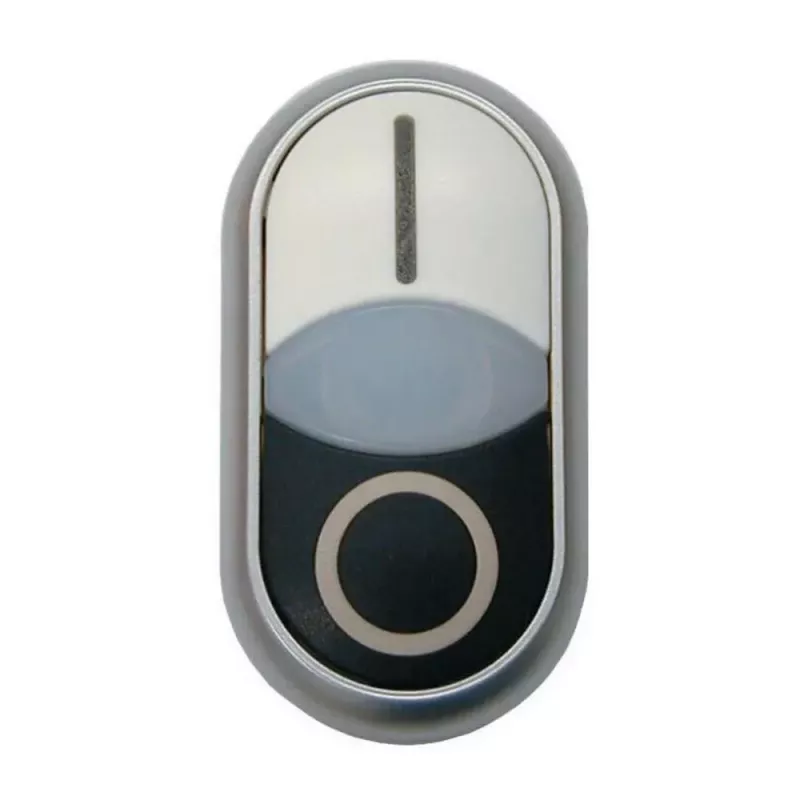

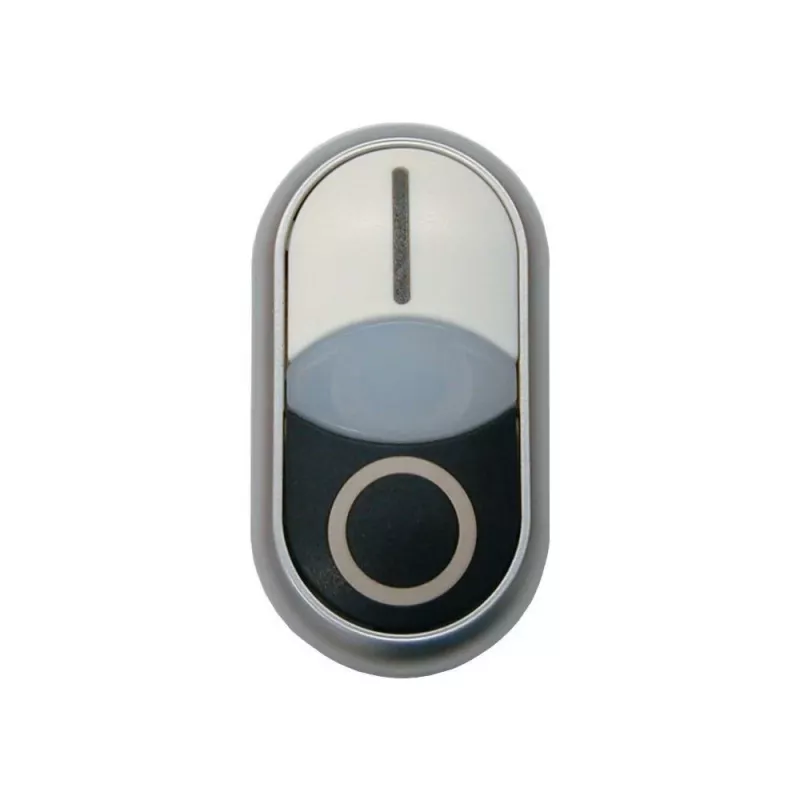

Eaton M22S-DDL-W dubbele drukknop-aandrijving, verlicht, wit 216707

Control panels often demand compact, reliable pushbuttons that combine multiple functions without sacrificing clarity. The Eaton M22S-DDL-W double pushbutton actuator addresses this by integrating two momentary buttons into a single 22.5 mm mounting hole, saving space while offering illuminated, clearly labeled control points.

Who is it for

This actuator is intended for panel builders, machine OEMs, and maintenance technicians who need a durable, space-efficient human-machine interface. It suits industrial control systems, conveyor lines, packaging machinery, and any application where operators require quick, unambiguous start/stop or up/down commands.

Main features

• Two momentary pushbuttons in one compact unit, reducing panel cutouts and wiring effort.
• White actuator body with built-in legend capability for custom labeling.
• Designed for front panel mounting with a 22.5 mm diameter, compatible with standard industrial cutouts.
• Supports illumination via separate M22 LED elements (not included).
• High mechanical life of over 5 million operations for long service intervals.
• Front protection ratings IP66, IP67, and IP69K, plus NEMA 4X and 13, ensuring resistance to dust, water, and high-pressure washdowns.
• Operating temperature range from -25 °C to +70 °C, suitable for demanding environments.

Specifications

• Product type: Double pushbutton actuator
• Series: Eaton M22
• Actuator colour: White
• Illumination: Yes (requires separate LED element)
• Actuator function: Momentary (spring-return)
• Number of actuators: 2
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Front bezel material: Plastic
• Compatibility: M22 series contact blocks and LED elements
• Legend capability: Yes, designed for M22-XC-W legends or custom labeling
• Standards: IEC/EN 60947, VDE 0660
• Mechanical life: > 5 million operations
• Degree of protection (NEMA): NEMA 4X, 13
• Mounting type: Front panel mounting

Tips

For illuminated operation, pair this actuator with an appropriate M22 LED element and a contact block. Use M22-XC-W legend plates or custom labels to mark each button's function clearly. Ensure the panel cutout is exactly 22.5 mm to maintain the specified IP ratings.
