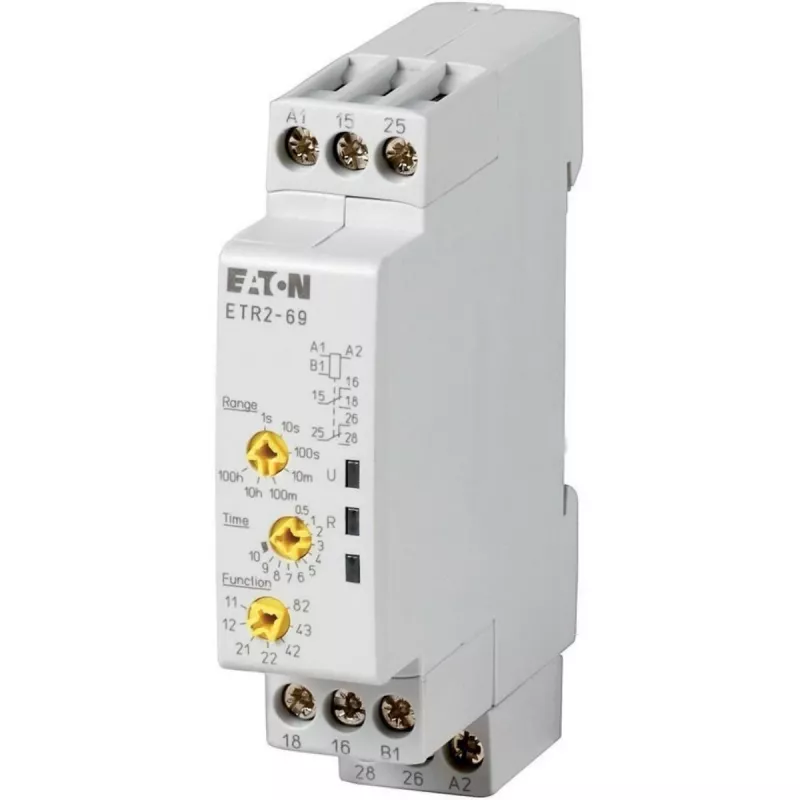

EATON multifunctioneel tijdrelais 0,5s-100h ETR2-69 (262689)

This multifunction timing relay offers seven selectable functions, including on-delay, off-delay with control input, and flashing modes, making it versatile for industrial control applications. Its wide time range from 0.05 seconds to 100 hours and supply voltage of 24-240 V AC/DC provide flexibility for various automation tasks.

Advantages

Compact 22.5 mm DIN rail housing saves space in control panels. Dual LED indicators show operating voltage and relay state for quick diagnostics. Screw terminals ensure secure wiring.

Suitable for

• Industrial automation and control systems
• Motor starting sequences
• Pulse generation and flashing signals
• Time-delayed switching in machinery

Key specifications

• Functions: 7 (on-delay, off-delay with control input, flashing symmetrical start with pulse, flashing symmetrical start with pause, single shot leading edge with control input, single shot trailing edge with control input, on-delay with control input)
• Time range: 0.05 s - 100 h (7 ranges)
• Supply voltage: 24-240 V AC/DC
• Output: 1 changeover contact (SPDT), 3 A at 230 V AC / 24 V DC
• Switching capacity: 750 VA AC, 72 W DC
• Mounting: DIN rail, 22.5 mm width
• Terminals: screw type
• Operating temperature: -25 °C to +60 °C
• Protection: IP40 housing, IP20 terminals
• Indicators: LED for operating voltage, LED for relay state

Recommendations

Ideal for panel builders and maintenance engineers needing a reliable, multi-function timing relay with a broad voltage range and easy DIN rail installation.
