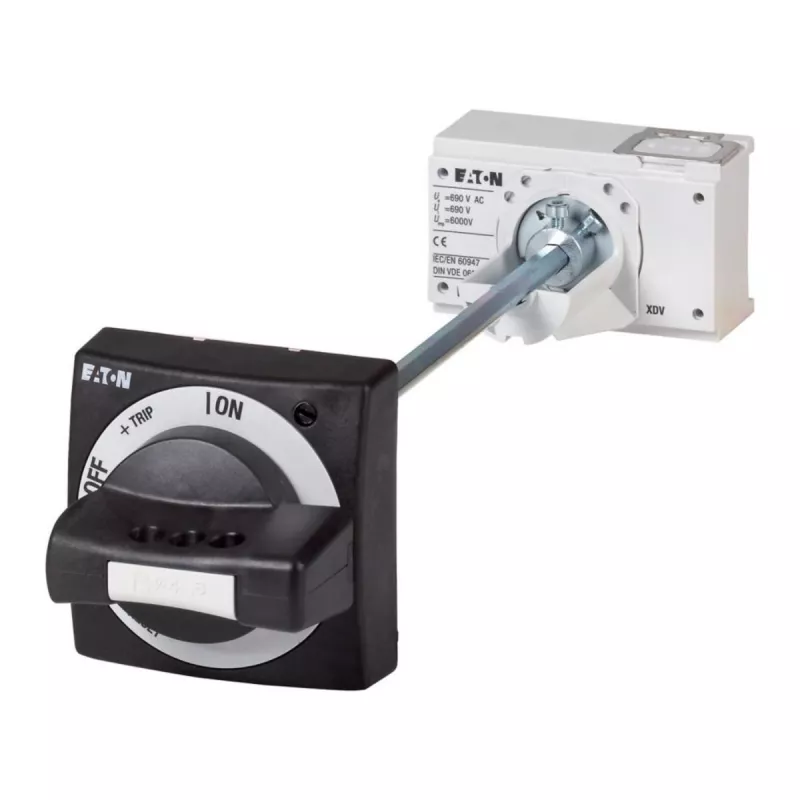

Eaton NZM1-XTVDV deurkoppeling draaigreep, afsluitbaar, zwart 260172

Lockable door coupling rotary handle for Eaton NZM1 series circuit breakers, with black insulating handle and IP66 front protection.

Overview

The Eaton NZM1-XTVDV is a door coupling rotary handle designed for operating Eaton NZM1, N(H)M1, PN1, and P(H)M1 series circuit breakers from outside an enclosure. The handle is lockable with up to three padlocks (shackle diameter up to 8 mm) and provides a clear visual indication of the breaker position. It is suitable for use as a main switch or emergency stop device.

What stands out

• Lockable in the OFF position with up to 3 padlocks for safety during maintenance
• High front protection rating of IP66, suitable for demanding industrial environments
• Compatible with a wide range of Eaton NZM1, N(H)M1, PN1, and P(H)M1 circuit breakers
• Black handle made of insulating plastic for safe operation
• Square shaft (6 x 6 mm) allows use with enclosure depths up to 600 mm

Technical details

• Product type: Door coupling rotary handle
• Compatibility: Eaton NZM1, N(H)M1, PN1, P(H)M1
• Lockable: Yes
• Padlock capacity: Up to 3 padlocks
• Max padlock shackle diameter: 8 mm
• Handle colour: Black
• Mounting position: Door-mounted
• Front protection rating: IP66
• Rear protection rating: IP20
• Shaft type: Square shaft
• Shaft dimensions: 6 x 6 mm
• Max enclosure depth (standard shaft): 600 mm
• Primary functionality: Main switch, Emergency stop
• Standards compliance: IEC/EN 60947
• Handle material: Insulating material (Plastic)
• Operating mechanism: Rotary
• Application: Industrial control, Power distribution

Our verdict

A robust and versatile door coupling rotary handle that enhances safety and convenience for Eaton NZM1 series breakers, with excellent IP66 front protection and flexible padlock locking.
