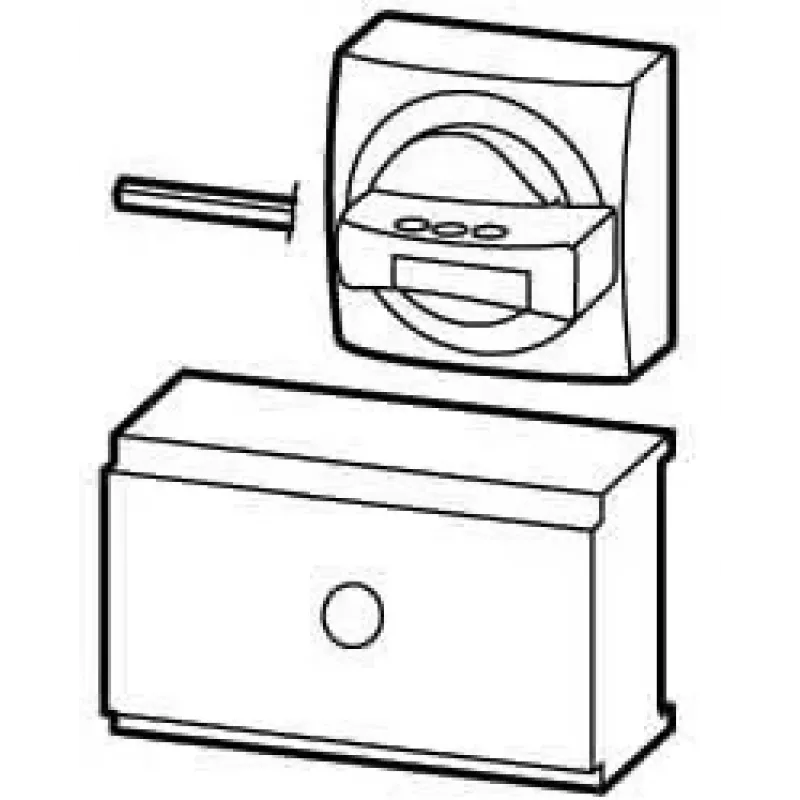

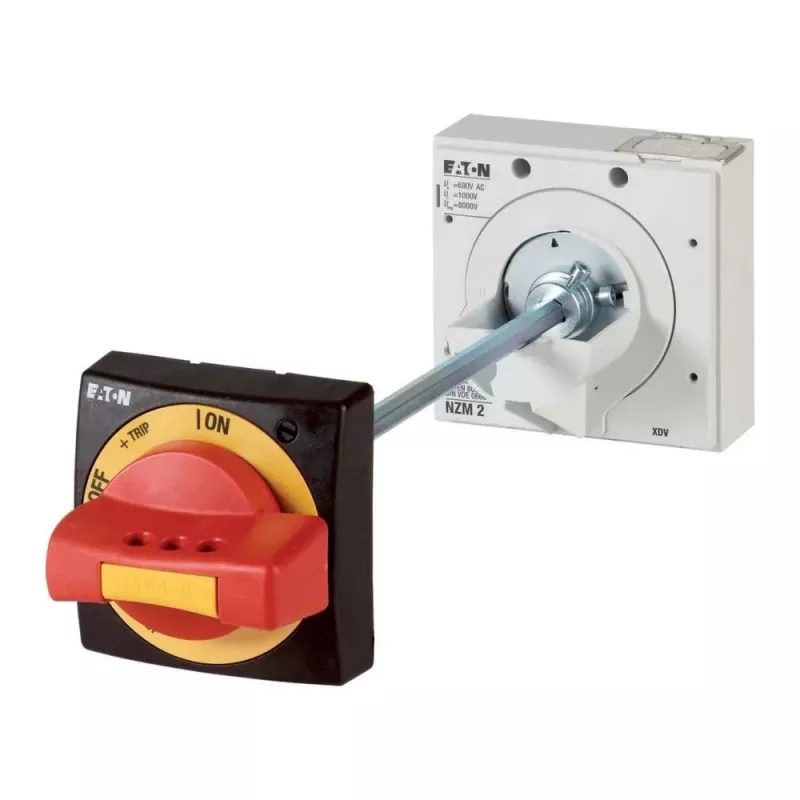

Eaton NZM2-XHBR draaigreep, rood, voor NZM2/NZM3 vermogensschakelaar 266633

For panel builders and maintenance technicians working with Eaton NZM2 or NZM3 circuit breakers, the Eaton NZM2-XHBR rotary handle provides direct front-of-panel switching control. Its red handle is clearly visible and suitable for door or front mounting, giving operators a reliable way to switch the breaker on or off and visually confirm the status.

Key specifications

• Compatible with Eaton NZM2 and NZM3 circuit breakers
• Rotary handle type, red colour
• Front or door mounting
• Front protection degree: IP66 (NEMA 4X, 12)
• Rear protection degree: IP20
• Padlockable, supports up to 3 padlocks with shackle diameter 4-8 mm
• Indication: ON/OFF/TRIP
• Material: high-grade plastic
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C

Why choose it

This handle is engineered for safe and convenient operation of Eaton NZM circuit breakers. Its robust construction and IP66 front protection make it suitable for demanding industrial environments, while the padlockable feature allows lockout/tagout procedures to enhance safety during maintenance.

Ideal use cases

• Industrial control panels
• Machine building
• Power distribution boards
• Emergency stop applications when paired with appropriate breaker

Good to know

The handle complies with IEC/EN 60947 and is designed for use as a main switch or emergency stop device when combined with a suitable circuit breaker. It is not a standalone circuit breaker; it is an accessory for NZM2/NZM3 series breakers.
