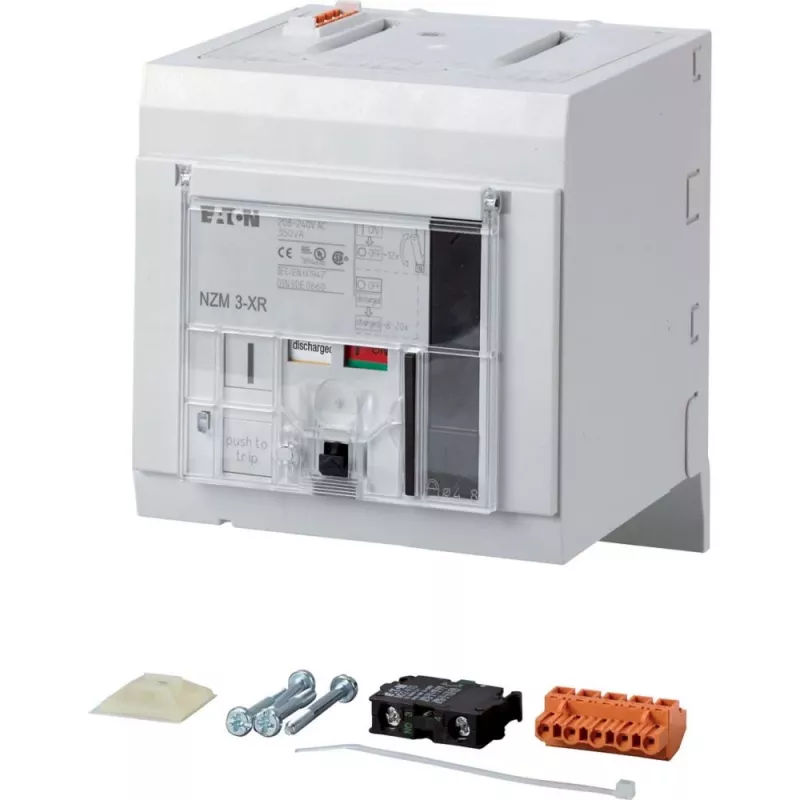

Eaton NZM3-XR208-240AC afstandsbediening motor 259850

The Eaton NZM3-XR208-240AC remote motor operator brings electrical remote control to NZM3 series circuit breakers, enabling ON/OFF switching and reset after trip from a distance. Unlike manual operation, this unit allows integration into automated power distribution and motor control systems, reducing the need for on-site intervention.

Highlights

• Remote ON/OFF switching and reset after trip for NZM3 circuit breakers
• Operating voltage: 208-240 V AC, 50/60 Hz
• Direct mounting to compatible circuit breakers
• Integrated auxiliary contacts for status indication
• Designed for industrial power distribution and automation

In daily use

Mounted directly onto an NZM3 circuit breaker, the motor operator responds to electrical control signals to open or close the breaker contacts. After a trip, it can reset the breaker remotely, restoring power without manual handling. Auxiliary contacts provide feedback on breaker position, supporting monitoring and interlocking in control circuits.

Full specifications

• Product type: Remote Motor Operator
• Compatible series: Eaton NZM3
• Operating voltage: 208-240 V AC
• Operating frequency: 50/60 Hz
• Control method: Electrical remote control
• Mounting type: Direct mounting to circuit breaker
• Auxiliary contacts: Integrated for status indication
• Degree of protection: IP20
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +80°C
• Degree of pollution: 3
• Rated impulse withstand voltage: 6 kV
• Rated insulation voltage: 500 V
• Colour: Grey/Black

Final note

For remote control of NZM3 circuit breakers in industrial environments, the NZM3-XR208-240AC provides reliable switching and reset functionality with integrated status feedback.
