EATON P1-32/EA/SVB hoofdschakelaar 3-polig 32A opbouwmontage noodstopfunctie 081438

This main switch from EATON provides reliable load disconnection with a 3-pole configuration and a rated operational current of 32 A. It features an emergency-off function in the 0 position, making it suitable for safety-relevant circuits.

Advantages

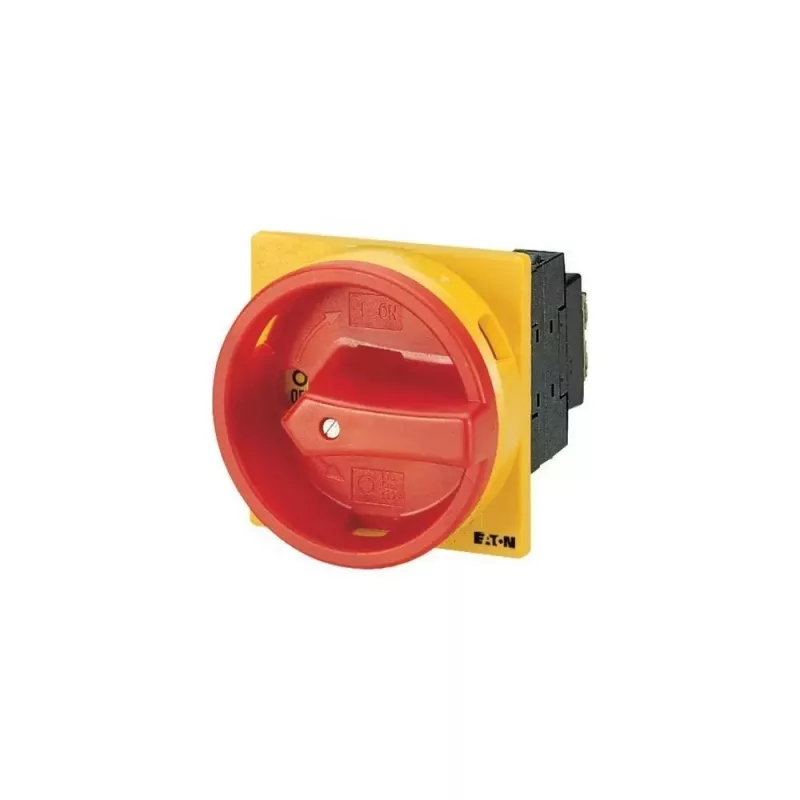

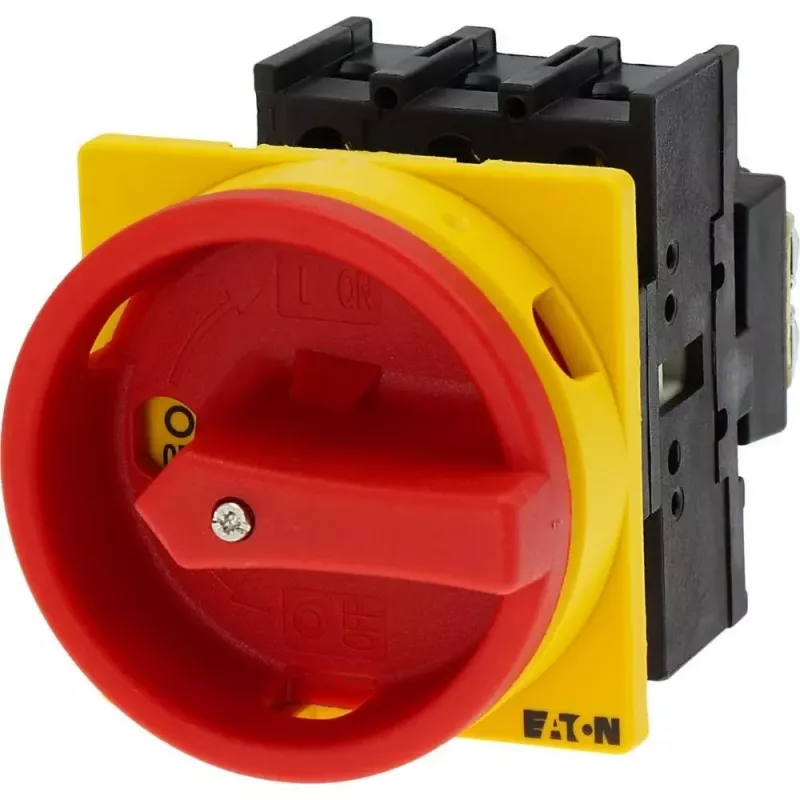

The switch is designed for surface mounting in an insulated enclosure, offering IP65 protection against dust and water jets. The red handle on a yellow front plate ensures clear visibility and quick operation. It can be locked in the OFF position with up to three padlocks, preventing unauthorized re-energization during maintenance.

Suitable for

• Industrial control panels requiring a main disconnector
• Machinery with emergency stop circuits
• Distribution boards in harsh environments

Key specifications

• Rated operational current: 32 A
• Number of poles: 3
• Rated operational voltage: 690 V AC
• Mounting type: Surface mounting
• Degree of protection: IP65

Recommendations

For applications requiring a lockable main switch with emergency-off functionality, this EATON model offers a robust and compliant solution. Verify terminal capacity and enclosure compatibility before installation.
