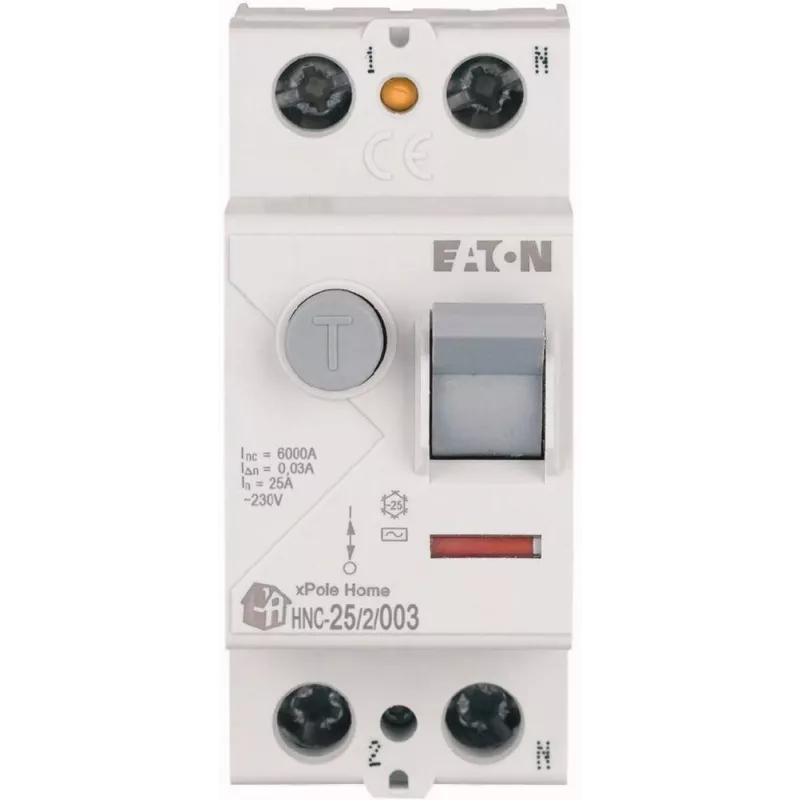

EATON PFL6 aardlekschakelaar 25A 2P 30mA AC 6kA

The EATON PFL6 RCCB is a high-quality residual current circuit breaker designed for reliable protection against earth faults. With a rated current of 25A and a rated residual operating current of 30mA, it ensures safety in residential and commercial installations. This 2-pole device is suitable for DIN rail mounting and complies with IEC/EN 61008 standards.

Advantages

Compact 2-module design saves space in distribution boards. High breaking capacity of 6kA provides robust protection. Instantaneous tripping characteristic ensures fast response to residual currents. Durable construction with over 10,000 electrical and 20,000 mechanical operations.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control systems
• Protection against indirect contact and fire risk

Key specifications

• Device Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2-Pole
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Residual Current Type: AC
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 2 Modules (36 mm)
• Degree of Protection: IP20 (Terminals), IP40 (Installed)
• Operating Temperature Range: -25 to +40 °C
• Terminal Capacity: 1.5 - 25 mm² (Solid/Stranded)
• Standards: IEC/EN 61008
• Electrical Endurance: > 10,000 operations
• Mechanical Endurance: > 20,000 operations
• Tripping Characteristic: Instantaneous
• Series: PFL6

Recommendations

For optimal protection, pair this RCCB with a compatible MCB from the same series. Ensure proper installation by a qualified electrician.
