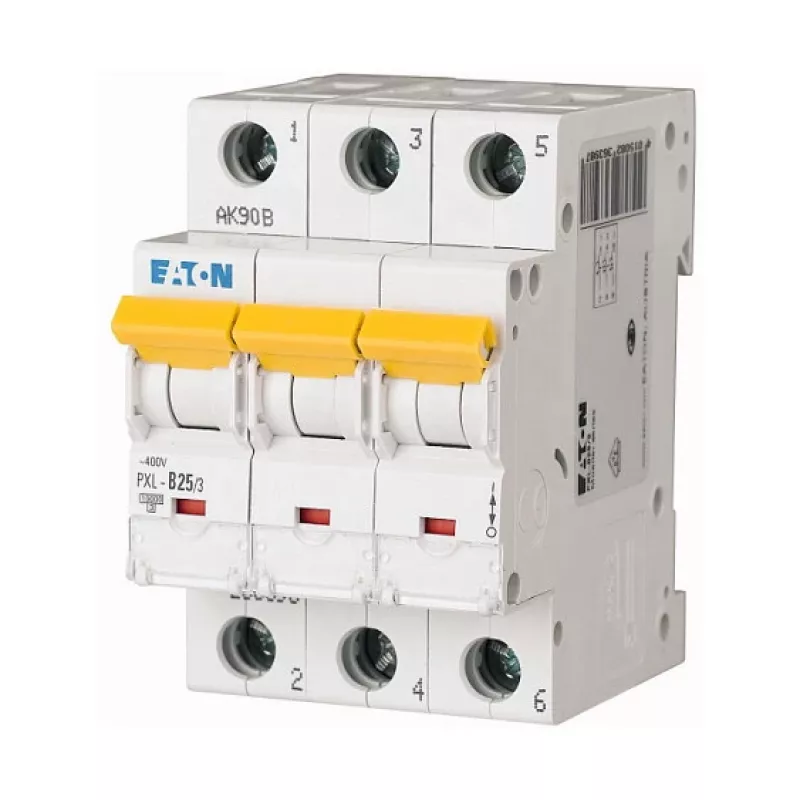

EATON PXL-B25/3 installatieautomaat 3-polig 25A type B 10kA

With a 10 kA short-circuit breaking capacity, the EATON PXL-B25/3 delivers robust protection for commercial and industrial circuits. This 3-pole miniature circuit breaker handles 25 A rated current with Type B tripping, ensuring reliable operation for lighting and socket outlets.

Overview

The EATON PXL-B25/3 is a high-performance MCB designed for DIN rail mounting. It provides overload and short-circuit protection in three-phase systems, operating at 230/400 V AC. The breaker complies with IEC/EN 60898-1 and features energy limiting class 3 for enhanced safety.

What stands out

• 3-pole design for three-phase circuits
• Type B tripping characteristic for standard loads
• High 10 kA breaking capacity for demanding environments
• Wide terminal capacity: 1-25 mm² solid/stranded, 1-16 mm² flexible
• Dual protection: IP20 terminals, IP40 front with cover
• Long service life: >20,000 mechanical, >10,000 electrical operations

Technical details

• Rated current: 25 A
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Operating temperature: -25 to +75 °C
• Impulse withstand voltage: 4 kV
• Pollution degree: 2
• Standard: IEC/EN 60898-1

Our verdict

The EATON PXL-B25/3 combines high breaking capacity with reliable Type B protection, making it an excellent choice for commercial and industrial three-phase installations where safety and durability are paramount.
