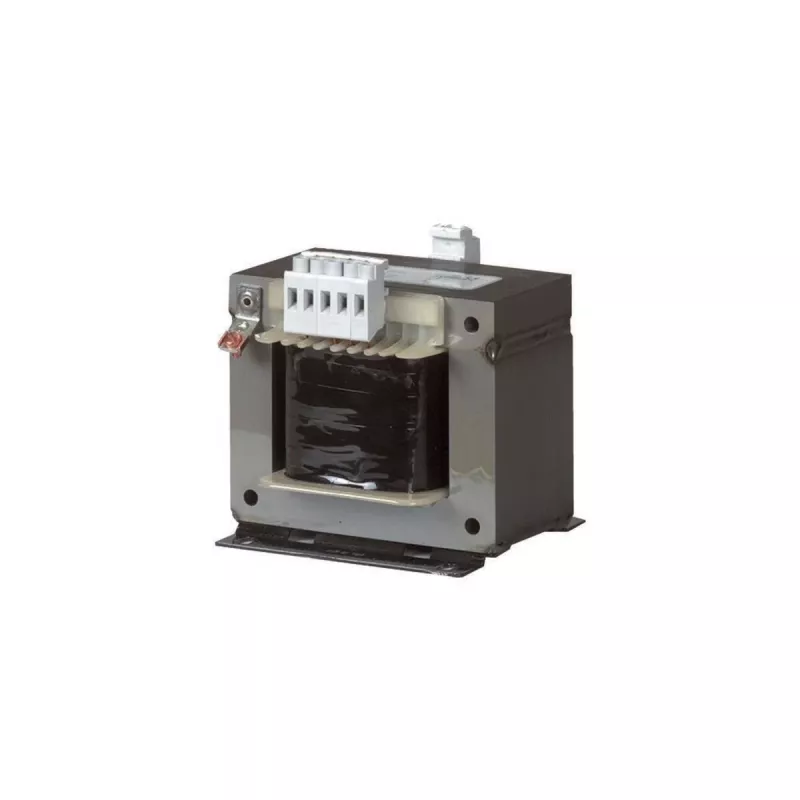

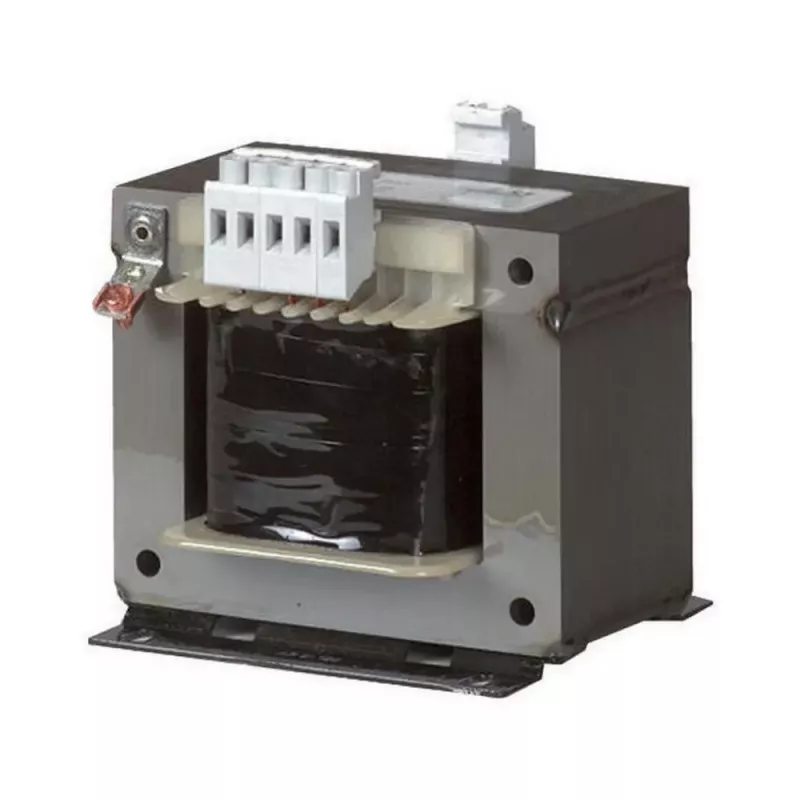

Eaton STN0.16 besturingstransformator 160 VA 230/24 V AC 204947

Control transformer for industrial control circuits, delivering 160 VA of isolated power from a 230 V AC primary to a 24 V AC secondary. The STN0.16 is inherently short-circuit proof and built for reliable operation in demanding environments.

Advantages

Single-phase transformer with screw terminals for secure wiring and natural convection cooling. Its open construction allows efficient heat dissipation, while the insulation class B supports operation up to 40 °C.

Suitable for

• Machine control panels
• Industrial automation systems
• Building services control circuits

Key specifications

• Rated power: 160 VA
• Primary voltage: 230 V AC
• Secondary voltage: 24 V AC
• Frequency: 50/60 Hz
• Number of phases: single-phase
• Insulation class: B
• Mounting type: screw mounting
• Terminal type: screw terminals
• Transformer type: control transformer
• Short-circuit protection: inherently short-circuit proof
• Cooling method: natural convection
• Construction: open type
• Operating temperature range: -25 to +40 °C

Recommendations

Install in a protected enclosure to prevent accidental contact, as the transformer has an IP00 protection degree.
