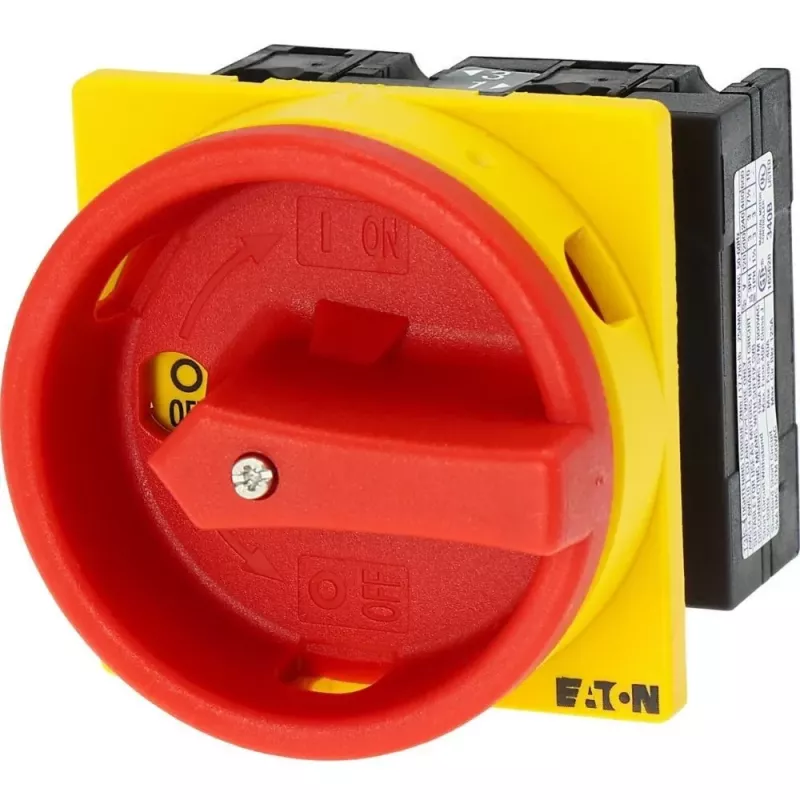

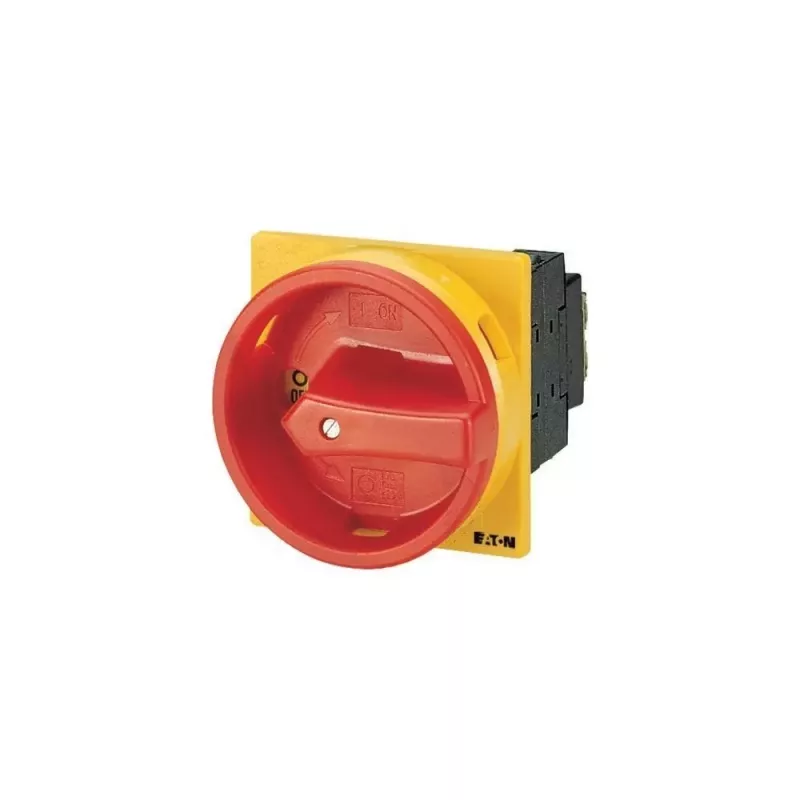

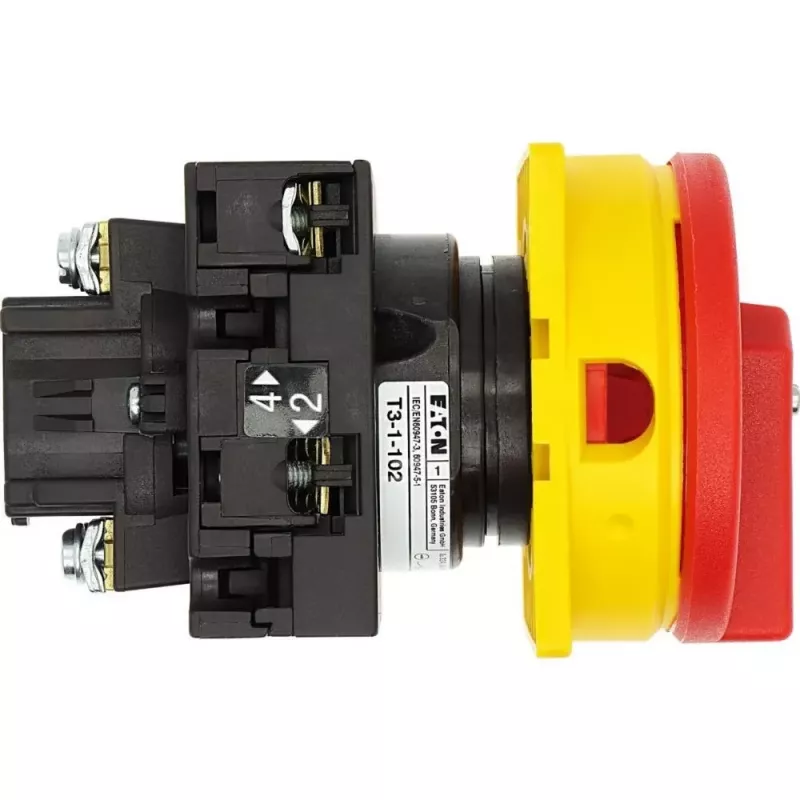

Eaton T3-1-102/EA/SVB nokkenschakelaar, 3-polig, 32 A, afsluitbaar, geel/rood

The Eaton T3-1-102/EA/SVB stands out among cam switches with its robust lockable design, allowing secure isolation in the OFF position with up to three padlocks. This 3-pole switch is engineered for demanding industrial environments, providing a reliable main or maintenance switch solution rated at 32 A. Its compact 48 x 48 mm front plate and IP65 protection make it suitable for flush mounting in control panels where space and safety are critical.

Highlights

• Lockable in position 0 (OFF) for safe maintenance, accommodating up to 3 padlocks
• Rated uninterrupted current of 32 A with 3-pole configuration and 90° switching angle
• IP65 front protection against dust and water jets
• High electrical ratings: insulation voltage 690 V, impulse withstand 6000 V
• Motor rating up to 15 kW at 400 V AC-23A
• Distinctive yellow handle on red front plate for clear status indication

In daily use

This cam switch is ideal for motor control, heating, lighting, and as a main switch in machinery. The maintained (latching) operation ensures the switch stays in the selected position, while the lockable OFF position prevents accidental re-energization during service. Screw terminals provide secure wiring, and the flush mounting design integrates neatly into panels. Compliance with IEC/EN 60947 and VDE 0660 guarantees performance and safety.

Full specifications

• Switch type: Cam switch
• Function: Main switch / Maintenance switch
• Rated uninterrupted current (Iu): 32 A
• Number of poles: 3
• Switching positions: 3 (1-0-2)
• Switching angle: 90°
• Operation type: Maintained (latching)
• Locking feature: Lockable in position 0, max 3 padlocks
• Mounting type: Flush mounting
• Front plate dimensions: 48 x 48 mm
• Handle color: Yellow
• Front plate color: Red
• Degree of protection (front): IP65
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6000 V

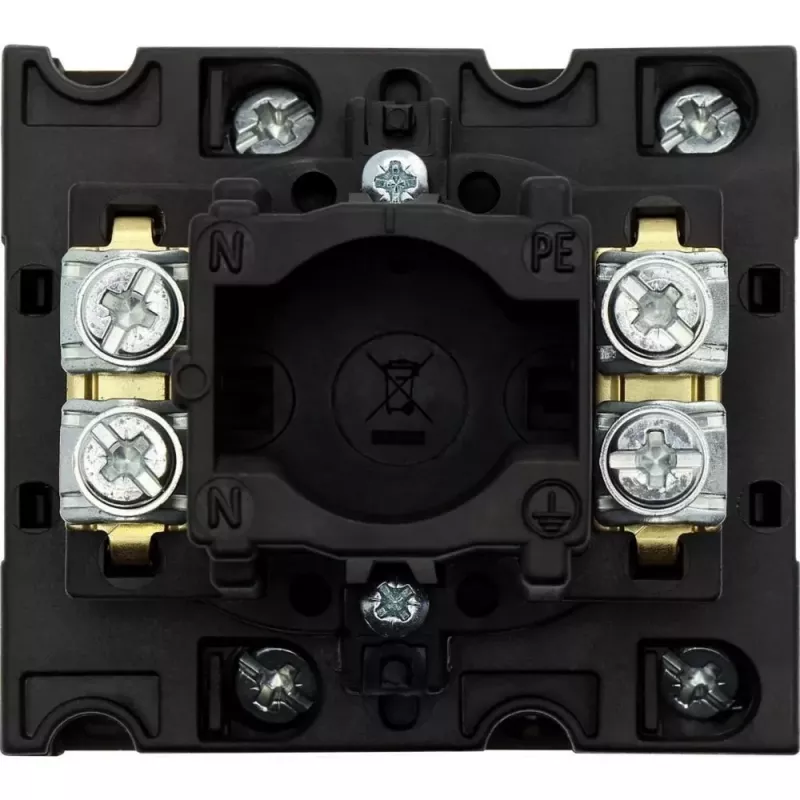

• Connection type: Screw terminals
• Motor rating (AC-23A, 400V): 15 kW
• Standards: IEC/EN 60947, VDE 0660
• Series: T3

Final note

For a dependable and safe switching solution in industrial control, the Eaton T3-1-102/EA/SVB delivers robust performance and essential lockout capability, ensuring peace of mind in critical applications.
