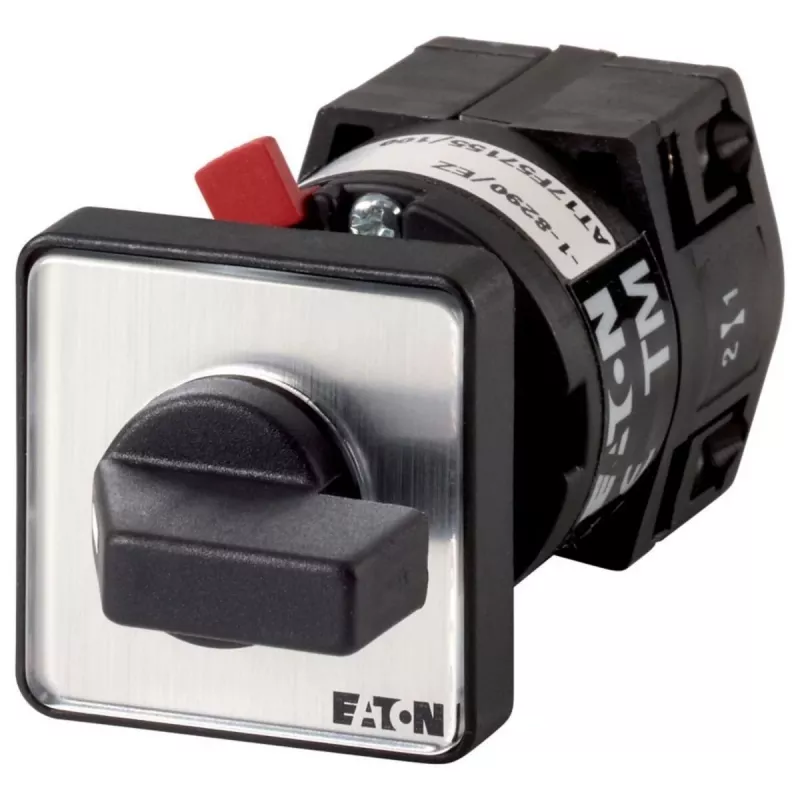

Eaton TM-1-8290/EZ nokkenschakelaar 1-polig 20A 690V AC zwart/wit 000693

Control panels and industrial machines often need a robust switch that can handle frequent operation without failure. The Eaton TM-1-8290/EZ is a rotary cam switch built for exactly that. With a 1-pole configuration and a 90° switching angle, it provides a clear OFF-ON function (0-1) that is easy to see and operate. The black actuator contrasts with the white front plate, making the switch position obvious at a glance.

Key specifications

• Switch type: Rotary cam switch
• Number of poles: 1
• Number of positions: 2 (0-1)
• Switching angle: 90°
• Rated operational current (AC-21A, 230V): 20 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: Front panel mount (central mounting)
• Connection type: Screw terminals
• Protection class (front): IP65
• Protection class (terminals): IP20
• Switching function: Maintained (latching)
• Standard compliance: IEC/EN 60947
• Ambient operating temperature: -25 to +50 °C

Why choose it

This switch is designed for reliability in demanding environments. The IP65 front protection means it can withstand dust and water jets, making it suitable for use in harsh industrial settings. The screw terminals provide secure connections, and the latching mechanism ensures the switch stays in the selected position until intentionally changed.

Ideal use cases

• Control circuits in industrial machinery
• Motor control panels
• Heating and ventilation systems
• Any application requiring a robust ON-OFF switch

Good to know

The switch complies with IEC/EN 60947, ensuring it meets international safety and performance standards. It is a front panel mount device, so it is installed through a hole in the panel with the actuator protruding for easy operation. The black and white colour scheme provides high visibility.
