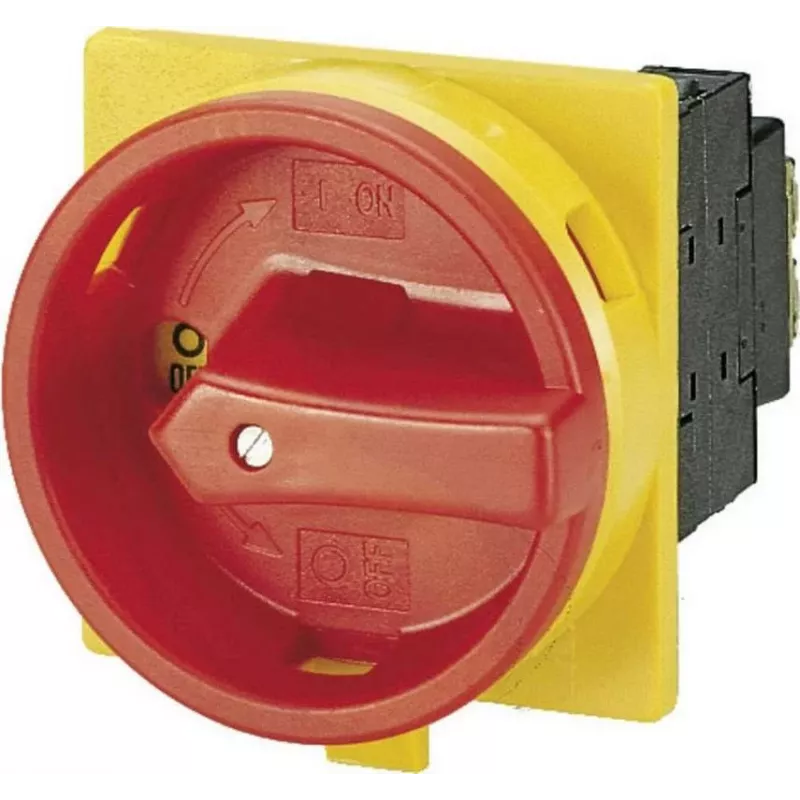

Eaton TM-1-8291/E/SVB 2-polige draailastscheider, 25 A, IP65, rood/geel 045478

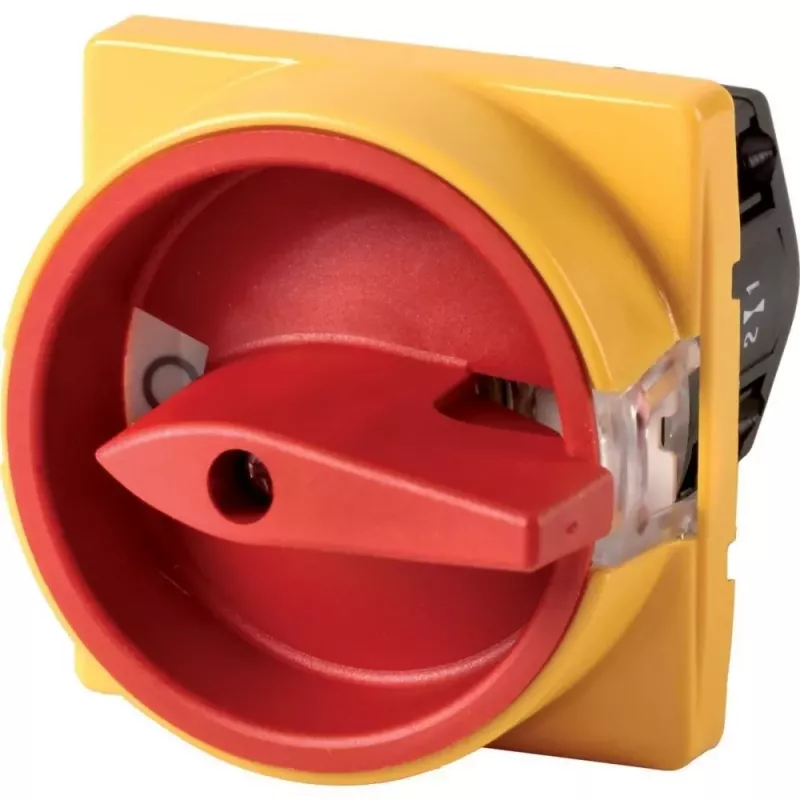

This Eaton TM-1-8291/E/SVB is a 2-pole rotary disconnect switch with a rated operational current of 25 A and IP65 protection, making it suitable for industrial control and load isolation. The red rotary handle and yellow front plate provide clear visual status indication, while the switch is lockable in the OFF position for safety during maintenance.

Advantages

The switch offers reliable switching with a high rated impulse withstand voltage of 6 kV and a short-circuit breaking capacity of 1 kA for 1 second. Its screw terminals ensure secure wiring, and the robust design meets UL 508, CSA, and IEC/EN 60947-3 standards.

Suitable for

• Industrial machinery and control panels
• Motor disconnect applications
• HVAC and pumping systems
• Any application requiring a lockable main switch

Key specifications

• Number of poles: 2
• Rated operational current: 25 A (AC-21A)
• Rated operational voltage: 690 V AC
• Ingress protection: IP65
• Actuator type: Rotary handle (red)
• Front plate colour: Yellow
• Mounting type: Surface mounting
• Switching function: ON/OFF (0-1)
• Lockable in OFF position with padlock
• Terminal type: Screw terminals
• Standards: UL 508, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94, IEC/EN 60947-3, CE
• Ambient operating temperature: -25°C to +50°C

Recommendations

For reliable load isolation in harsh environments, pair this switch with appropriate cable glands to maintain the IP65 rating. Ensure the mounting surface is flat and stable to prevent stress on the enclosure.
