Eaton universele behuizing 150 x 187,5 x 250 mm polycarbonaat grijs CI23X-125 10408

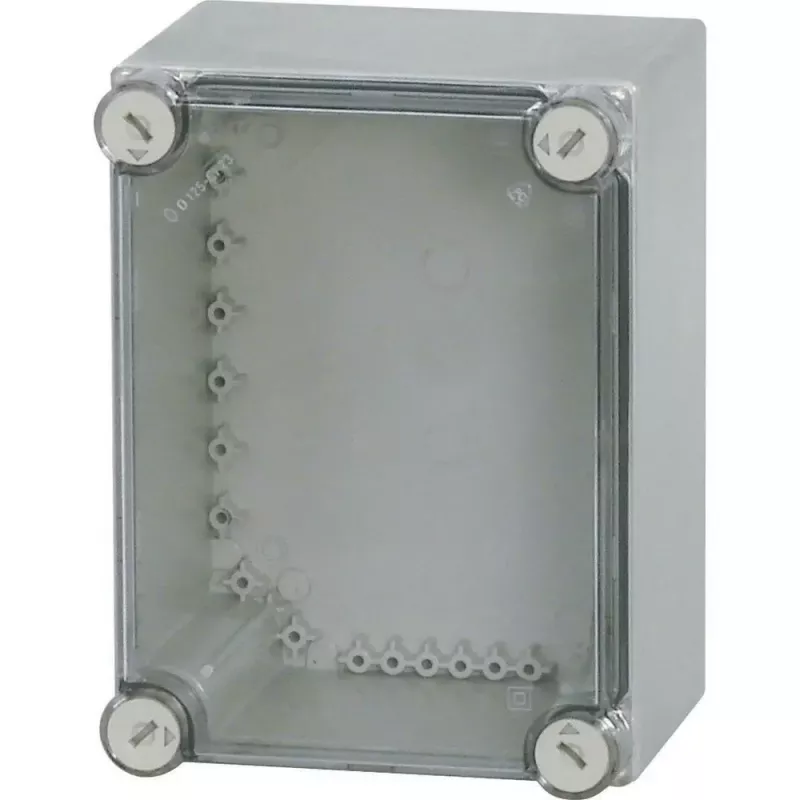

Industrial electrical enclosure crafted from polycarbonate, offering robust protection for electrical distribution and control systems. Its solid grey housing provides reliable insulation and impact resistance for demanding environments.

Advantages

Polycarbonate construction delivers high impact resistance and excellent electrical insulation. The enclosure is halogen-free and supports a wide operating temperature range from -35 to +80 °C, making it suitable for harsh industrial conditions.

Suitable for

• Industrial control systems
• Electrical distribution applications
• Wall-mounted installations

Key specifications

• External dimensions: 150 mm depth × 187.5 mm width × 250 mm height
• Material: Polycarbonate
• Colour: Grey
• Flammability rating: UL 94 V-2
• Mounting type: Wall mounting
• Door type: Opaque (solid)
• Number of doors: 1
• Gland plates: With metric knockouts
• Rated insulation voltage: Up to 1000V AC / 1500V DC
• Halogen-free: Yes

Recommendations

Ideal for protecting electrical components in industrial settings where durability and insulation are critical.
