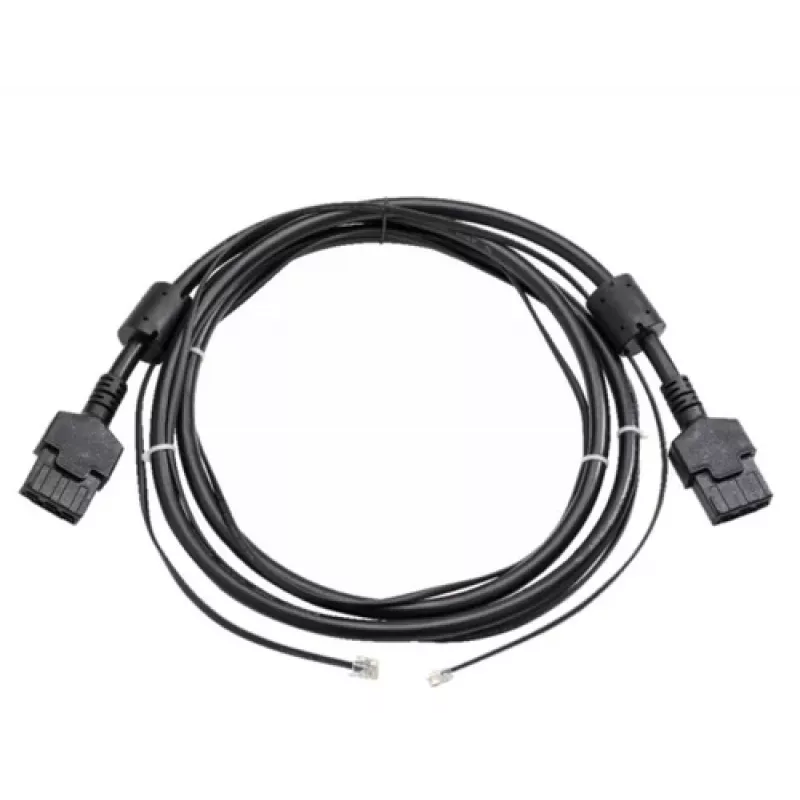

Eaton UPS-naar-accu-verlengkabel voor 48V-uitbreidingsaccu, 2 m (6,6 ft.)

The Eaton UPS to Battery Extension Cable for 48V Extended Battery Module is a high-quality, proprietary cable designed to connect Eaton 9PX and 9PXM UPS systems to their compatible 48V Extended Battery Modules (EBMs). This 2-meter (6.6 ft.) cable provides flexibility in placing the EBM away from the UPS, optimizing space and improving airflow in server rooms or data centers. Built with copper conductors and PVC jacket, it ensures reliable power transmission and durability.

Advantages

This extension cable allows for greater placement flexibility, enabling you to position the battery module in a convenient location without being constrained by the UPS proximity. It supports high current discharge required for UPS battery backup, ensuring your critical equipment remains powered during outages. The double insulation and RoHS compliance guarantee safety and environmental responsibility.

Suitable for

• Eaton 9PX and 9PXM UPS series
• Eaton 48V Extended Battery Modules (EBMs)
• Data centers, server rooms, and network closets requiring extended battery backup

Key specifications

• Product Type: Battery Extension Cable
• Cable Length: 2 m (6.6 ft.)
• Voltage Rating: 48V DC
• Connector Type: Proprietary Eaton (both ends)
• Conductor Material: Copper
• Jacket Material: PVC
• Color: Black
• Current Capacity: High Current
• Certifications: RoHS Compliant
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -15°C to 50°C (5°F to 122°F)
• Humidity Range: 0-95% non-condensing
• Package Contents: 1x 48V EBM Cable

Recommendations

For optimal performance, use only with Eaton 9PX or 9PXM UPS and compatible 48V EBM. Ensure the cable is securely connected and not subjected to sharp bends or excessive tension. This cable is designed for indoor use only.
