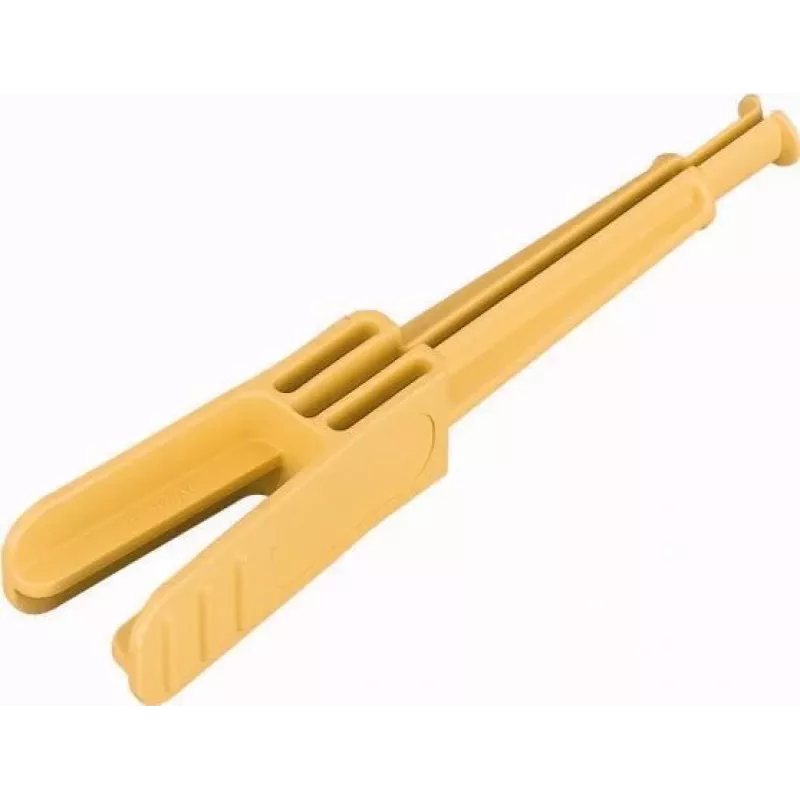

Eaton Z-D0-PE-Z adereindhuls-krimptang (114324)

Electricians and panel builders use the Eaton Z-D0-PE-Z ferrule crimping pliers to create square crimps on wire end ferrules from 0.5 to 2.5 mm² (20–14 AWG). The self-adjusting mechanism automatically matches the ferrule size, while the ratchet ensures a complete, consistent crimp every time.

Key specifications

• Tool type: Ferrule crimping pliers
• Crimping range: 0.5 – 2.5 mm²
• AWG range: 20 – 14 AWG
• Crimping profile: Square crimp
• Adjustment: Self-adjusting to ferrule size
• Mechanism: Ratchet mechanism for consistent crimps
• Material: High-quality tool steel
• Handle material: Ergonomic plastic
• Handle colour: Red/Black
• Length: Approx. 190 mm
• Durability: Robust construction for long service life
• Safety feature: Release mechanism in case of incorrect operation
• Standards compliance: Conforms to DIN 46228 Part 1 + 4
• Number of crimping stations: 1 (self-adjusting)

Why choose it

The ratchet mechanism prevents incomplete crimps and the self-adjusting design eliminates the need for manual die changes, speeding up production in control cabinet assembly.

Ideal use cases

• Crimping insulated and uninsulated wire end ferrules in industrial control panels
• Preparing conductors for terminal blocks in electrical installations
• Field service work where reliable, repeatable crimps are required

Good to know

The release mechanism allows the jaws to be opened at any time, preventing damage to the tool or workpiece if a ferrule is misaligned.
