EFB Elektronik 19 inch wandbehuizing 26U diepte 800 mm voorgemonteerd RAL7035

In server rooms where floor space is at a premium, the EFB Elektronik 26U wall-mount cabinet keeps your 19" equipment secure and organized. Mounted directly on the wall, this pre-assembled enclosure offers 800 mm of usable depth for switches, patch panels, and servers, while its light grey RAL 7035 finish blends into any technical environment.

Key specifications

• 26 rack units (U) for 19" equipment
• External dimensions: 600 mm width, 800 mm depth, 1200 mm height
• Pre-assembled steel sheet construction with powder-coated finish

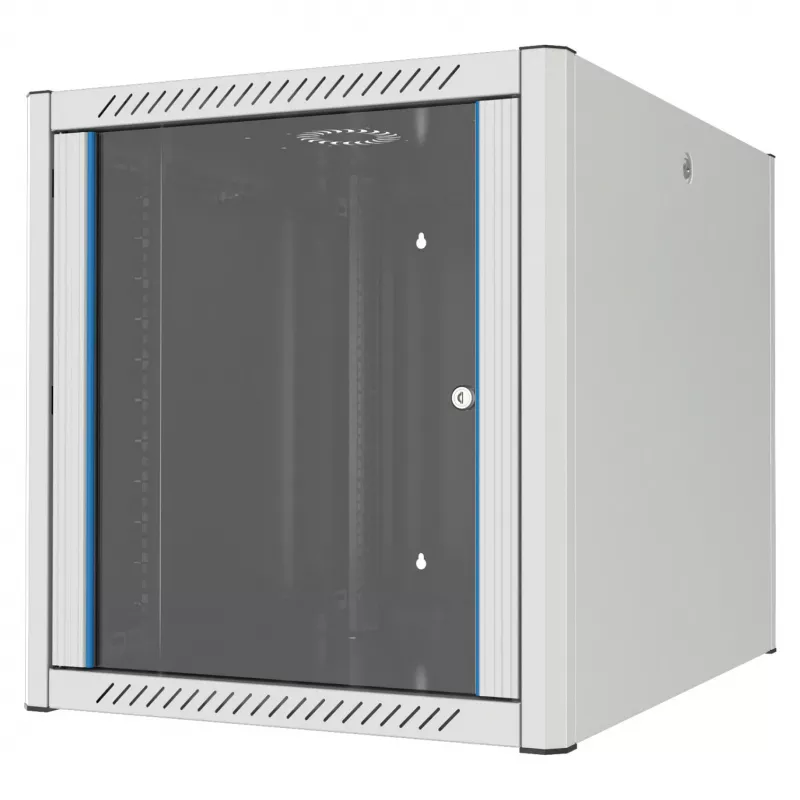

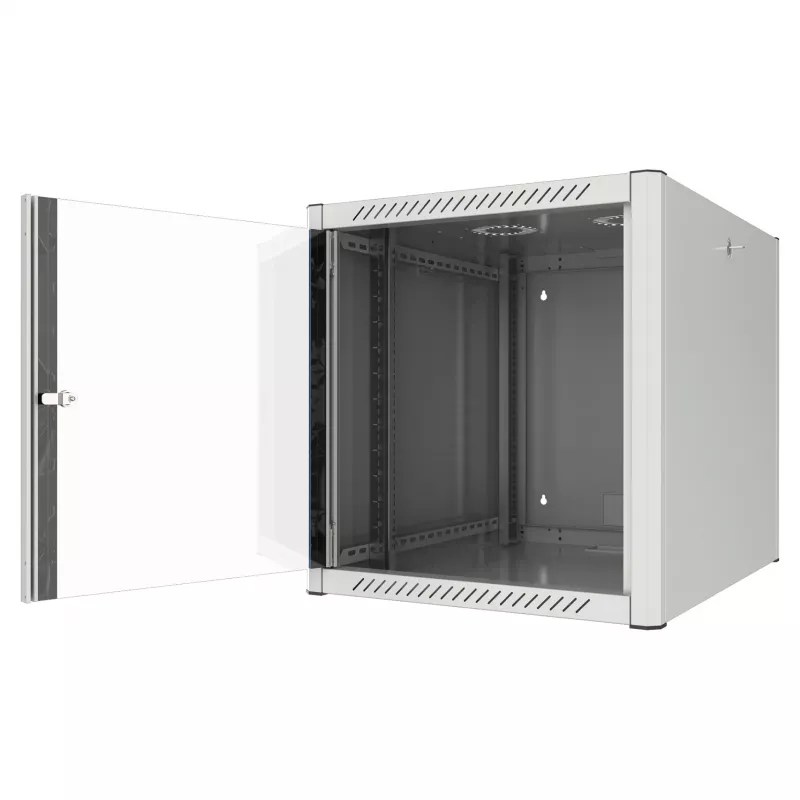

• Lockable safety glass front door with 180° opening angle
• Removable and lockable side panels for easy access
• Top and bottom cable entry with brush strips
• Two pairs of depth-adjustable 19" mounting profiles
• Static load capacity: 100 kg
• IP20 protection class
• Passive ventilation, prepared for fan unit
• Grounding kit and wall mounting bracket included

Why choose it

This cabinet saves valuable floor space while providing full 19" mounting depth. The lockable glass door and side panels protect against unauthorized access, and the pre-assembled design means you can install it right out of the box. The brush strips keep cables tidy and dust out, and the adjustable mounting profiles let you position your equipment exactly where you need it.

Ideal use cases

• Small offices and branch locations needing a secure network enclosure
• Industrial environments where floor space is limited
• Wall-mounting of patch panels, switches, and compact servers
• IT closets and technical rooms with wall space available

Good to know

The cabinet is delivered pre-assembled, so no complex assembly is required. The grounding kit ensures proper earthing for sensitive equipment, and the wall mounting bracket provides a secure installation. The passive ventilation design can be upgraded with an optional fan unit for active cooling.
