EFB Elektronik BA71921.24 lasbox LC OS2 24 pigtails / 12 koppelingen 1U uittrekbare lade

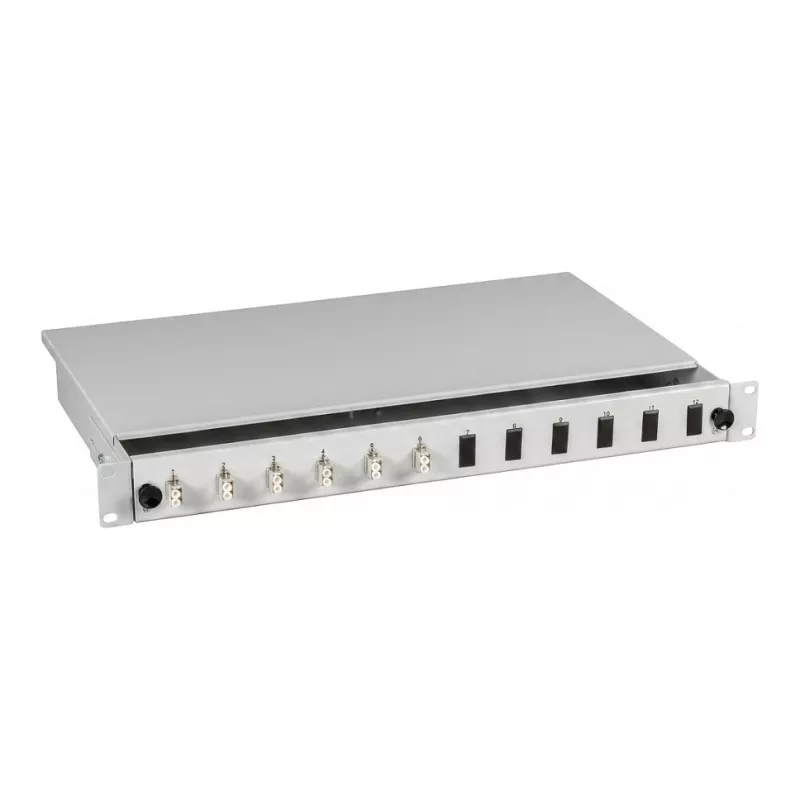

The EFB Elektronik BA71921.24 is a high-quality 19-inch rack-mount splice box designed for single-mode OS2 fiber optic networks. This 1U pull-out drawer provides convenient access for splicing and patching, featuring 24 pre-assembled LC duplex pigtails and 12 LC duplex adapters. Ideal for data centers, telecom rooms, and FTTH applications, it ensures reliable fiber management and protection.

Advantages

Space-saving 1U design with pull-out drawer for easy maintenance. Pre-terminated pigtails reduce installation time. Compatible with OS2 single-mode fibers (G.657.A1/A2, G.652.D). Robust steel housing with powder coating for durability.

Suitable for

• Data center fiber distribution
• Telecommunications network splicing
• FTTH termination points
• 19-inch rack installations

Key specifications

• Housing: 19-inch rack mount, 1U, pull-out drawer
• Fiber type: Single-mode OS2 (9/125 µm)
• Pigtails: 24 x LC duplex, pre-assembled
• Adapters: 12 x LC duplex
• Total fiber capacity: 24 fibers
• Material: Steel, powder-coated, light grey (RAL 7035)
• Cable entry: 4x M20/M25 rear ports
• Splice trays: 2 included (each for 12 splices)
• Protection rating: IP20

Recommendations

For optimal performance, use with OS2 patch cables and ensure proper cable management. Suitable for high-density environments where space is limited.
