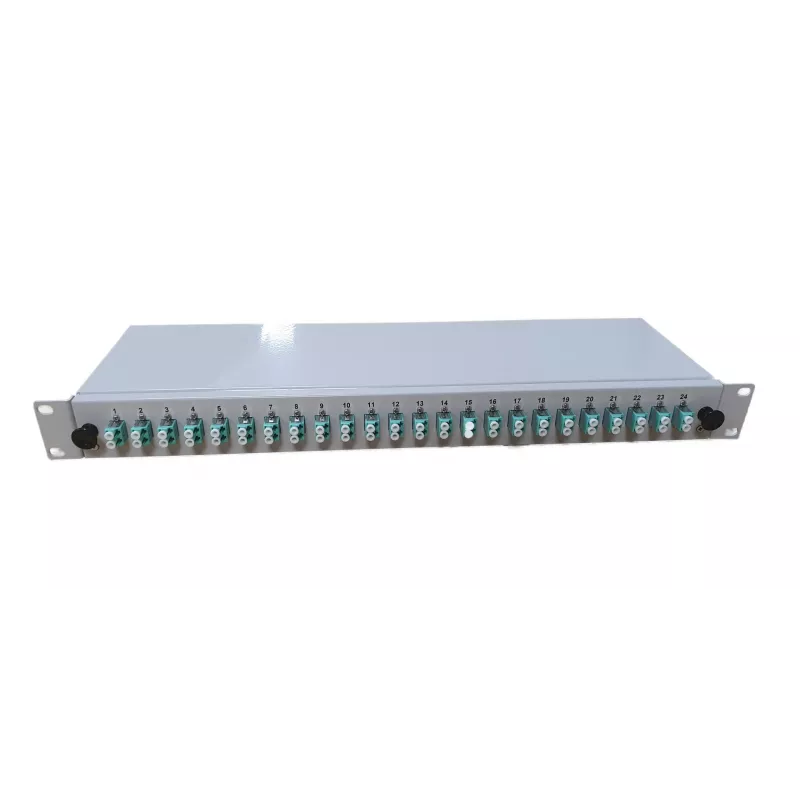

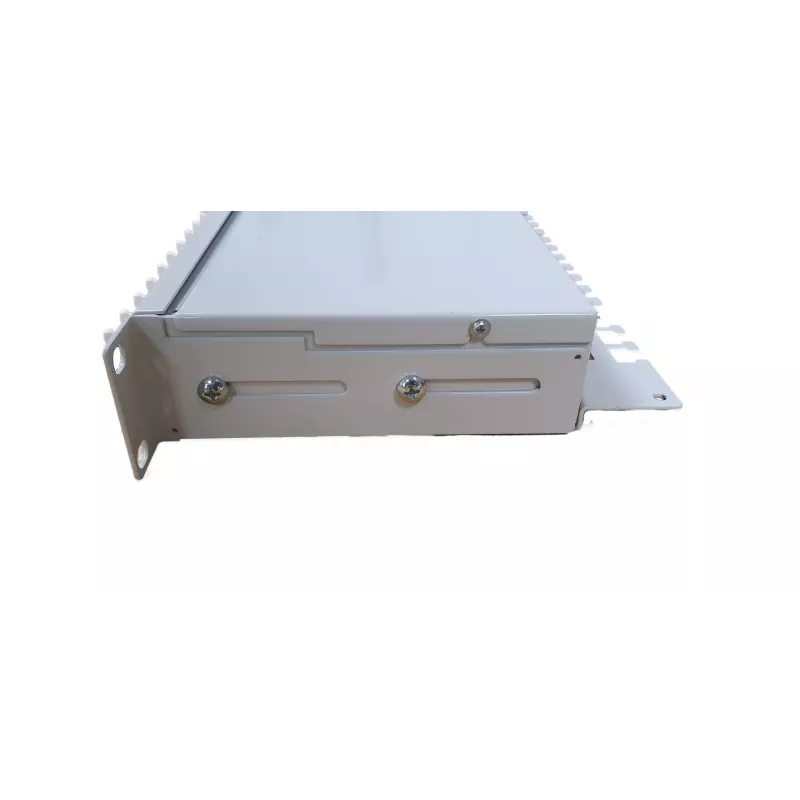

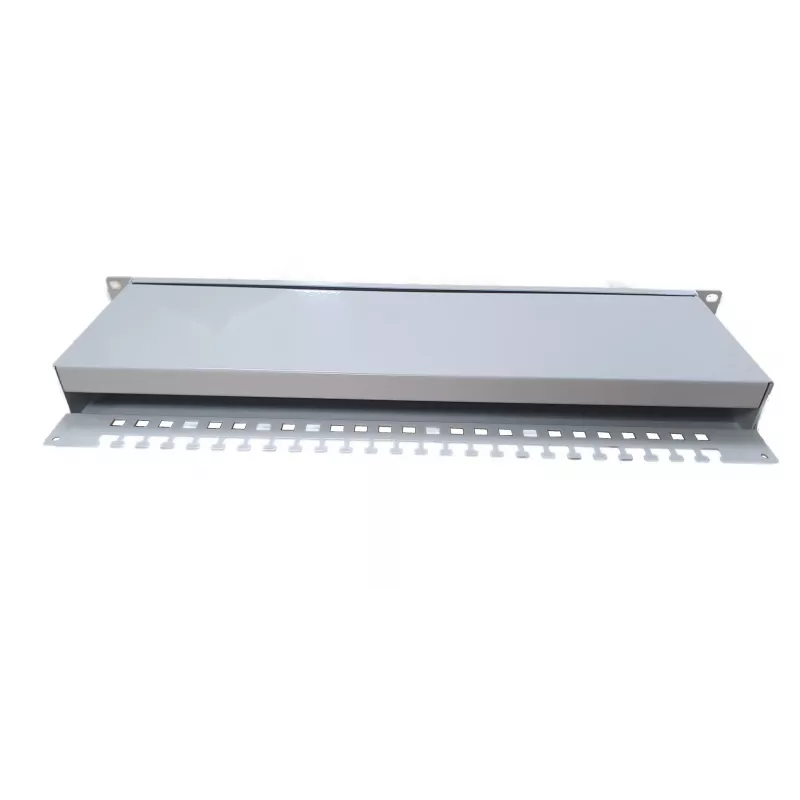

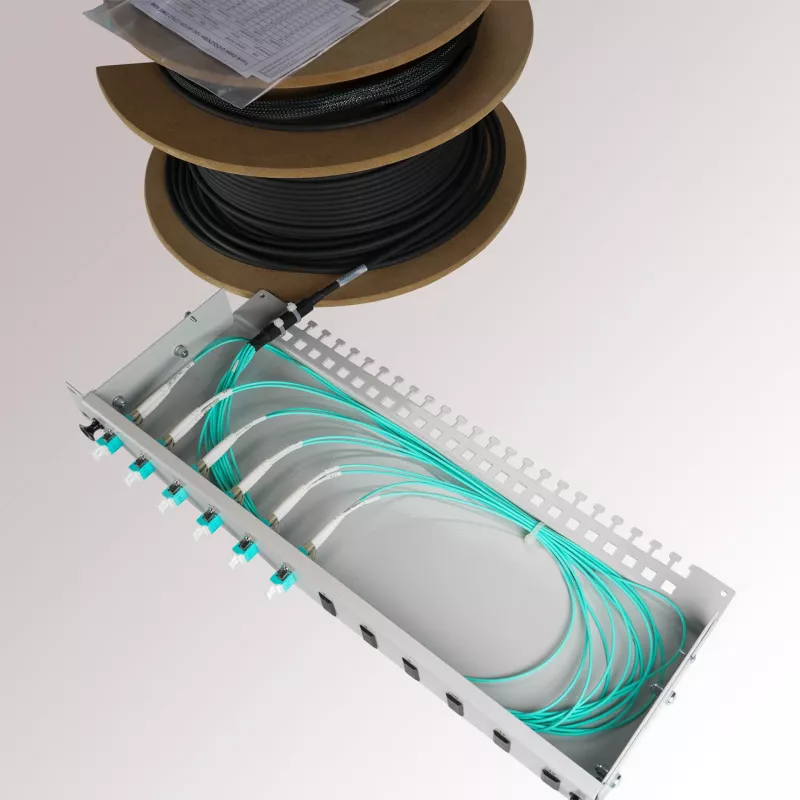

EFB Elektronik deels bezette breakout-box met 24 LC-duplex koppelingen OM3

The EFB Elektronik Partially Equipped Breakout Box with 24 LC-Duplex Couplers OM3 (B65901.24OM3) is a high-quality fiber optic distribution solution designed for structured cabling environments. This breakout box provides reliable connectivity and organization for multimode OM3 fiber networks, ensuring optimal performance for data centers, telecommunications rooms, and enterprise networks.

Advantages

This breakout box offers exceptional flexibility and ease of installation. The partially equipped configuration allows for custom patching while the included splice trays support up to 48 splices. The robust steel housing with light grey (RAL 7035) finish ensures durability and a professional appearance. Wall-mountable design saves space and simplifies cable management.

Suitable for

• Data centers requiring high-density fiber termination
• Telecommunications rooms for structured cabling
• Enterprise networks needing reliable OM3 connectivity
• Indoor fiber optic distribution points

Key specifications

• Product Type: Fiber Optic Breakout Box
• Configuration: Partially Equipped
• Fiber Optic Mode: Multimode
• Fiber Optic Class: OM3
• Connector Type: LC-Duplex
• Number of Ports: 24
• Housing Material: Steel
• Housing Color: Light Grey (RAL 7035)
• Mounting Type: Wall Mount
• Cable Entry Points: 2x PG16 Glands
• Splice Tray Included: Yes (2x)
• Max Splice Capacity: 48 (2x 24-fiber trays)
• Application Environment: Indoor
• Ingress Protection (IP) Rating: IP20
• Dimensions (HxWxD): 250 x 250 x 60 mm
• Operating Temperature: -10°C to +60°C
• Standard Compliance: RoHS, REACH
• Manufacturer: EFB Elektronik
• EAN: 4049759262235
• Model Number: B65901.24OM3

Recommendations

For optimal performance, use with OM3 patch cables and ensure proper cable management. This breakout box is ideal for consolidating fiber connections in a central location.
