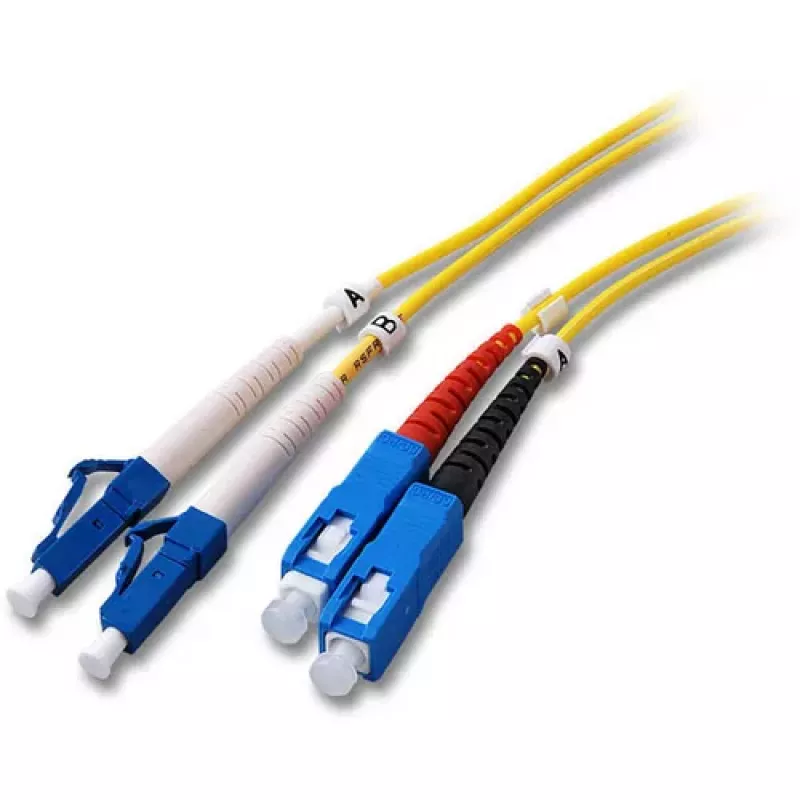

EFB Elektronik Duplex Jumper LC-SC 9/125µm OS2 LSZH Geel 2,0mm 10m

The EFB Elektronik Duplex Jumper LC-SC is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With a 9/125µm core/cladding and OS2 standard, it ensures low signal loss and high bandwidth over long distances. The cable features LC/UPC to SC/UPC connectors, a durable LSZH (Low Smoke Zero Halogen) jacket in yellow, and a 2.0mm diameter for flexibility and space-saving installation. Ideal for data centers, telecommunications, LAN, and FTTx applications.

Advantages

This duplex jumper offers exceptional optical performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH jacket provides enhanced safety by emitting low smoke and no toxic halogen in case of fire, making it suitable for confined spaces. The yellow color ensures easy identification of single-mode cables in dense cabling environments.

Suitable for

• Data centers requiring high-speed, reliable fiber connections
• Telecommunications networks for long-haul transmission
• Local Area Networks (LAN) with fiber backbone
• FTTx (Fiber to the x) deployments

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Type: Single-mode (9/125µm)
• Optical Fiber Standard: OS2
• Connector A: LC/UPC
• Connector B: SC/UPC
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Cable Length: 10 m
• Number of Fibers: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Use appropriate cable management to maintain bend radius and avoid signal degradation.
