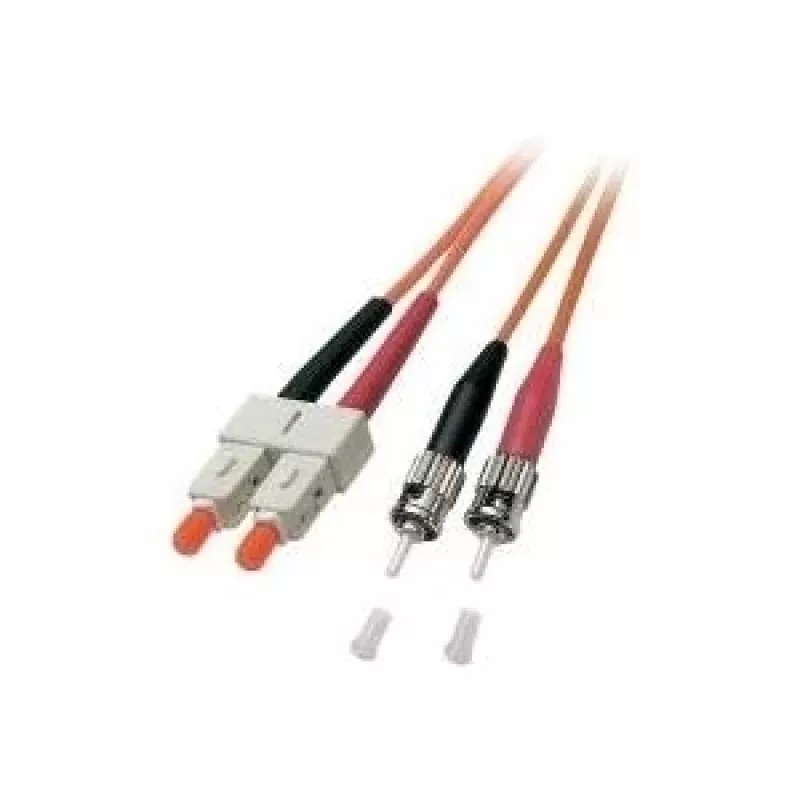

EFB Elektronik duplex jumper SC-ST 62.5/125 µm OM1 LSZH oranje 3,0 mm 2 m

The EFB Elektronik Duplex Jumper SC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a core/cladding diameter of 62.5/125 µm and OM1 fiber standard, this cable ensures optimal performance for short to medium distance applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the orange color and 3.0 mm diameter offer easy identification and flexibility.

Advantages

This duplex jumper features SC to ST connectors, making it ideal for connecting network devices with different interface types. The 2-meter length provides convenient reach without excess cable clutter. The LSZH jacket reduces toxic smoke emissions in case of fire, making it suitable for use in public buildings, data centers, and other sensitive environments. The cable meets RoHS and CE compliance standards, ensuring environmental and safety regulations are met.

Suitable for

• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Data centers
• Telecommunication networks
• Fiber optic patch panels and equipment connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Fiber Standard: OM1
• Core/Cladding Diameter: 62.5/125 µm
• Connector Type A: SC
• Connector Type B: ST
• Cable Configuration: Duplex
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Attenuation at 850nm: < 3.5 dB/km
• Attenuation at 1300nm: < 1.5 dB/km
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 20 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 30 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and horizontal connections within data centers. Pair with appropriate patch panels and transceivers for best results.
