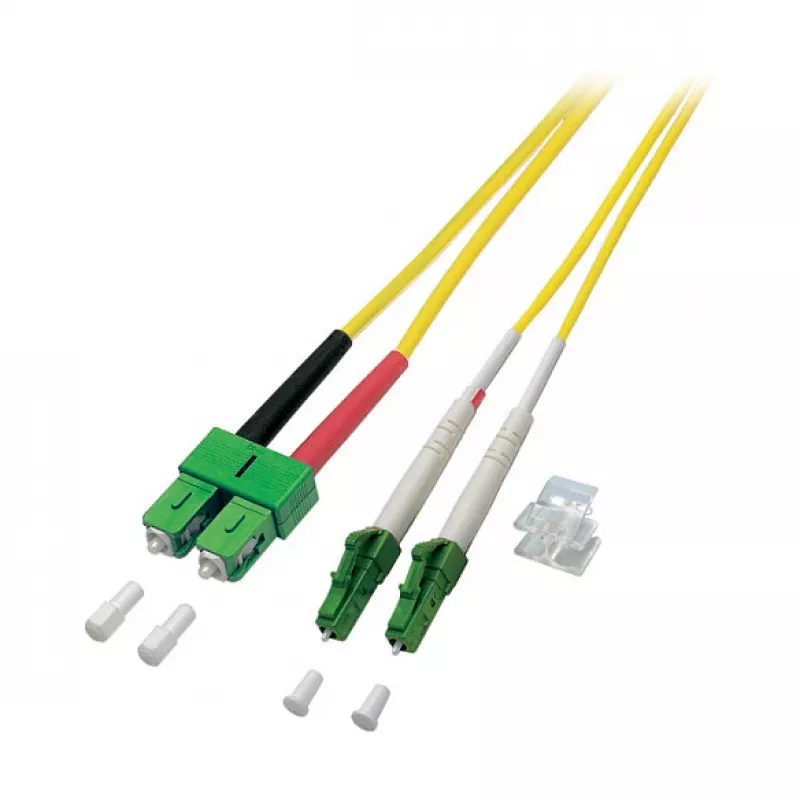

EFB duplex patchkabel LC/APC-SC/APC OS2 G652D 7,5m LSZH 2mm geel

The EFB Duplex Patch Cable LC/APC-SC/APC OS2 G652D 7.5m LSZH 2mm Yellow is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, LAN, FTTx, and telecommunications networks. Manufactured by EFB Elektronik, this cable features duplex LC/APC to SC/APC connectors with angled physical contact (APC) polish for low insertion loss and high return loss, ensuring optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by minimizing toxic fumes and smoke in case of fire. The 2mm diameter per fiber provides flexibility while maintaining durability. Compliant with RoHS and REACH standards, it meets environmental and safety regulations.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments
• Telecommunications infrastructure
• Single-mode fiber optic connections requiring APC polish

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Class: OS2 (ITU-T G.652.D)
• Number of Fibers: Duplex (2 Fibers)
• Connector A: LC/APC
• Connector B: SC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 7.5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Outer Diameter: 2 mm (per individual fiber)
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 60 dB
• Wavelengths Supported: 1310nm, 1550nm
• Attenuation @ 1310nm: ≤ 0.4 dB/km
• Attenuation @ 1550nm: ≤ 0.3 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is ideal for high-speed single-mode applications requiring low loss and high return loss.
