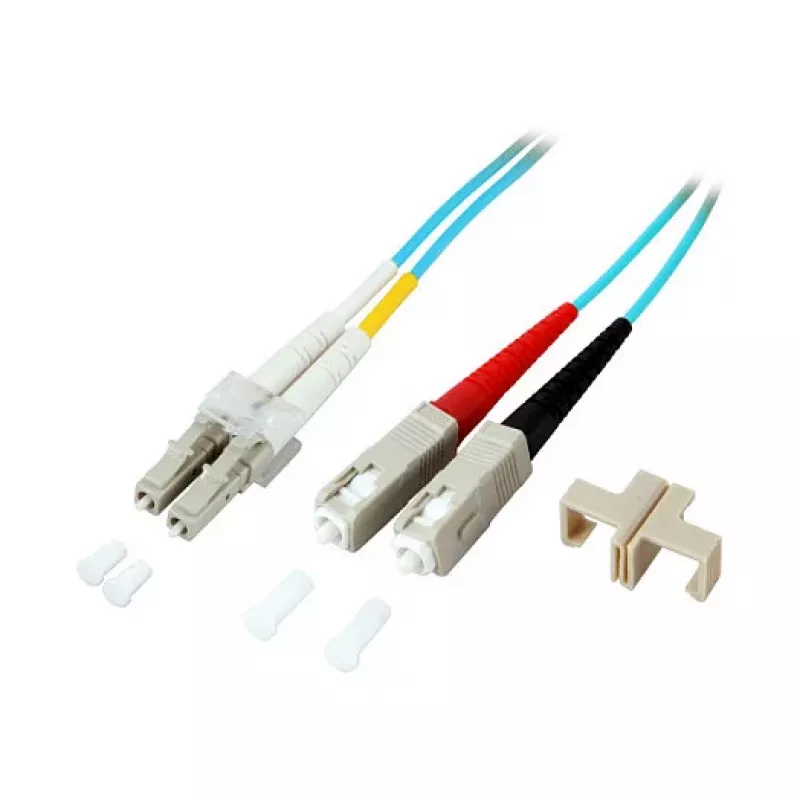

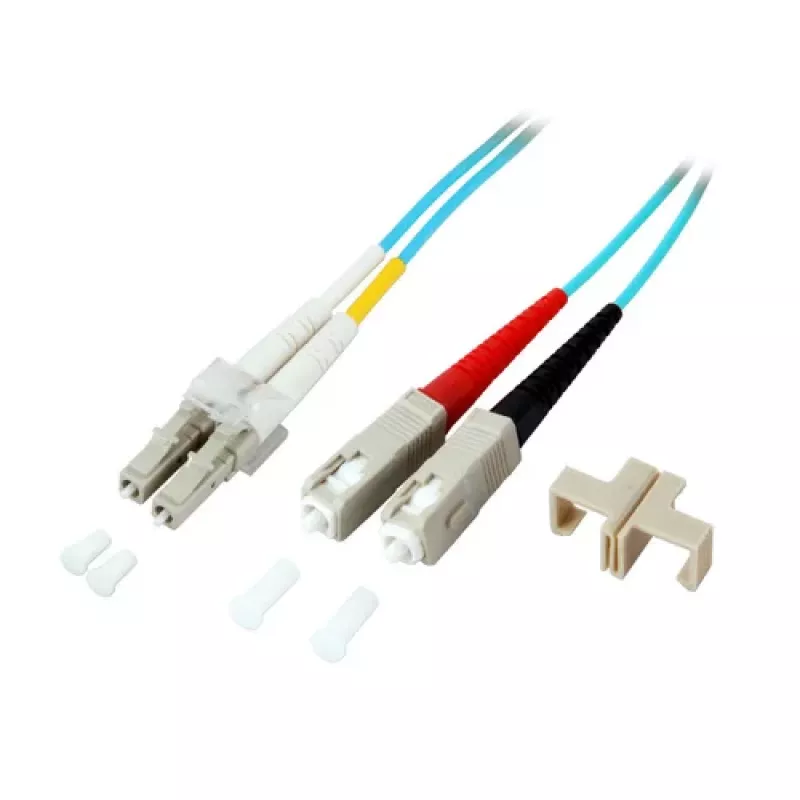

EFB duplex patchkabel LC-SC OM3 20m LSZH 2mm aqua

The EFB Duplex Patch Cable LC-SC OM3 20m LSZH 2mm Aqua is a high-performance fiber optic jumper designed for reliable data transmission in demanding network environments. Manufactured by EFB Elektronik, this cable ensures low insertion loss and high return loss, making it ideal for backbone cabling, data centers, and high-speed LAN applications.

Advantages

Optimized for 10 Gigabit Ethernet and beyond, this OM3 multimode fiber cable supports high bandwidth over long distances. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, reducing toxic fumes in case of fire. The duplex configuration with LC to SC connectors provides flexibility for connecting different network devices.

Suitable for

• Data center interconnects
• High-speed local area networks (LAN)
• Telecommunications rooms
• Fiber-to-the-desk applications
• Backbone cabling in commercial buildings

Key specifications

• Fiber type: Multimode OM3 (50/125 µm)
• Connectors: LC to SC, duplex, UPC polish
• Length: 20 meters
• Jacket: LSZH, aqua color, 2.0 mm diameter
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 30 dB typical
• Attenuation: ≤ 3.0 dB/km @ 850nm, ≤ 1.0 dB/km @ 1300nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60793-2-10

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC interfaces. Pair with EFB patch panels and wall outlets for a complete structured cabling solution.
