EFB Electronics Duplex Jumper LC-LC 50/125 OM3 LSZH Aqua 2,0mm 1,5m

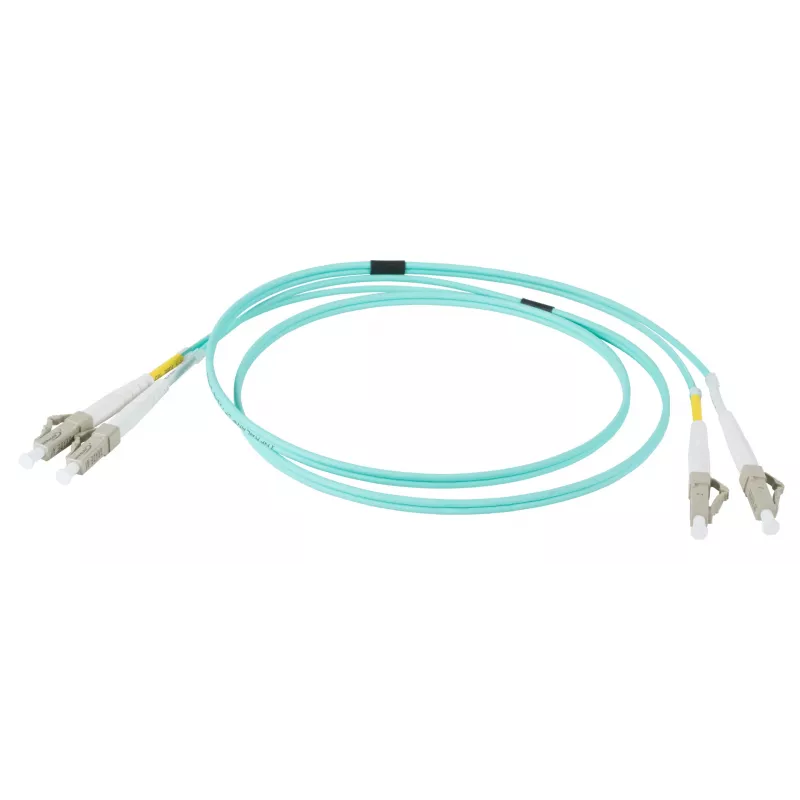

The EFB Electronics Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber, LC connectors, and a durable LSZH jacket, this 1.5m jumper ensures low insertion loss and high return loss, making it ideal for data centers, LANs, and SANs.

Advantages

Optimized for 10 Gb/s Ethernet over multimode fiber, this jumper features a 50/125 µm core/cladding and UPC polish for minimal signal loss. The aqua-colored LSZH jacket provides flame retardancy and low smoke emission, enhancing safety in confined spaces. Its duplex configuration supports bidirectional communication, and the 2.0mm sub-unit diameter offers flexibility and durability.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed backbone cabling

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode (OM3)
• Core/Cladding: 50/125 µm
• Connectors: LC to LC, Duplex
• Polish: UPC
• Length: 1.5 m
• Jacket: LSZH, Aqua, 2.0 mm diameter
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-2-10, IEC 61754-20, RoHS, REACH

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius. This jumper is an excellent choice for upgrading to 10 Gb/s networks.
